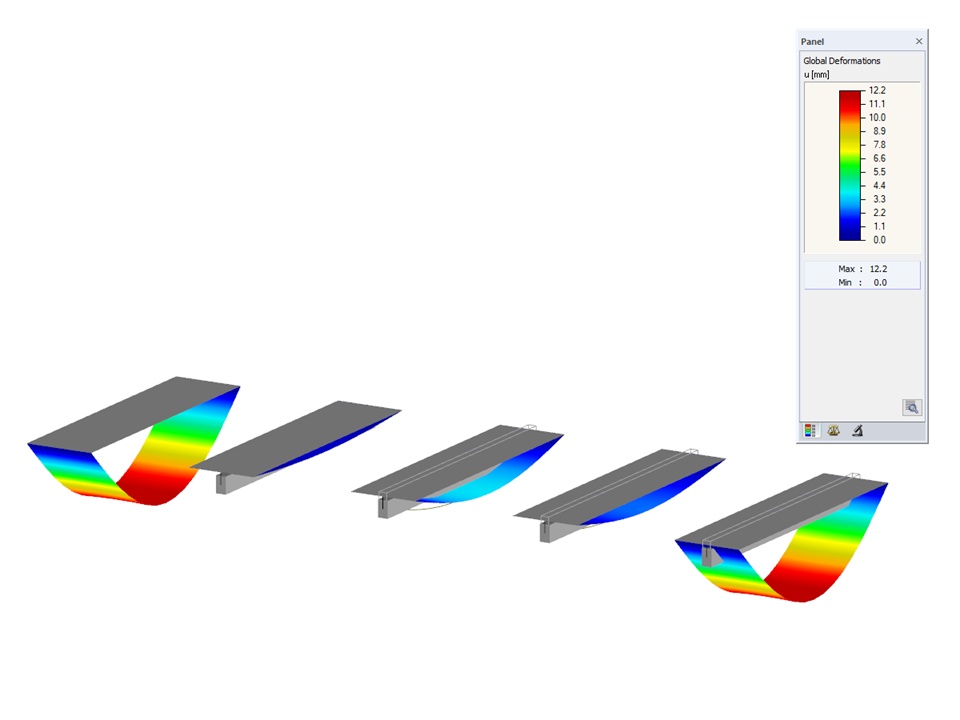

Slabs with Different Line Releases Between Ceiling and Downstand Beam
Number of Nodes | 34 |
Number of Lines | 27 |
Number of Members | 4 |
Number of Surfaces | 5 |
Number of Load Cases | 1 |
Total Weight | 52.000 tons |
Dimensions | 72.18 x 26.65 x 1.35 feet |
Program Version | 5.23.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
RFEM offers the following tables to display forces and deformations of hinges and releases:
- 4.45 Line Hinges - Deformations
- 4.46 Line Hinges - Forces
- 4.47 Member Hinges - Deformations
- 4.48 Member Hinges - Forces
- 4.49 Nodal Releases - Deformations
- 4.50 Nodal Releases - Forces
- 4.51 Line Releases - Deformations
- 4.52 Line Releases - Forces
The tables can be displayed in the prinout report. Moreover, the results in line hinges and line releases can be displayed graphically. It can be controlled by Project Navigator - Results.
