ArchBridge Final
Used in
3D Model
Specifications
| Number of Nodes | 38 |
| Number of Lines | 58 |
| Number of Members | 58 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 25 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 1 |
| Total Weight | 164.566 tons |
| Dimensions (Metric) | 60.000 x 8.941 x 8.000 m |
| Dimensions (Imperial) | 196.85 x 29.33 x 26.25 feet |
2024-03-09
002038

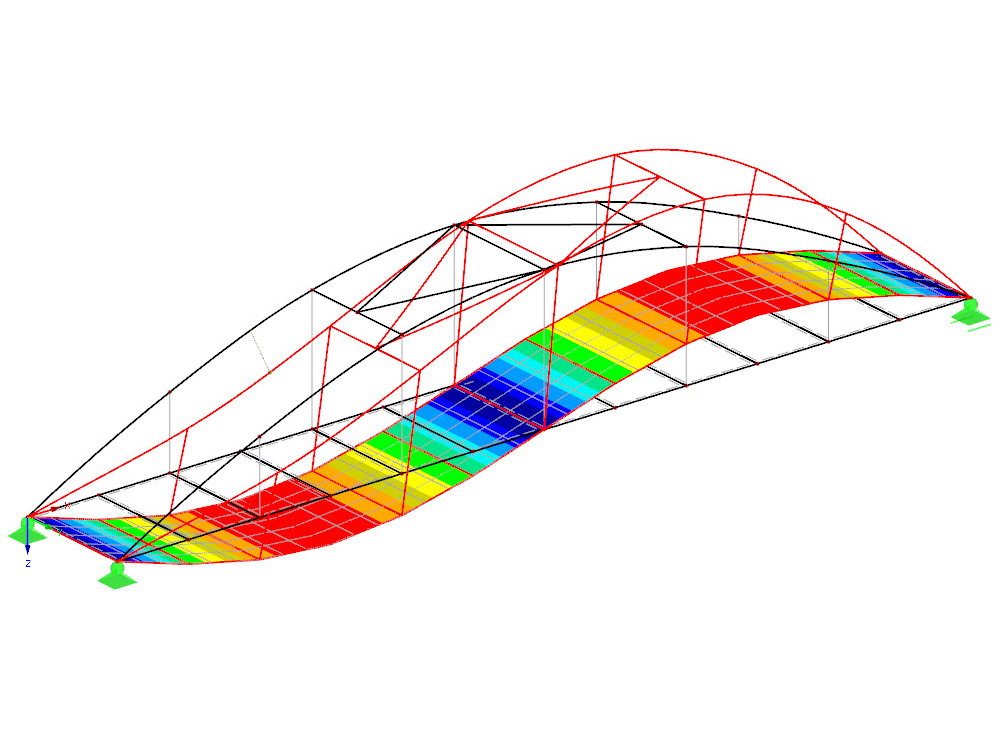

Time History Calculation with RF-/DYNAM Pro - Walking and Running over Pedestrian Bridge
3D Model
Specifications
| Number of Nodes | 38 |
| Number of Lines | 58 |
| Number of Members | 58 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 25 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 1 |
| Total Weight | 164.566 tons |
| Dimensions (Metric) | 60.000 x 8.941 x 8.000 m |
| Dimensions (Imperial) | 196.85 x 29.33 x 26.25 feet |
