The model presents an innovative arch bridge with a sophisticated cable structure, combining both traditional and modern bridge designs. The use of steel ensures high stability and longevity. Multiple references such as "ArchBridge final" emphasize the final design variant. The analysis includes essential structural elements and provides valuable insights into stress behavior. Ideal for simulating complex structures in experimental bridge construction.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

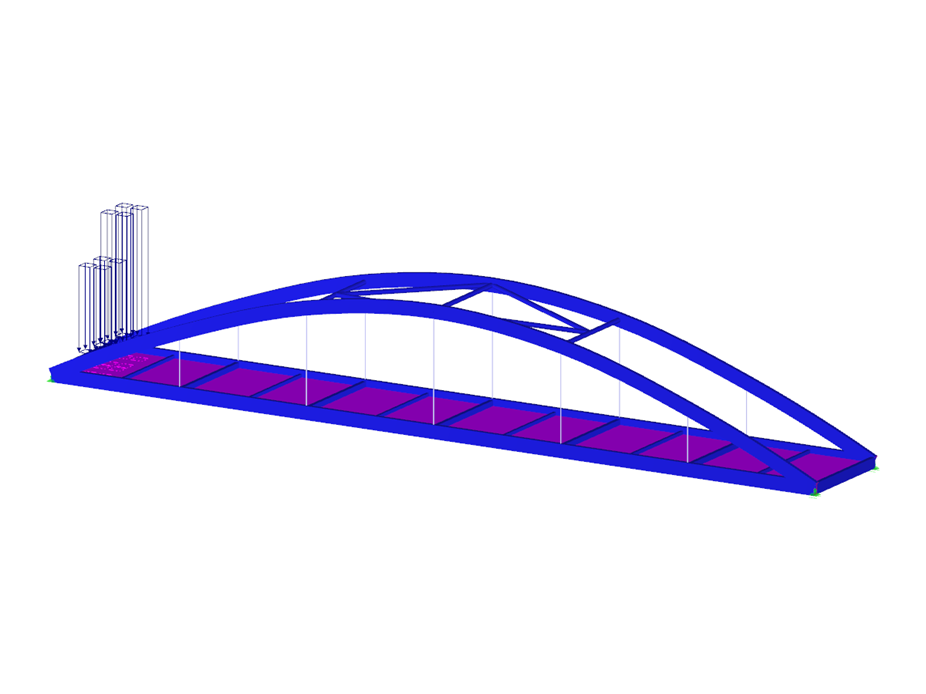

Arch Bridge with Cable Structure

Number of Nodes 38
Number of Lines 58
Number of Members 58
Number of Surfaces 12
Number of Load Cases 25
Number of Load Combinations 24
Number of Result Combinations 1
Total Weight 164,569 t
Dimensions (Metric) 60.400 x 8.400 x 8.700 m
Dimensions (Imperial) 198.16 x 27.56 x 28.54 feet
Program Version 5.04.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
