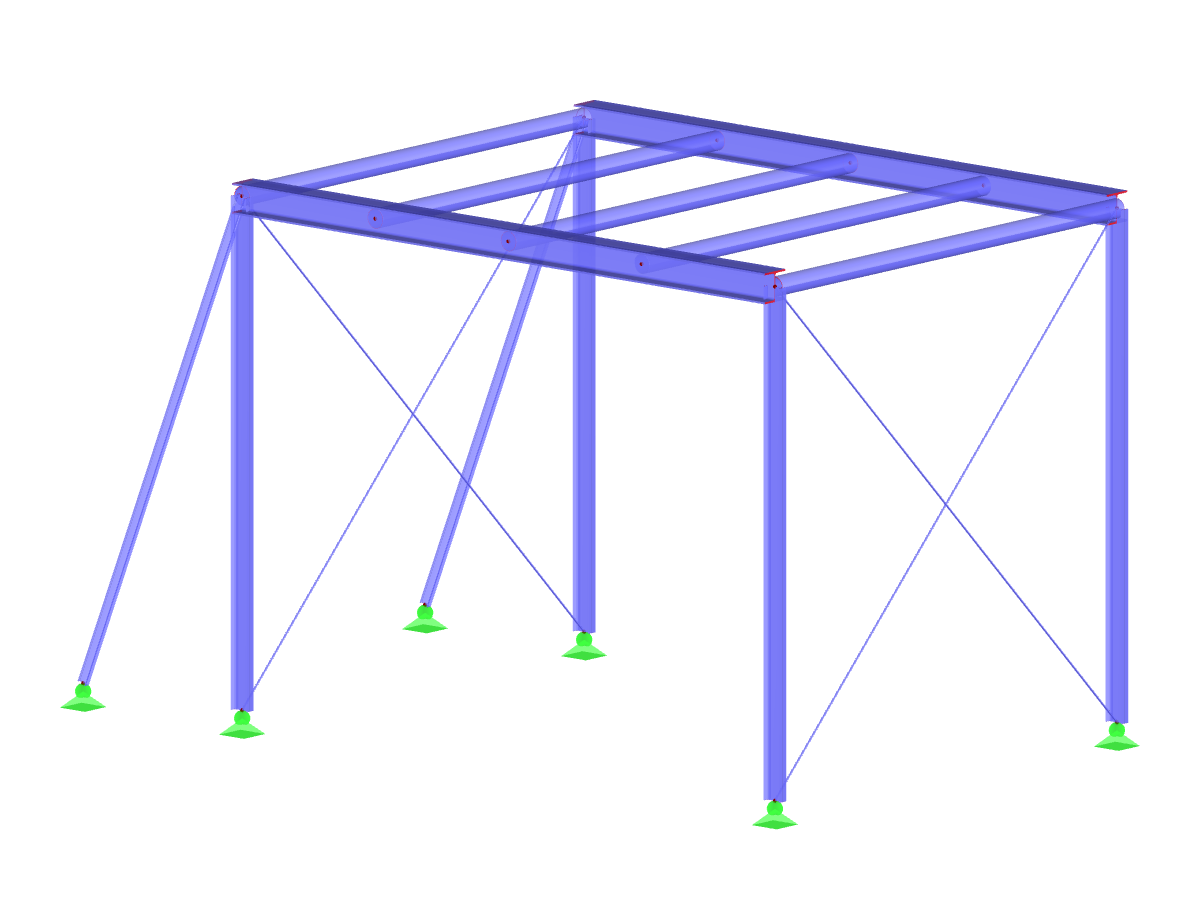

RFEM Model of 3D Steel Platform Consisting of Two-Hinged Frames and with Diagonal Stiffening
Steel Platform
Used in
3D Model
Specifications
| Number of Nodes | 16 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Load Cases | 2 |
| Total Weight | 2.753 tons |
| Dimensions (Metric) | 9.012 x 5.313 x 5.156 m |
| Dimensions (Imperial) | 29.57 x 17.43 x 16.92 feet |
| Program Version | 5.23.02 |
