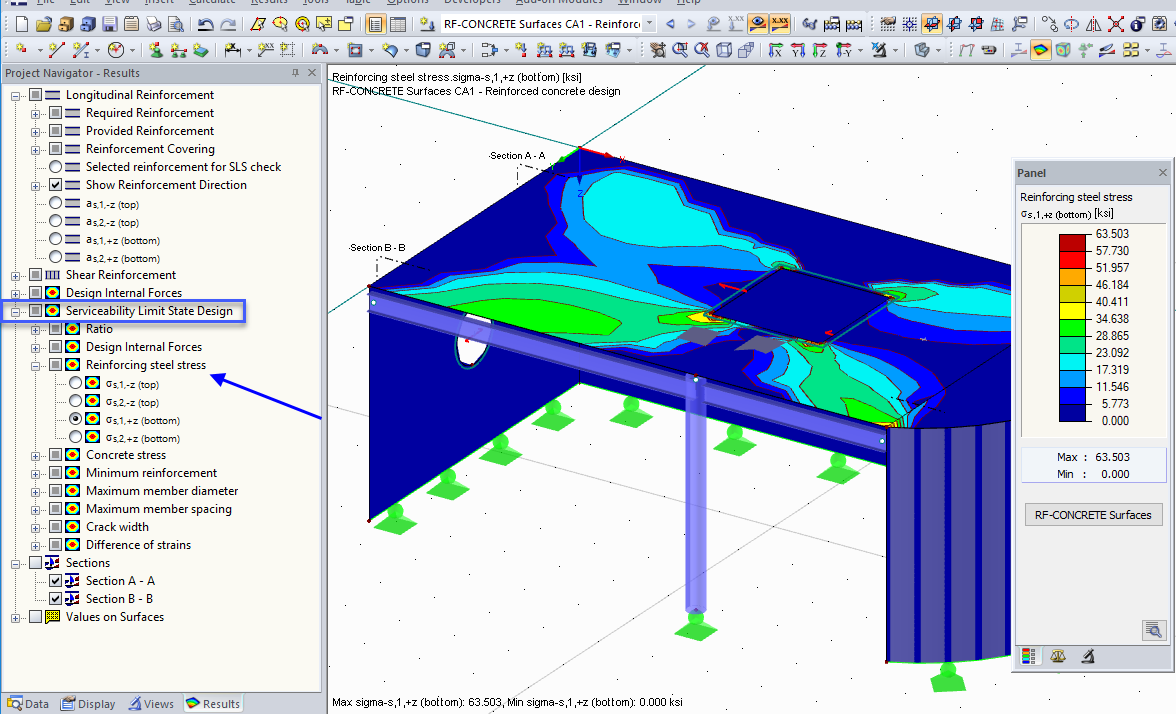

Displaying Steel Stresses Graphically
Used in
3D Model
Specifications
| Number of Nodes | 19 |
| Number of Lines | 20 |
| Number of Members | 3 |
| Number of Surfaces | 5 |
| Total Weight | 74.203 tons |
| Dimensions (Metric) | 12.517 x 8.035 x 6.035 m |
| Dimensions (Imperial) | 41.07 x 26.36 x 19.8 feet |
| Program Version | 5.23.02 |
