Where can I show steel stresses when designing a surface in RF‑CONCRETE?

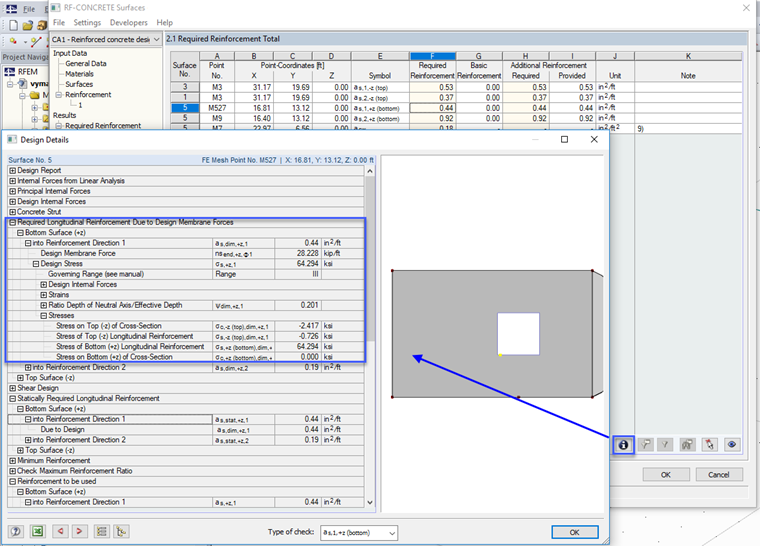

In RF-CONCRETE Surfaces, you can use the [Info] button to display the corresponding steel stresses for each design location for the ultimate limit state (see Figure 01). A graphical display is not possible here.

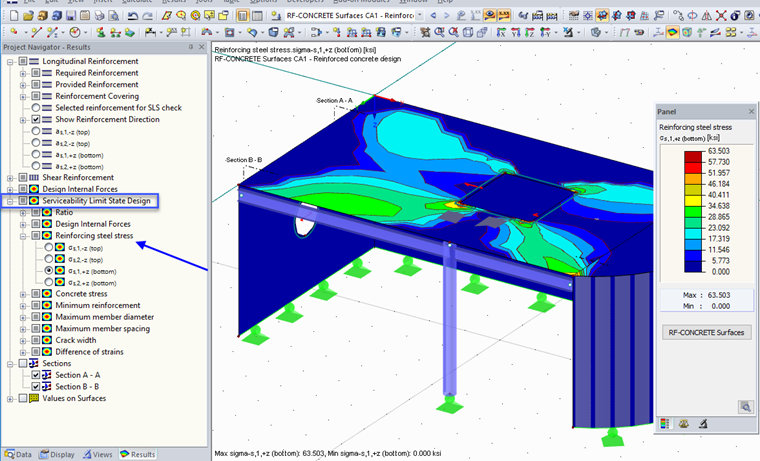

For the serviceability limit state design, it is possible to display the steel stress graphically as the corresponding design can be performed (see Figure 02).


steel stress reinforcing steel stress evaluation stresses
