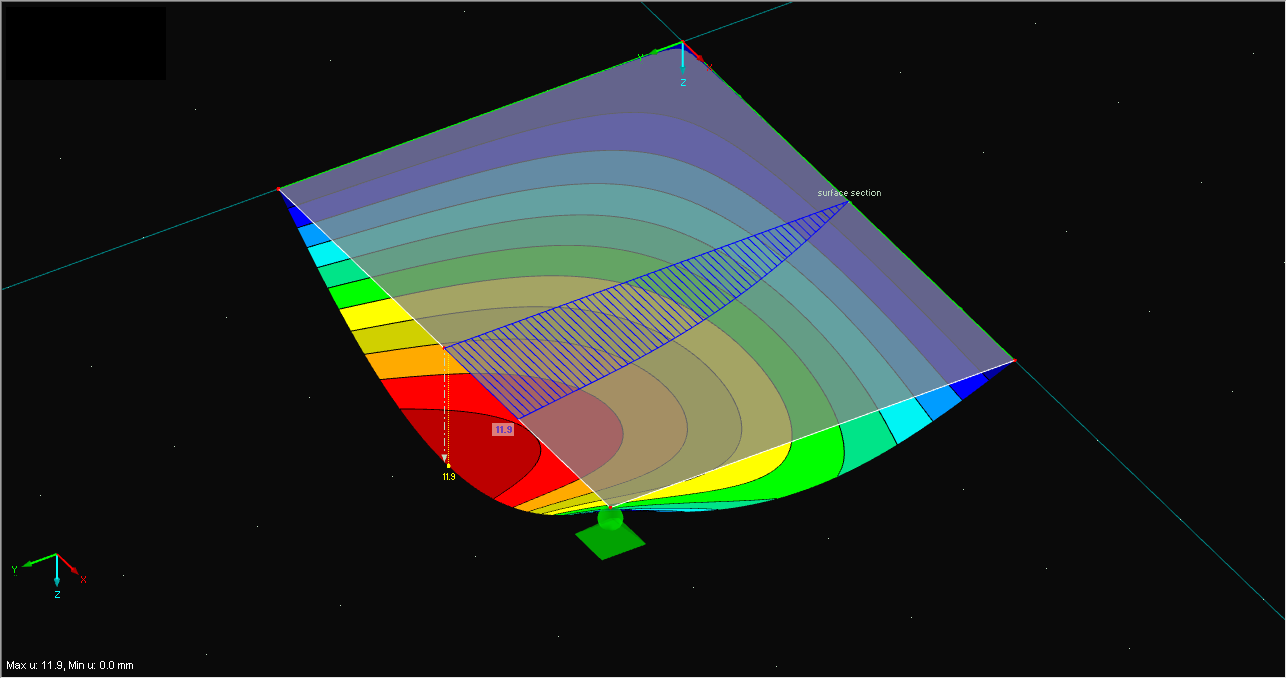

Creating Surface Section with Result Display in xy Plane
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 44 |
| Number of Members | 1 |
| Number of Surfaces | 15 |
| Number of Solids | 1 |
| Total Weight | 4.099 tons |
| Dimensions (Metric) | 6.000 x 5.000 x 0.311 m |
| Dimensions (Imperial) | 19.69 x 16.4 x 1.02 feet |
| Program Version | 5.26.02 |
