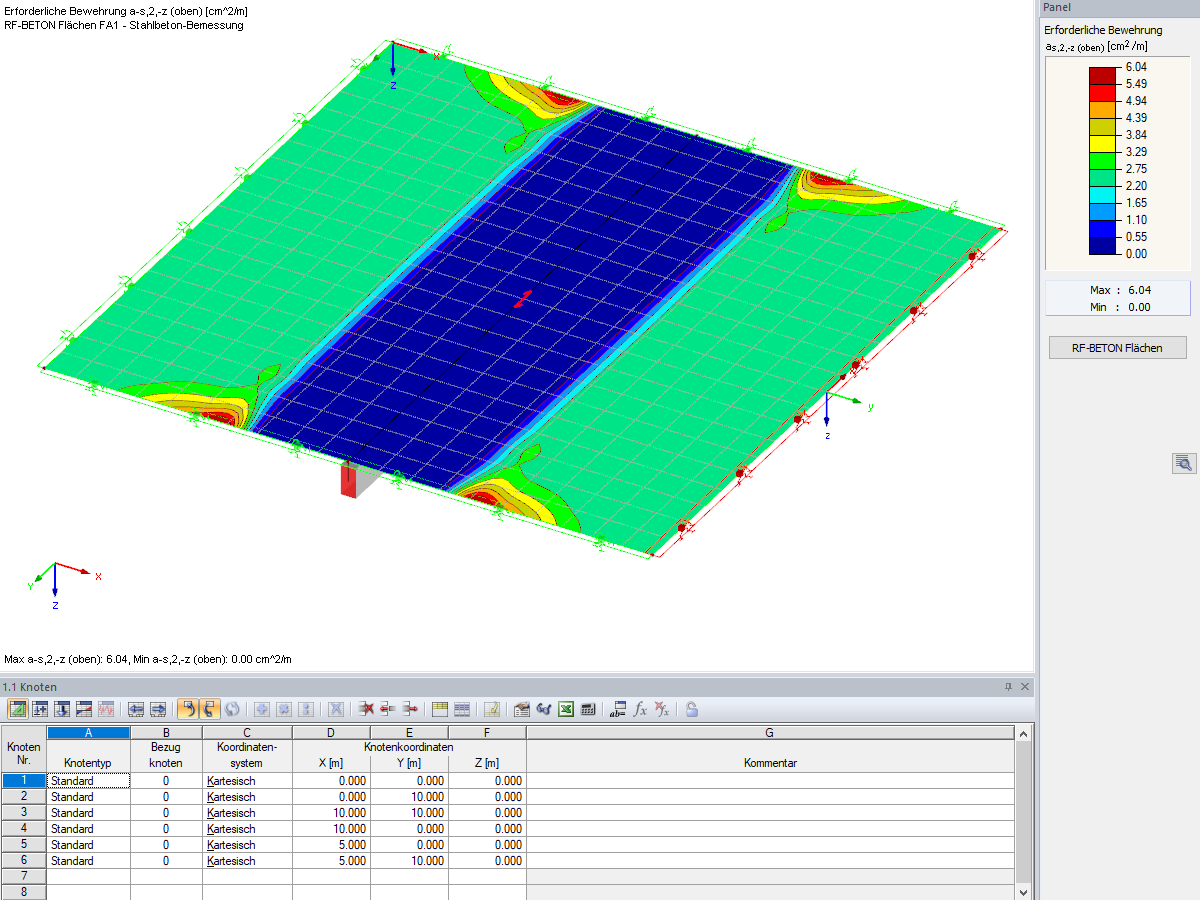

Result Diagram Without Component of Rib Internal Forces
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 7 |
| Number of Members | 1 |
| Number of Surfaces | 1 |
| Number of Load Cases | 2 |
| Total Weight | 16.500 t |
| Dimensions (Metric) | 6.000 x 5.000 x 0.350 m |
| Dimensions (Imperial) | 19.69 x 16.4 x 1.15 feet |
| Program Version | 5.25.01 |
