Do I have to add the reinforcement for ribs from RF‑CONCRETE Members and RF‑CONCRETE Surfaces?

Answer

It depends.

RF-CONCRETE Surfaces provides the option to neglect the component of internal forces that are considered in the rib design for the ULS and SLS (analytical) calculation.

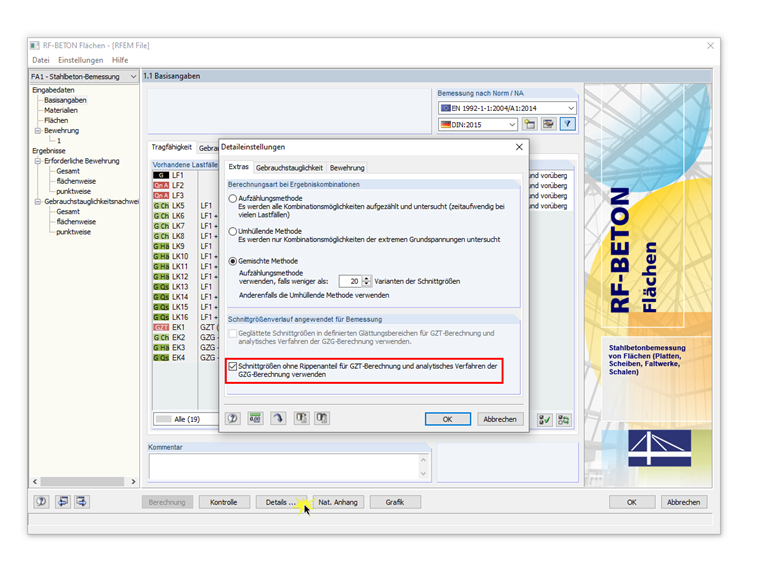

Figure 01 - Setting in Details of RF-CONCRETE Surfaces

If activating this option, you can also see this in the diagram of the required reinforcement. See the following diagram of as,2,-z(top) for the downstand beam:

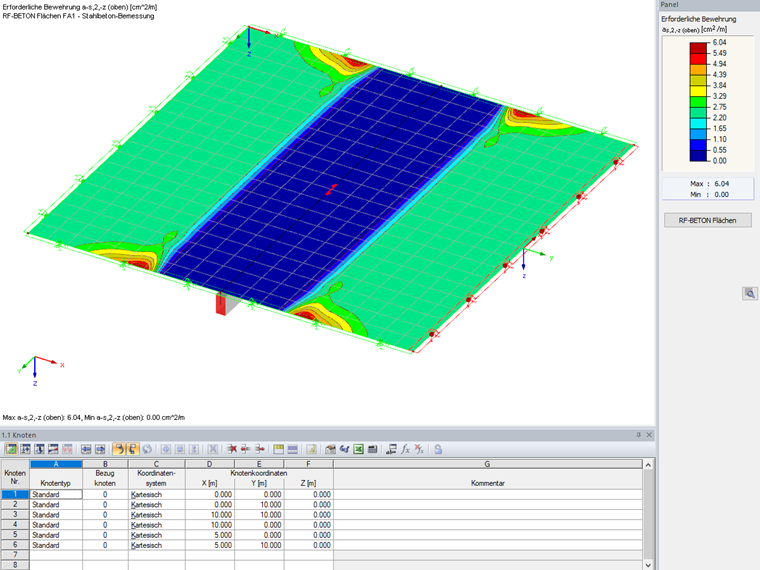

Figure 02 - Result Diagram Without Component of Rib Internal Forces

In this case, it would be necessary to add the results from RF‑CONCRETE Surfaces and the results from RF‑CONCRETE Members because the rib component of the surface internal forces in the direction of the downstand beam was not considered in RF‑CONCRETE Surfaces.

If not activating the option, you would have to consider the maximum from the design in RF‑CONCRETE Surface and RF‑CONCRETE Members for the reinforcement drawing.
