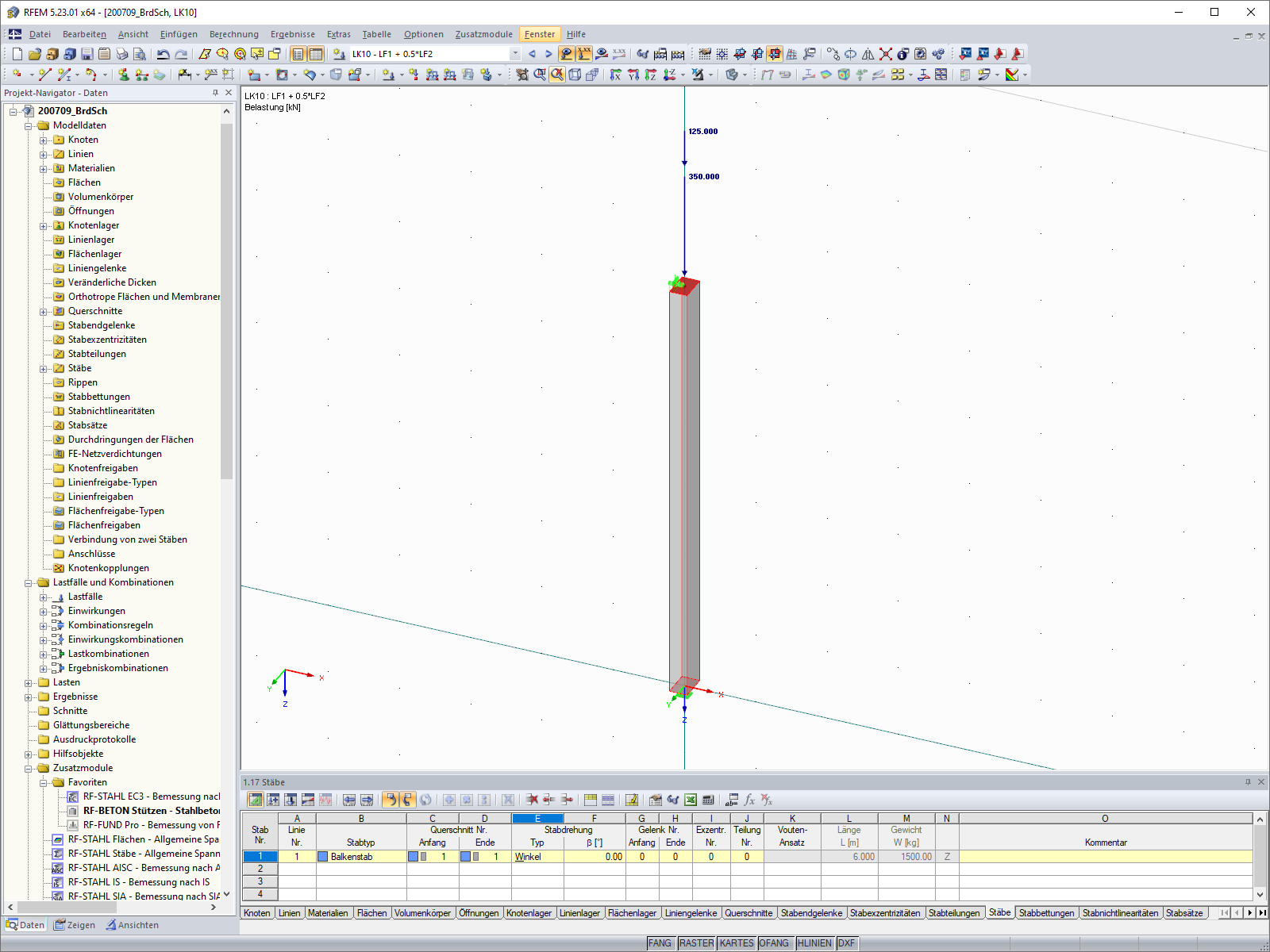

Structural System and Loading
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.023 tons |
| Dimensions (Metric) | 0.000 x 2.438 x 0.000 m |
| Dimensions (Imperial) | 0 x 8 x 0 feet |

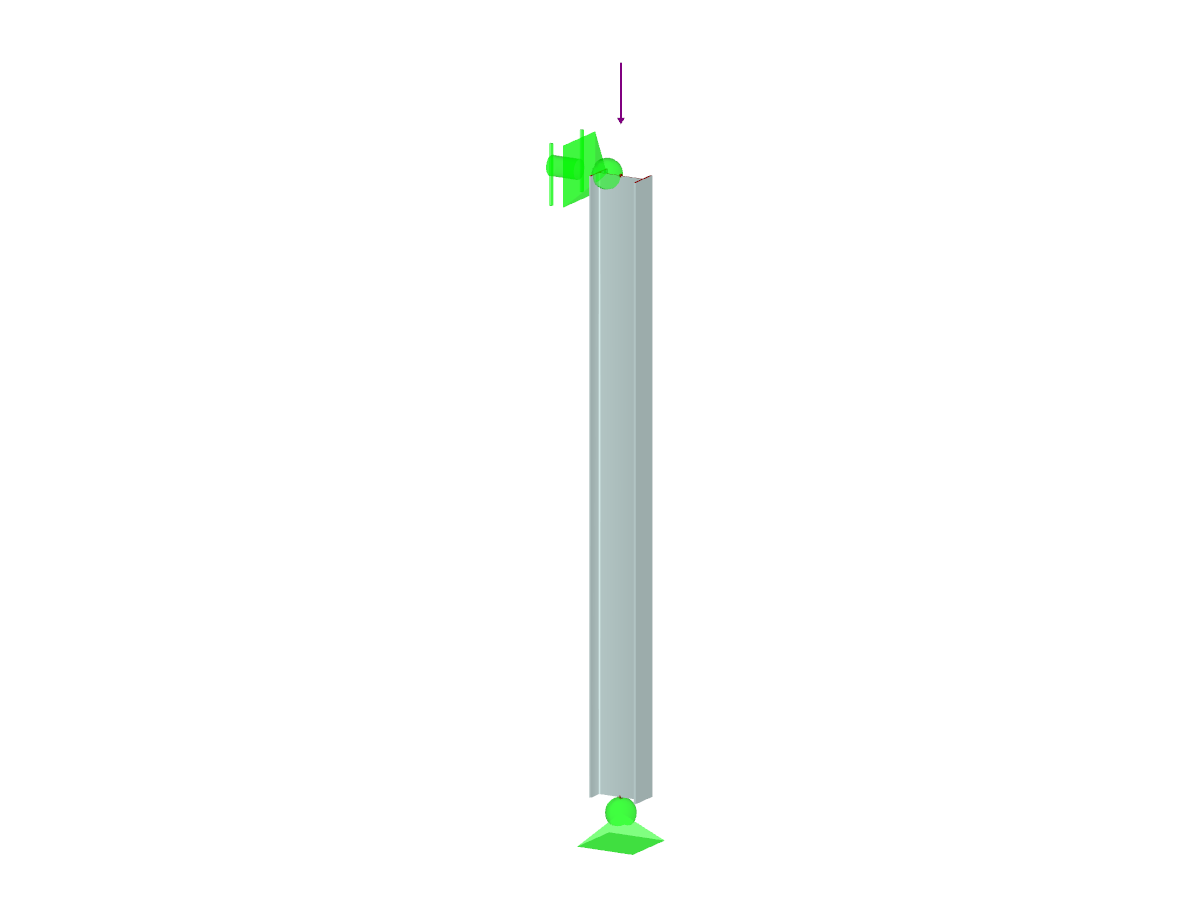

Beam in Axial Compression According to ADM
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.023 tons |
| Dimensions (Metric) | 0.122 x 0.122 x 2.560 m |
| Dimensions (Imperial) | 0.4 x 0.4 x 8.4 feet |
| Program Version | 5.18.00 |
