2024-05-30
020458
Steel Frame Structure
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.226 tons |
| Dimensions (Metric) | 8.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 13.12 x 0 feet |

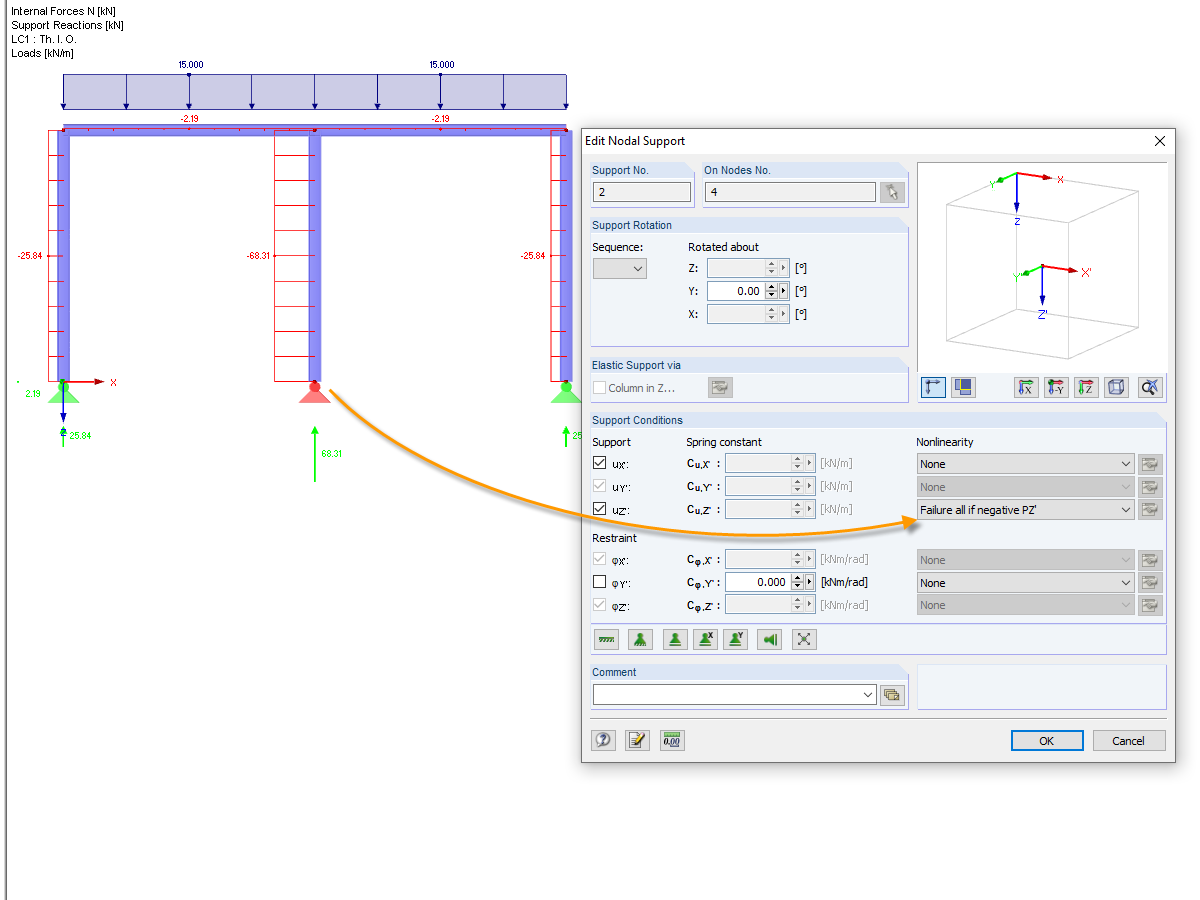

"Failure all if PZ' Negative" Nonlinear Support
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.226 tons |
| Dimensions (Metric) | 8.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 13.12 x 0 feet |
2024-05-30
020457

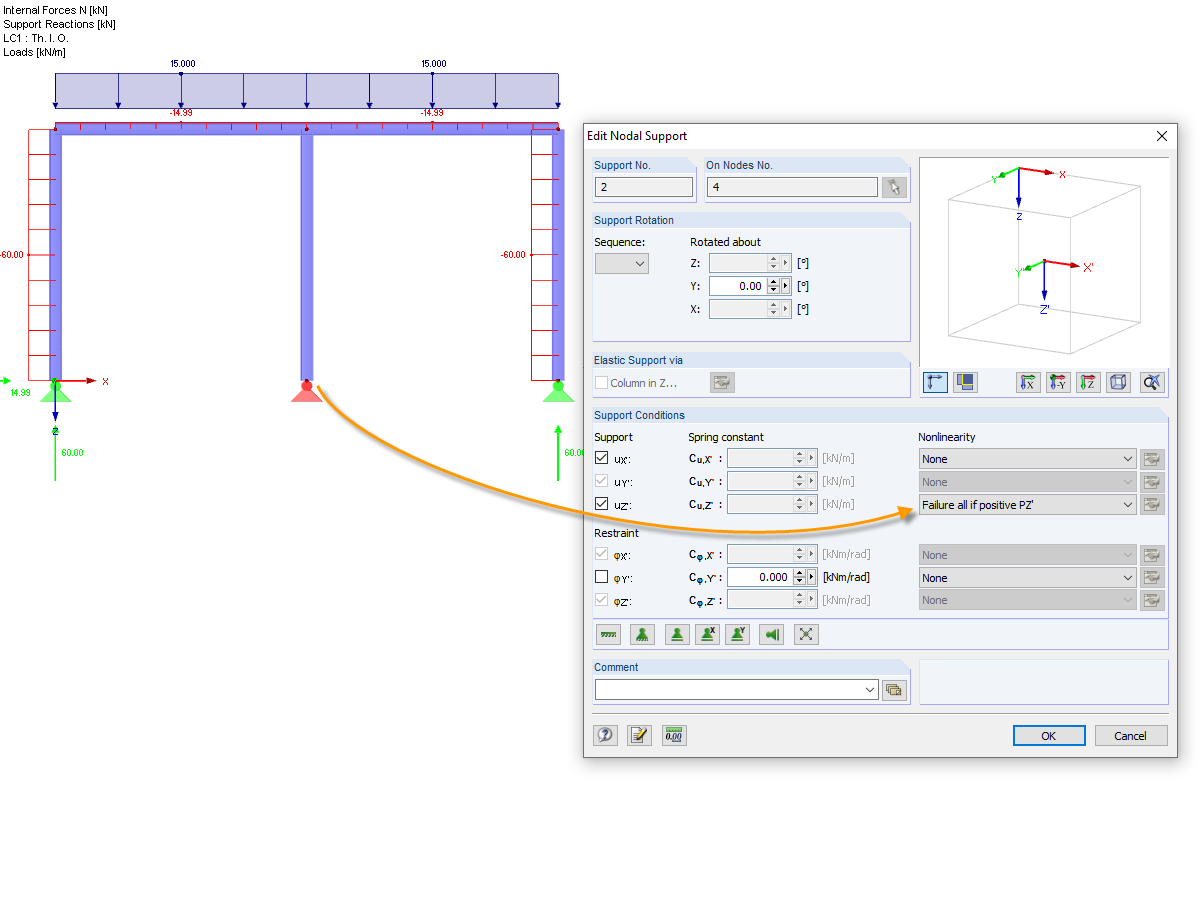

Nonlinear Support 'Failure all, if PZ' Positive'
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.226 tons |
| Dimensions (Metric) | 8.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 13.12 x 0 feet |
