2024-05-30
020532
Insulating Glass Pane with Loading on both Sides
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Surfaces | 1 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Total Weight | 1.350 tons |
| Dimensions (Metric) | 1.500 x 0.000 x 2.000 m |
| Dimensions (Imperial) | 4.92 x 0 x 6.56 feet |
| Program Version | 5.25.01 |
2024-05-30
010277

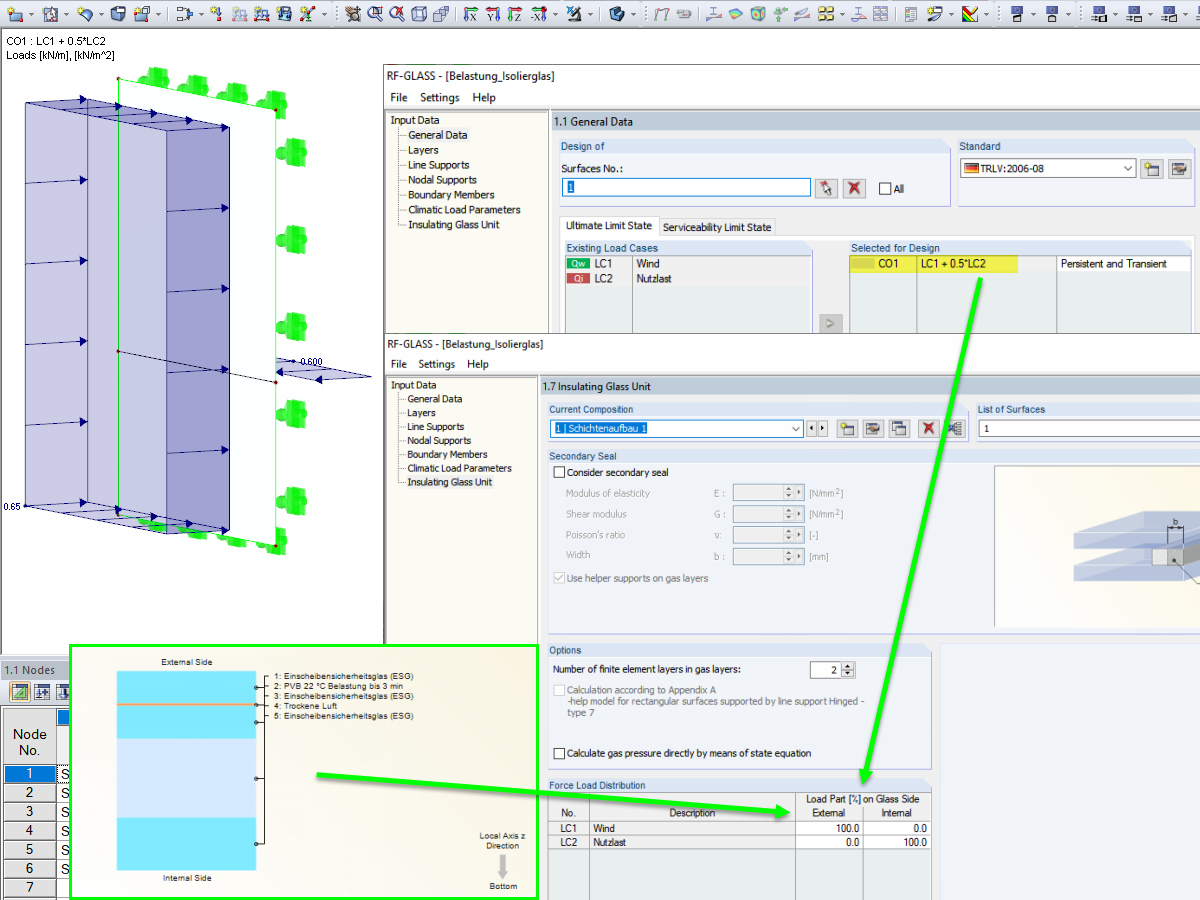

Force Load Distribution of Individual Load Cases on Different Insulating Glass Layers
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Surfaces | 1 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Total Weight | 1.350 tons |
| Dimensions (Metric) | 1.500 x 0.000 x 2.000 m |
| Dimensions (Imperial) | 4.92 x 0 x 6.56 feet |
| Program Version | 5.25.01 |
