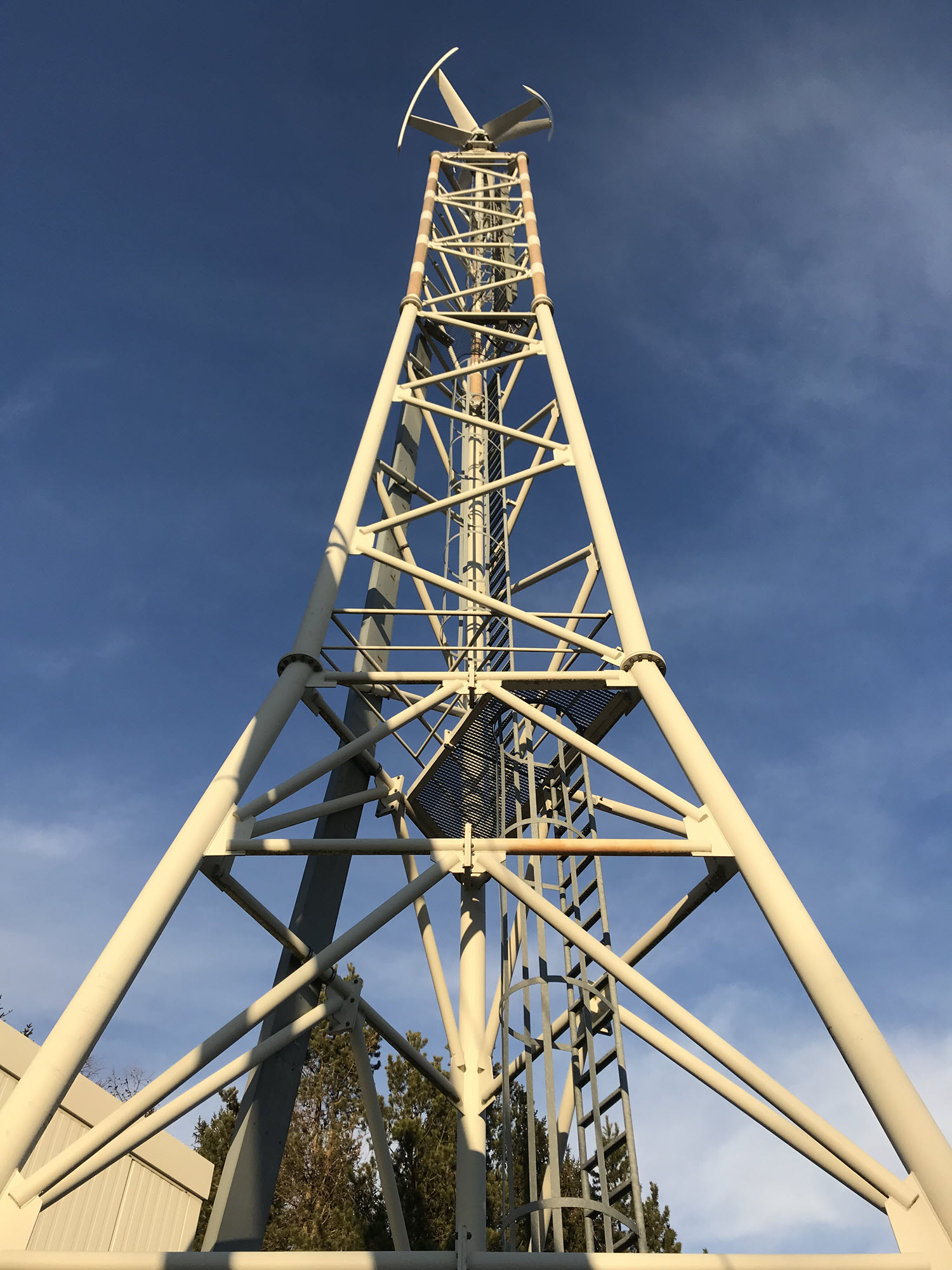

Wind power plant with truss segment made of fiber-reinforced molded timber pipes (© Tom-Egmont Werner/STM)
2024-05-30
021271
Wind power plant with truss segment made of fiber-reinforced molded timber pipes (© Tom-Egmont Werner/STM)
2024-05-30
021272

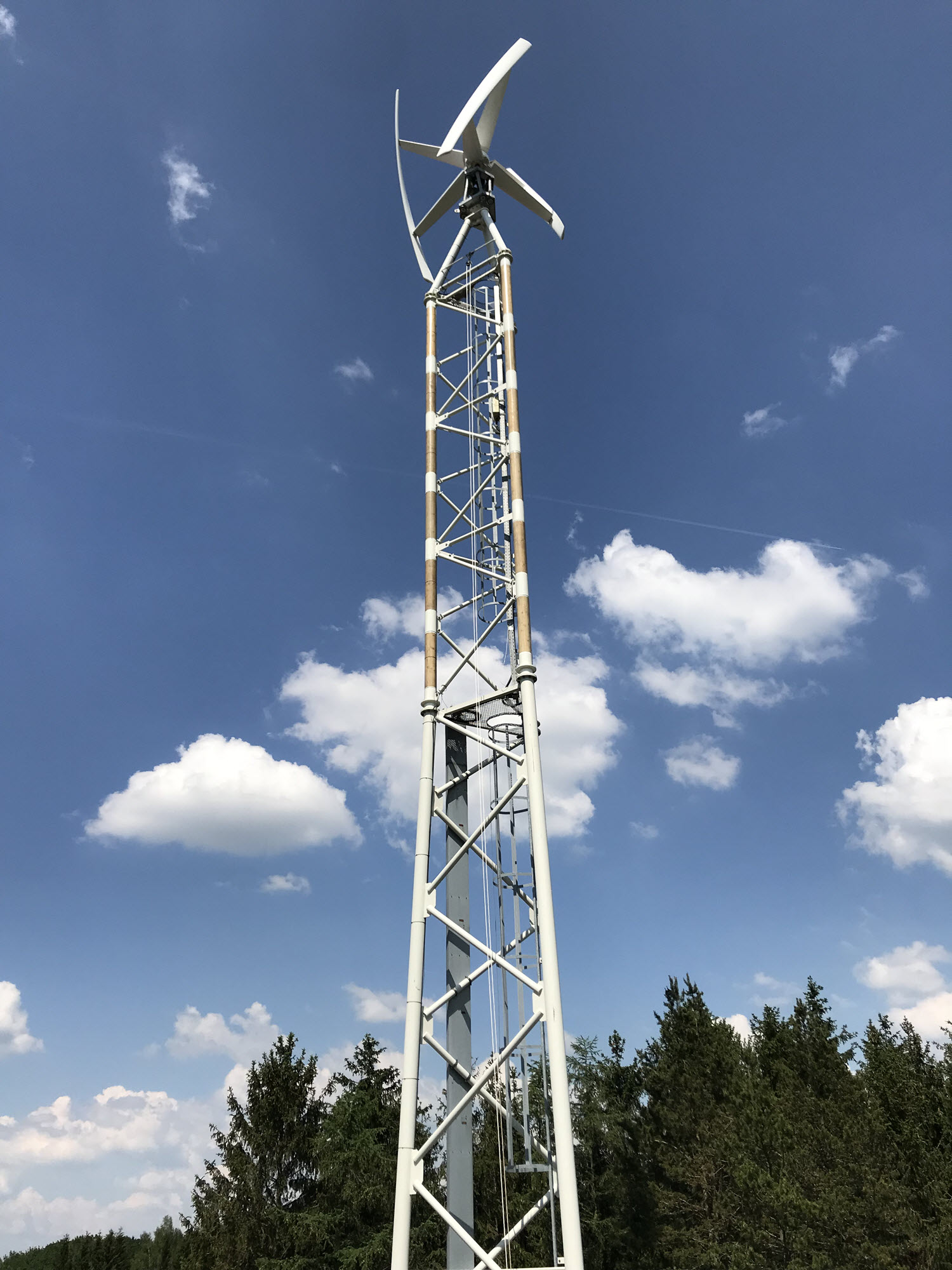

Truss segment made of fiber-reinforced molded timber pipes in upper area of tower (© Tom-Egmont Werner/STM)
2024-05-30
021273

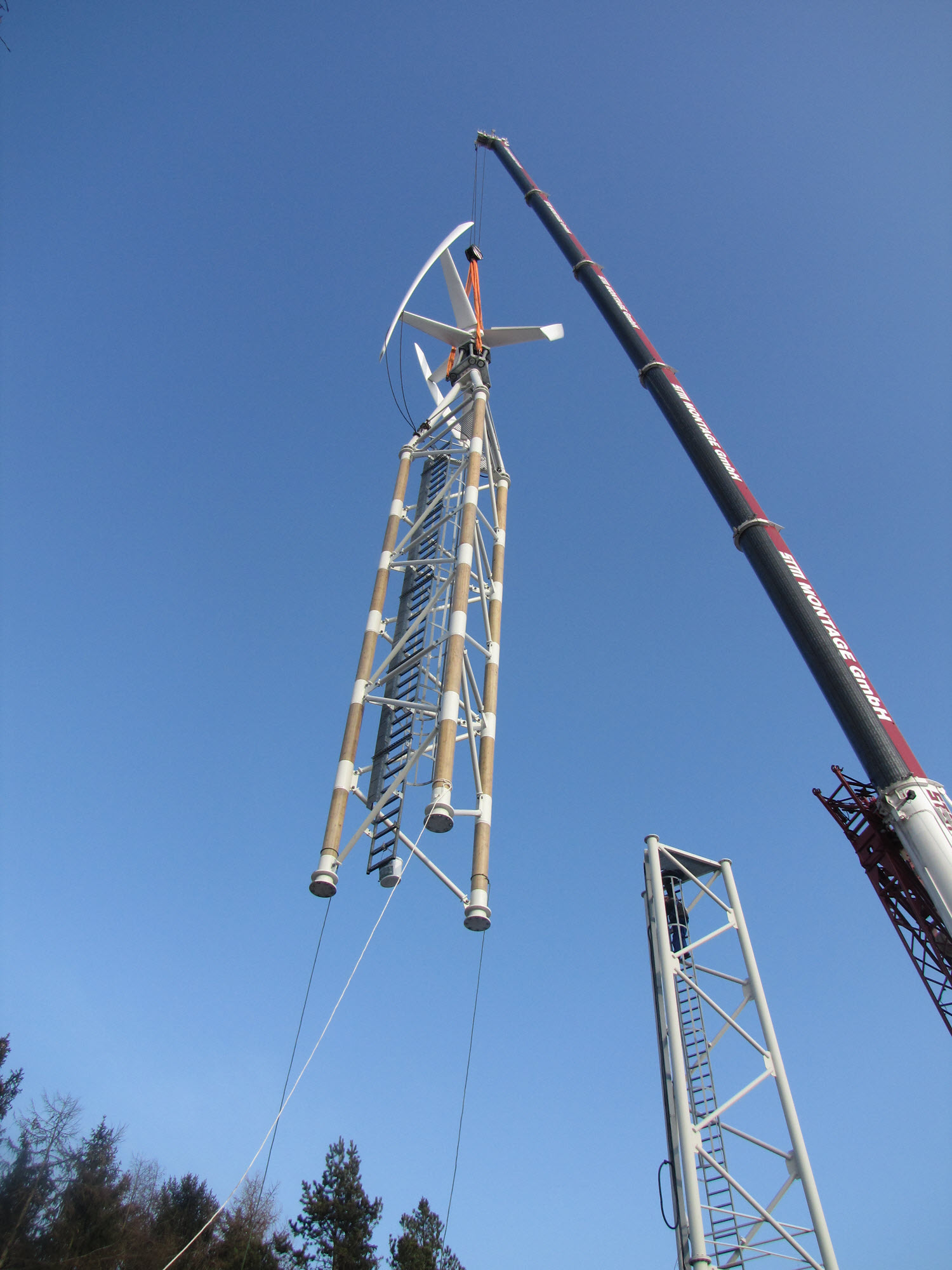

Truss Segment Assembly Made of Fiber-Reinforced Molded Timber Pipes (© TU Dresden)
2024-05-30
021265

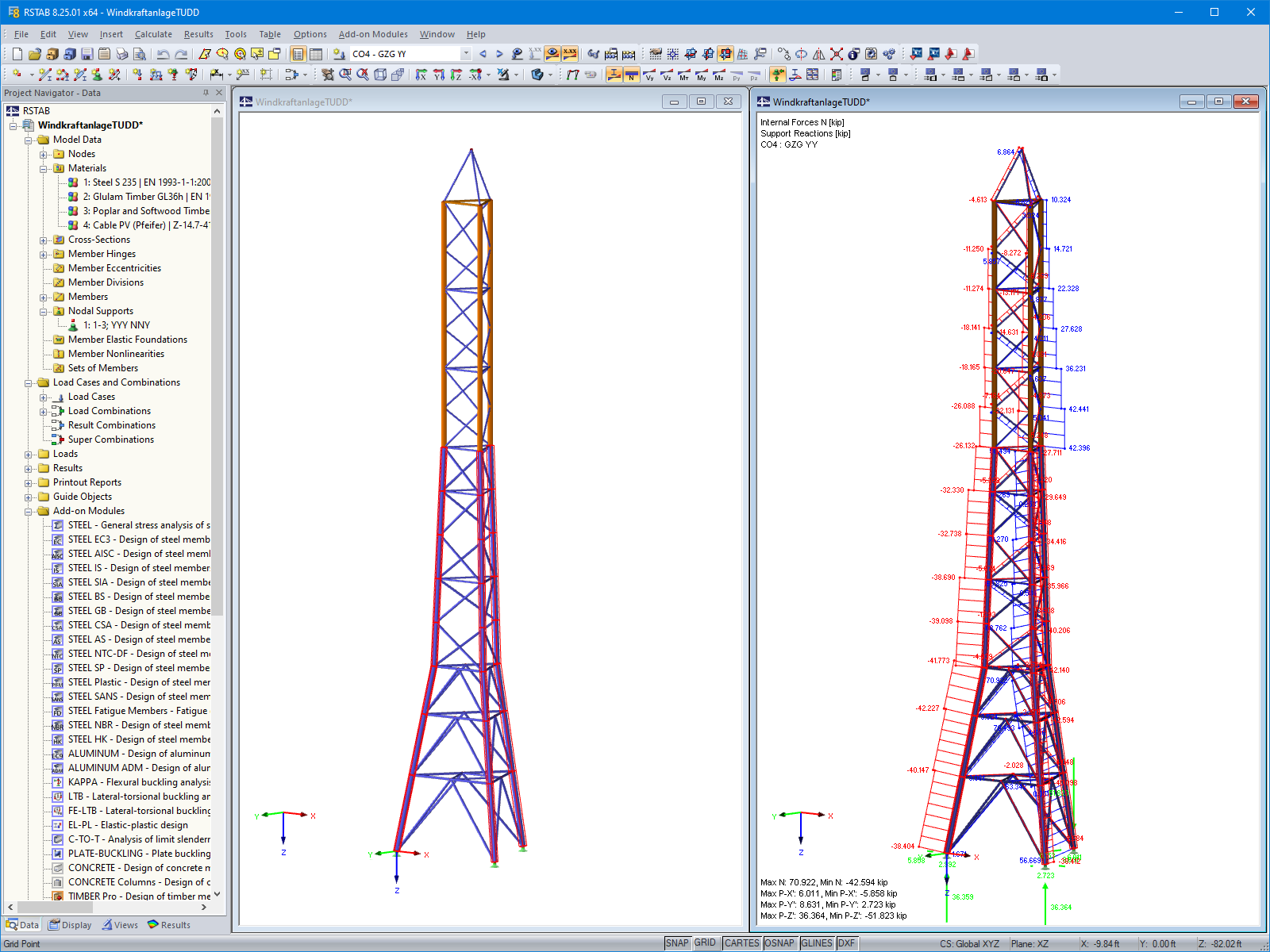

3D Truss Tower Model (Left) and Axial Forces (Right) in RSTAB (© TU Dresden)
3D Truss Tower Model (Left) and Axial Forces (Right) in RSTAB (© TU Dresden)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 55 |
| Number of Members | 135 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Total Weight | 8.397 tons |
| Dimensions (Metric) | 6.313 x 5.512 x 32.236 m |
| Dimensions (Imperial) | 20.71 x 18.08 x 105.76 feet |
| Program Version | 8.25.01 |
2024-05-30
021270
3D Model of Truss Tower in RSTAB (© TU Dresden)
