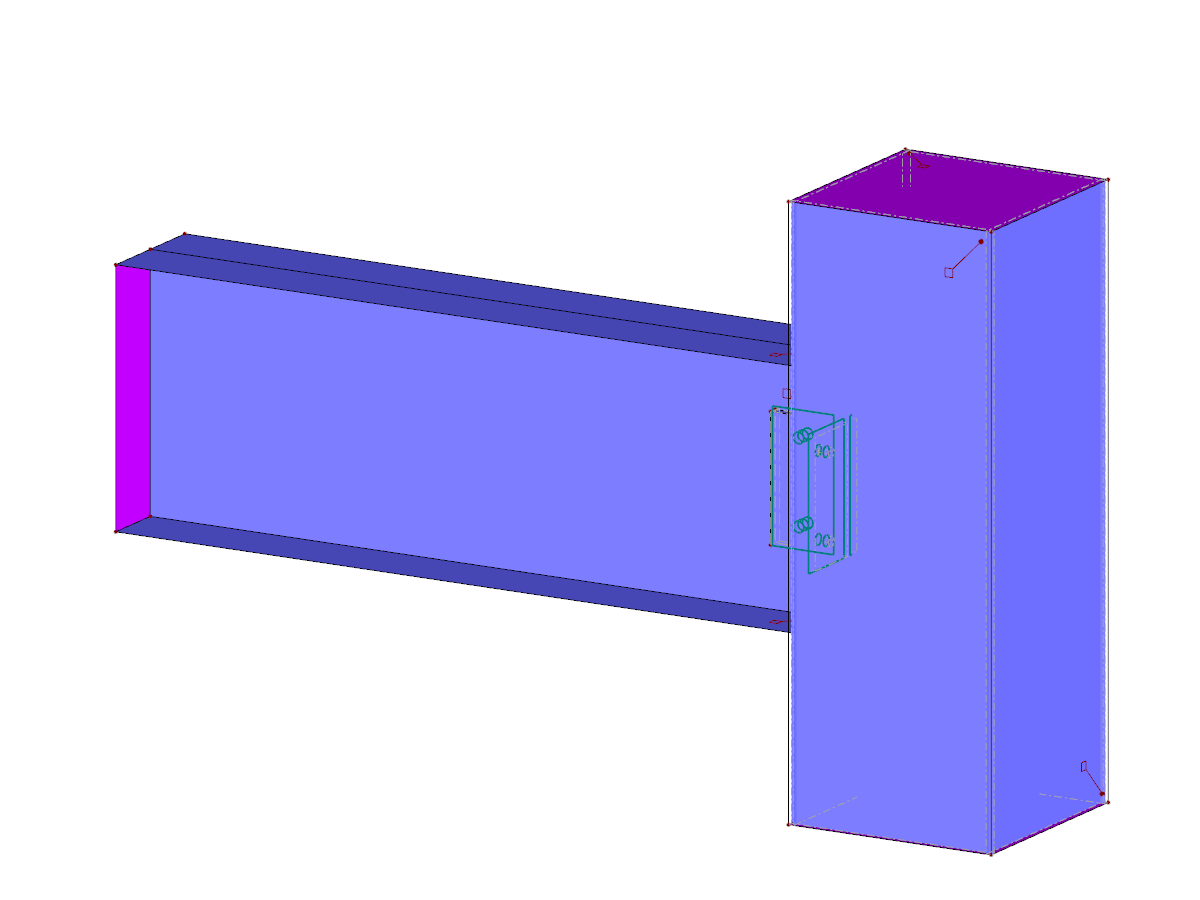

Hinge Connection | Double T-Section with Tubular Section
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 74 |
| Number of Lines | 107 |
| Number of Members | 6 |
| Number of Surfaces | 57 |
| Number of Solids | 4 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.110 tons |
| Dimensions (Metric) | 1.127 x 0.700 x 0.254 m |
| Dimensions (Imperial) | 3.7 x 2.3 x 0.83 feet |
