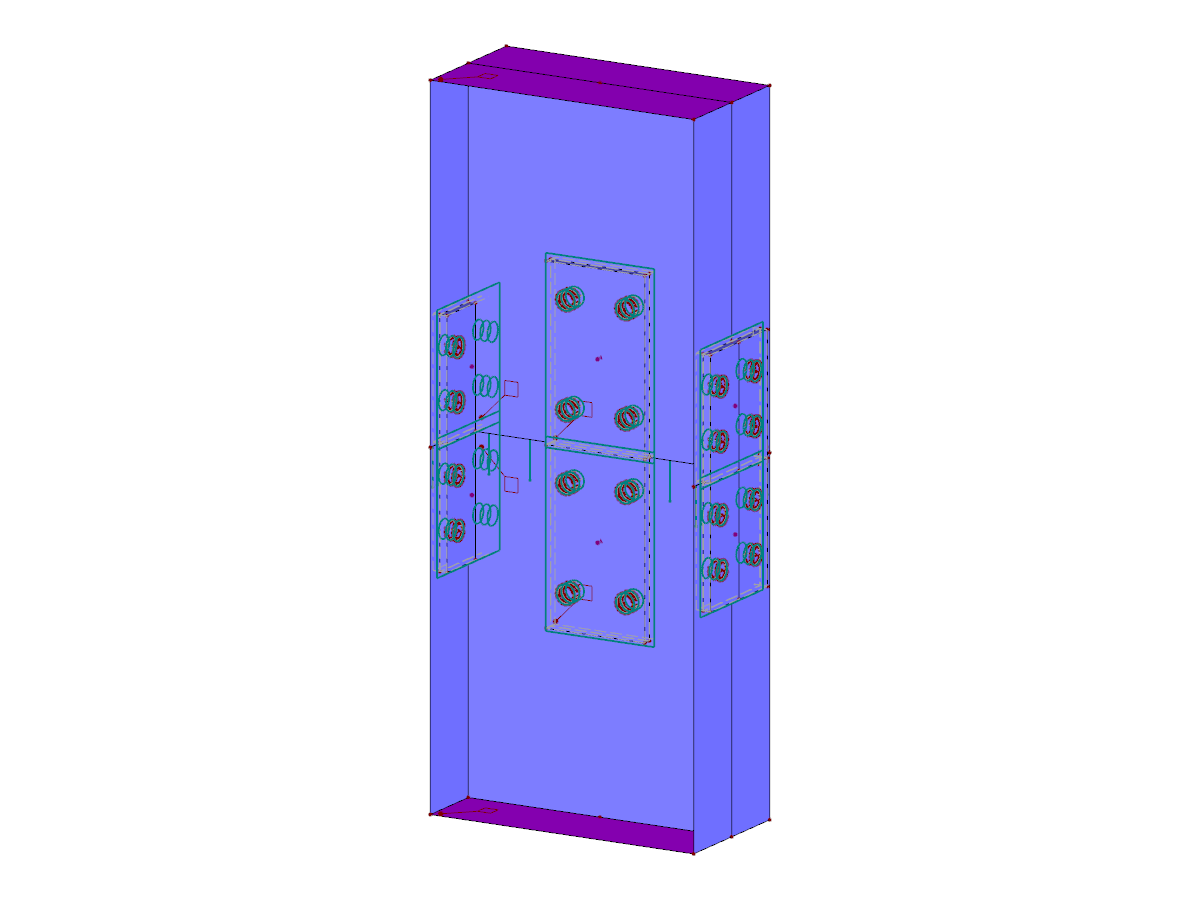

Column Splice Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 234 |
| Number of Lines | 307 |
| Number of Members | 48 |
| Number of Surfaces | 188 |
| Number of Solids | 12 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.089 tons |
| Dimensions (Metric) | 0.422 x 1.000 x 0.200 m |
| Dimensions (Imperial) | 1.38 x 3.28 x 0.66 feet |
