The file to download contains a parametrized model saved as a block (*.rfs or *.rf6 file type). For more information about the parametrized models and blocks, see the Short Video Tutorial - SVT 010 | Creating and Importing Blocks - see the link below.
The model was created by the technical team of Dlubal Latam.

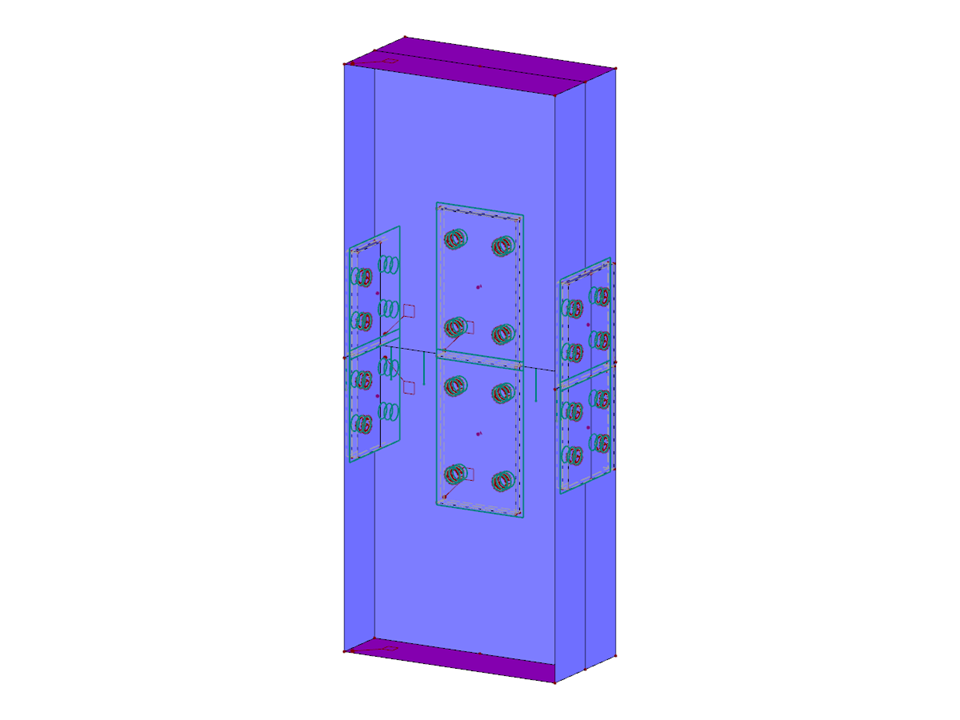

Column Splice Connection
| Block parameters editable dynamically | |
| Number of Nodes | 234 |
| Number of Lines | 307 |
| Number of Members | 48 |
| Number of Surfaces | 188 |
| Number of Solids | 12 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.089 tons |
| Dimensions (Metric) | 0.422 x 1.000 x 0.200 m |
| Dimensions (Imperial) | 1.38 x 3.28 x 0.66 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
