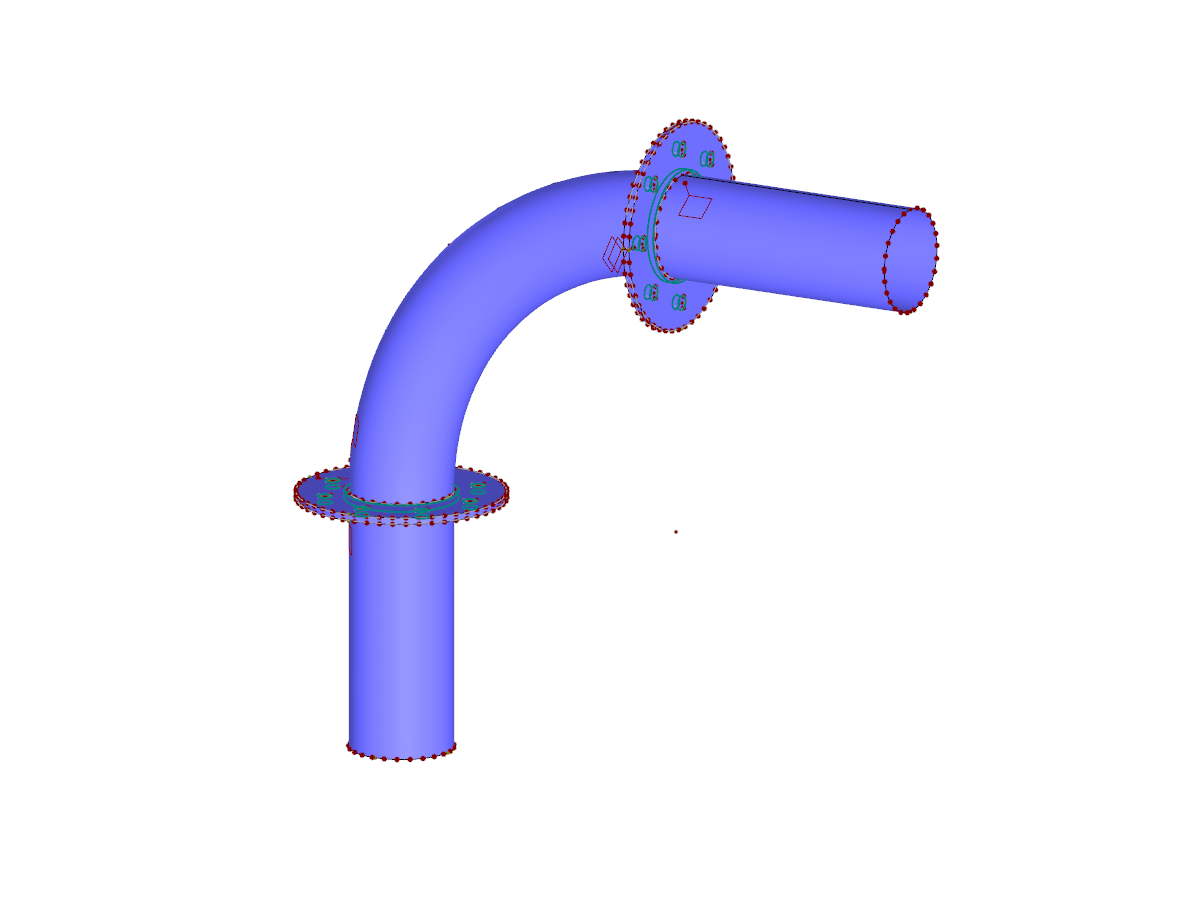

Flanged Elbow Pipe Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 81 |
| Number of Lines | 81 |
| Number of Members | 16 |
| Number of Surfaces | 59 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.884 tons |
| Dimensions (Metric) | 2.625 x 2.600 x 0.800 m |
| Dimensions (Imperial) | 8.61 x 8.53 x 2.62 feet |
