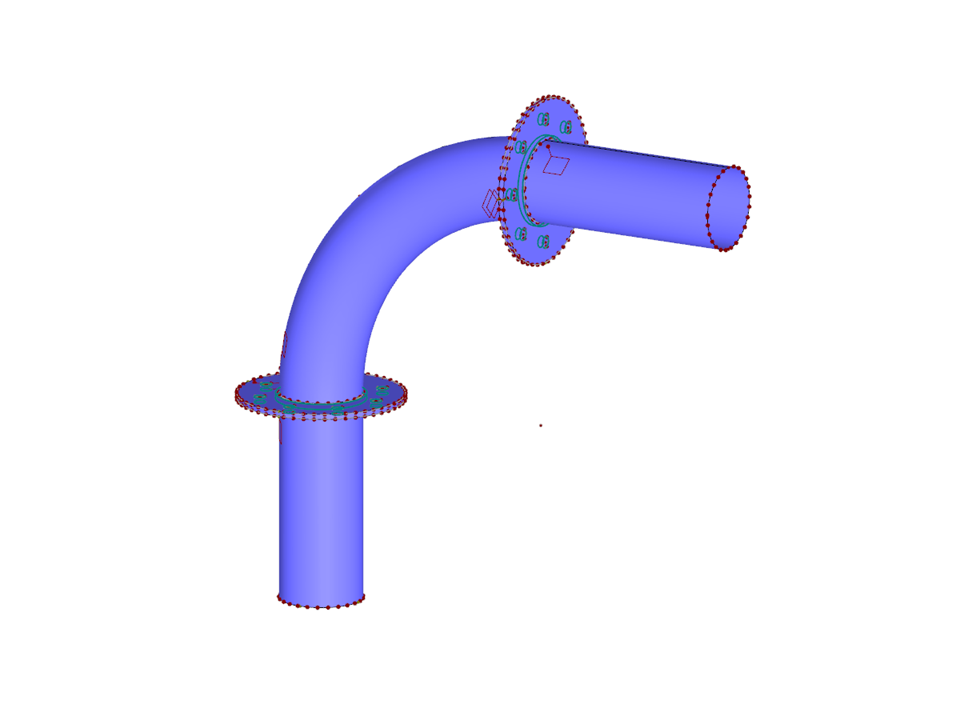

Flanged Elbow Pipe Connection
Model to Download
Description
The file to download contains parametrized model saved as block (*.rfs file type). For more information about parametrized models and blocks see the Short Video Tutorial - SVT 010 | Creating and Importing Blocks - see the link below.
Model created by the technical team of Dlubal Latam.
Keywords
Elbow Pipe Piping Connection Flange
Links
Write Comment...
Write Comment...
- Views 183x
- Downloads 26x
- Updated 14 April 2022
- Number of Nodes 160
- Number of Lines 81
- Number of Members 16
- Number of Surfaces 59
- Number of Solids 2
- Number of Load Cases 1
- Number of Load Combinations 2
- Number of Result Combinations 2
- Total Weight 1,082 t
- Dimensions 3.121 x 1.462 x 3.094 m
- Program Version 5.25.01.158239
Disclaimer
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
