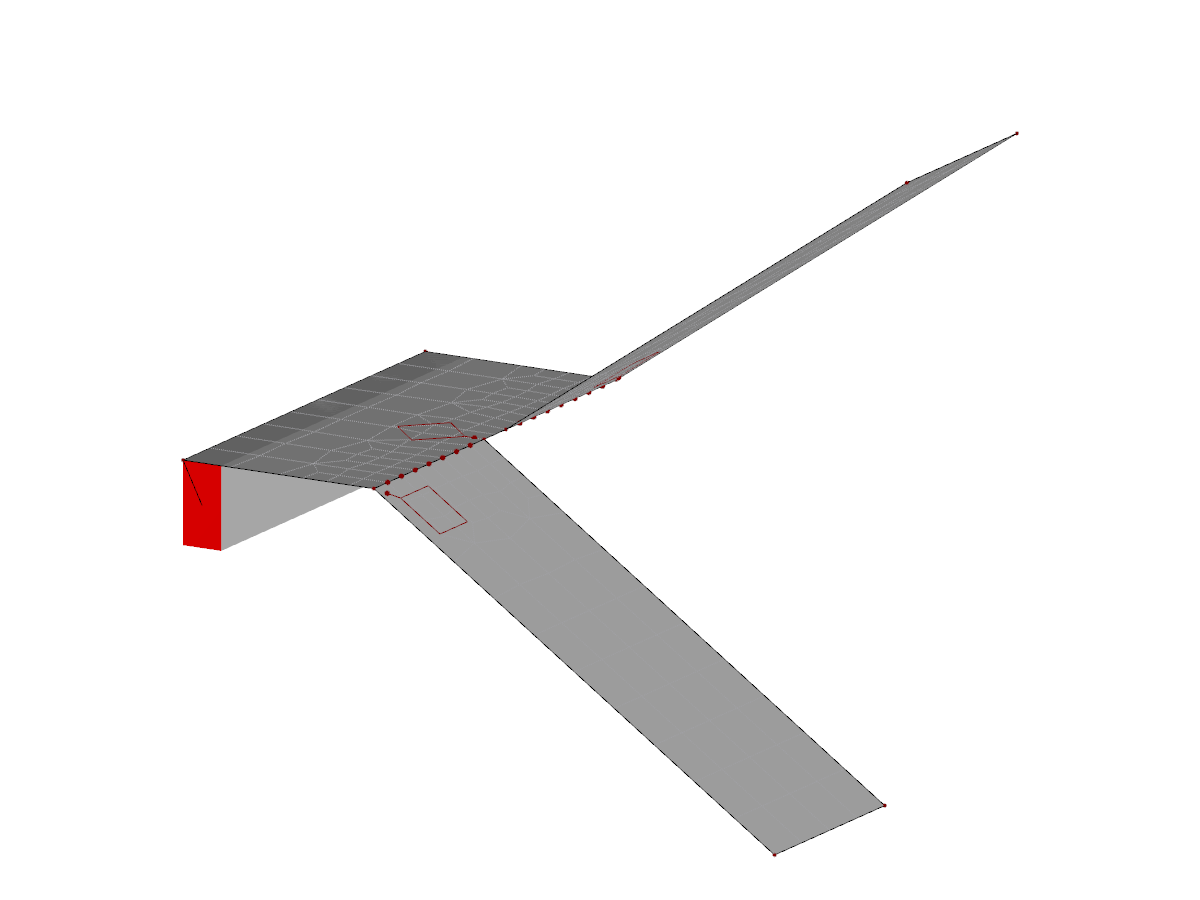

Straight Staircase with 1 Landing and 2 Webs and Beams
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 10 |
| Number of Lines | 12 |
| Number of Members | 1 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 2.425 tons |
| Dimensions (Metric) | 3.100 x 2.880 x 2.200 m |
| Dimensions (Imperial) | 10.17 x 9.45 x 7.22 feet |
