2024-03-09
025039

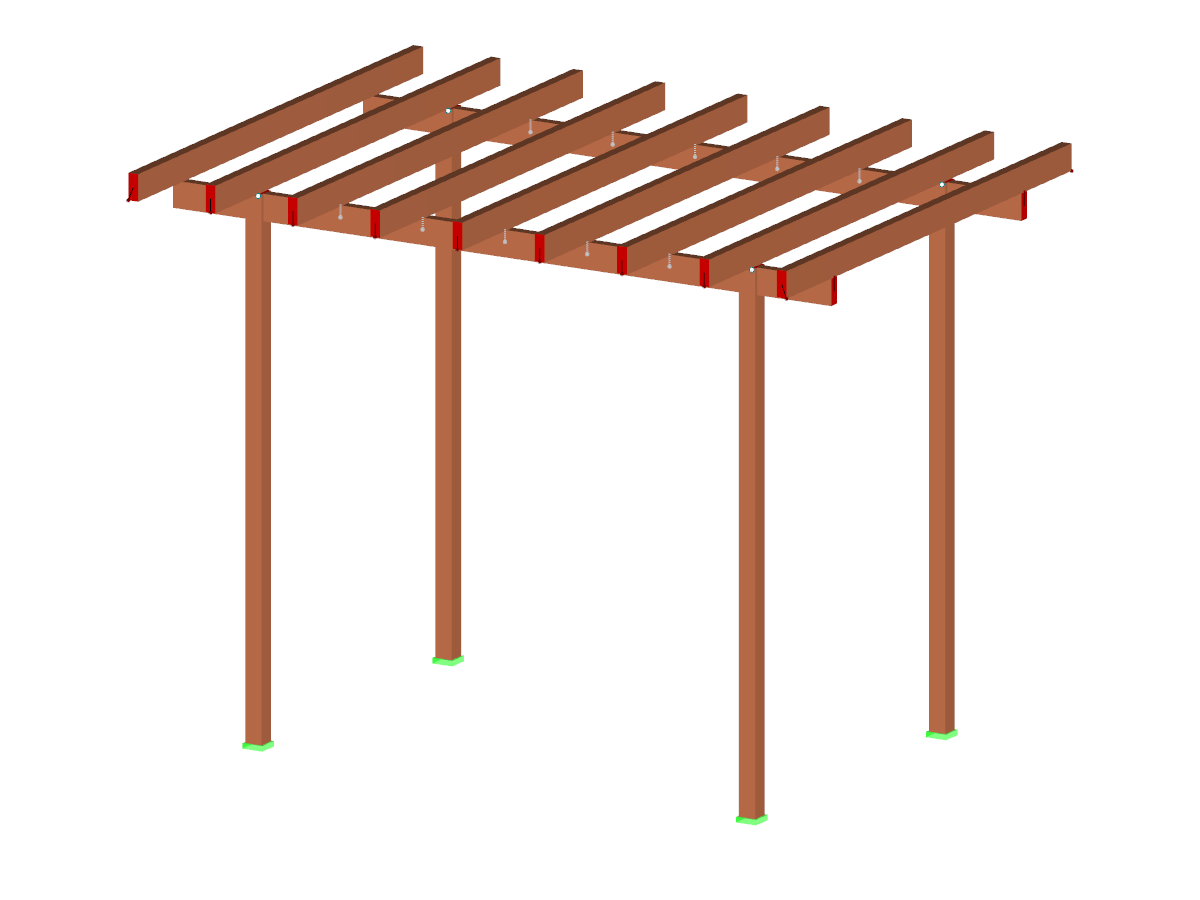

Pergola with Horizontal Coverage
Pergola with Rafters
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 15 |
| Number of Members | 15 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 1 |
| Total Weight | 0.348 tons |
| Dimensions (Metric) | 4.000 x 3.000 x 3.325 m |
| Dimensions (Imperial) | 13.12 x 9.84 x 10.91 feet |
| Program Version | 5.26.01 |
2024-03-09
026141

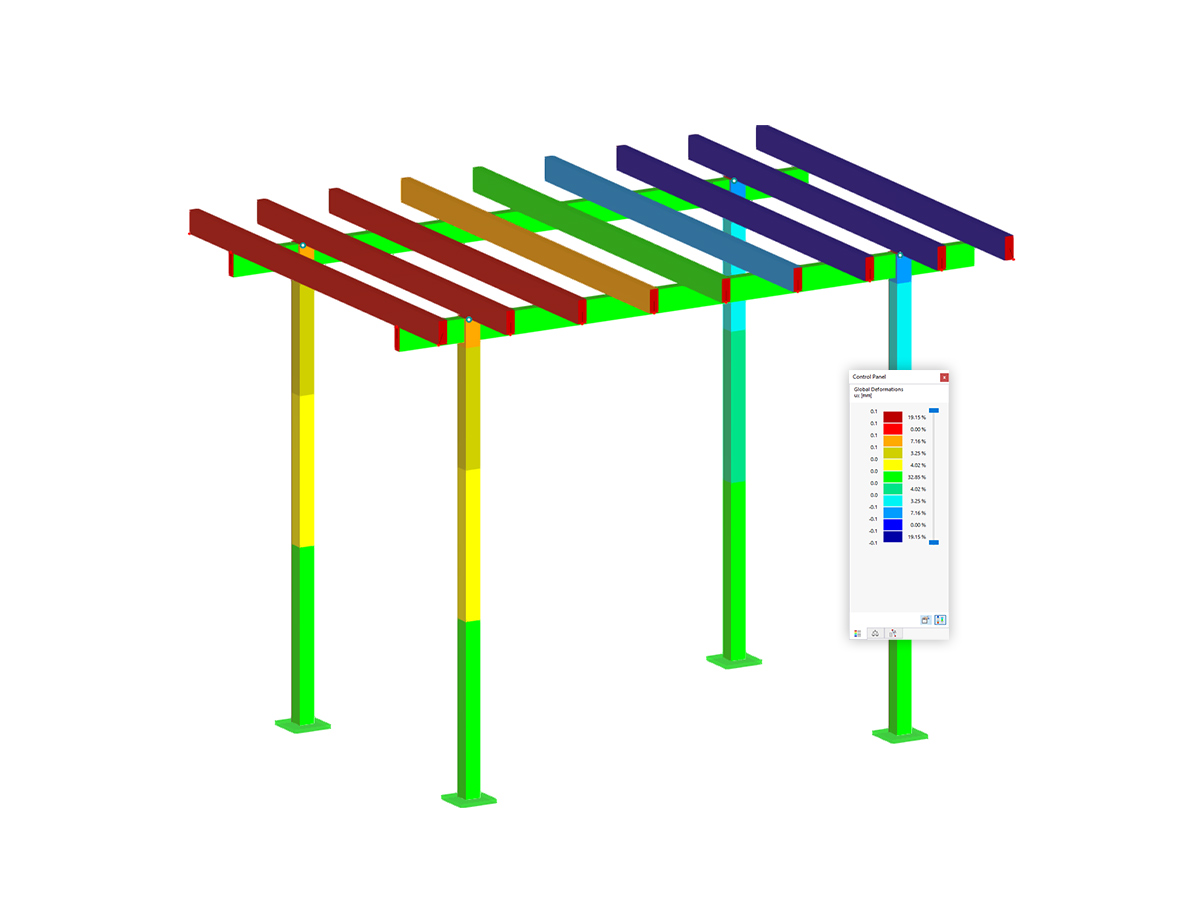

Pergola with Rafters
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 15 |
| Number of Members | 15 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 1 |
| Total Weight | 0.348 tons |
| Dimensions (Metric) | 4.000 x 3.000 x 3.325 m |
| Dimensions (Imperial) | 13.12 x 9.84 x 10.91 feet |
| Program Version | 5.26.01 |
