A model created by the technical team of Dlubal Latam. The model can also be available as a parametrized block at the Dlubal Latam site.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

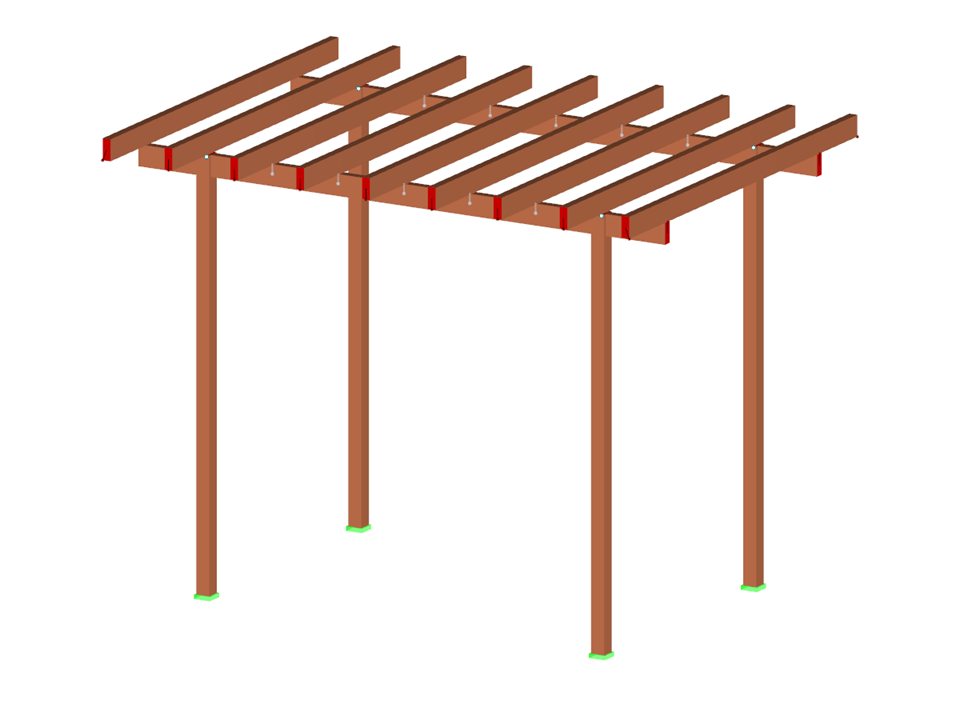

Pergola with Rafters

Number of Nodes 40
Number of Lines 15
Number of Members 15
Number of Load Cases 4
Number of Load Combinations 8
Number of Result Combinations 1
Total Weight 0.348 t
Dimensions 4.000 x 3.000 x 3.325 m
Program Version 5.26.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
