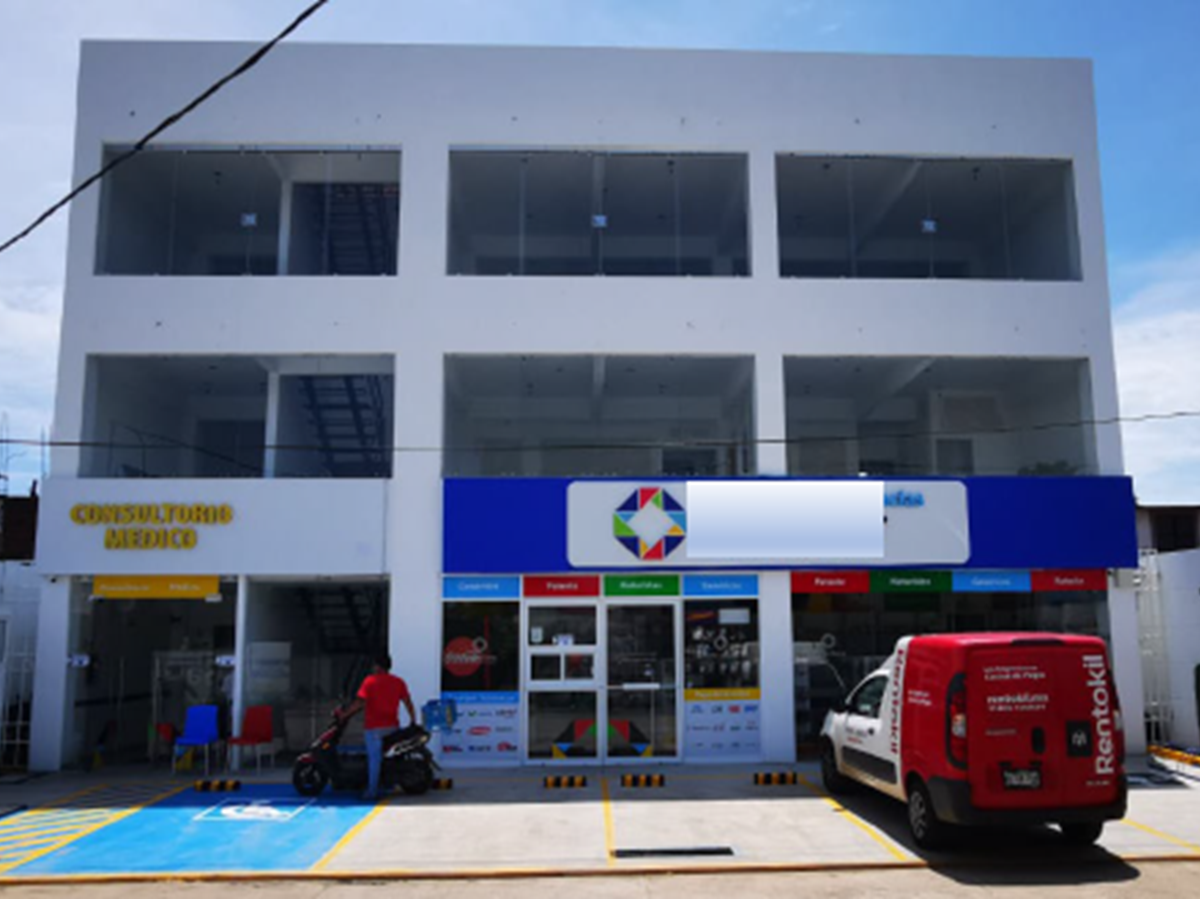

Exterior Building View (© SIE.istmo Servicio de Ingeniería Estructural)
2024-05-30
026874
Building Under Construction (© SIE.istmo Servicio de Ingeniería Estructural)
2024-05-30
026879
Result Envelope of Global Deformations (© SIE.istmo Servicio de Ingeniería Estructural)
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 193 |
| Number of Members | 165 |
| Number of Surfaces | 54 |
| Number of Load Cases | 3 |
| Number of Result Combinations | 4 |
| Total Weight | 328.610 tons |
| Dimensions (Metric) | 16.608 x 10.208 x 9.629 m |
| Dimensions (Imperial) | 54.49 x 33.49 x 31.59 feet |
| Program Version | 5.26.02 |
2024-05-30
026880
Required Reinforcement for Slabs and Girders (Beams) (© SIE.istmo Servicio de Ingeniería Estructural)
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 193 |
| Number of Members | 165 |
| Number of Surfaces | 54 |
| Number of Load Cases | 3 |
| Number of Result Combinations | 4 |
| Total Weight | 328.610 tons |
| Dimensions (Metric) | 16.608 x 10.208 x 9.629 m |
| Dimensions (Imperial) | 54.49 x 33.49 x 31.59 feet |
| Program Version | 5.26.02 |
2024-05-30
026881
Elevation and Floor Plan (© SIE.istmo Servicio de Ingeniería Estructural)
