Pharmacy and Medical Office Building in El Espinal, Oaxaca, Mexico

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

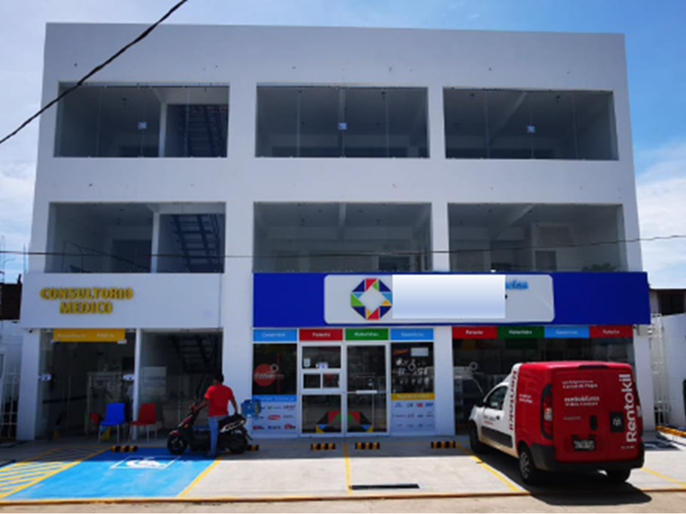

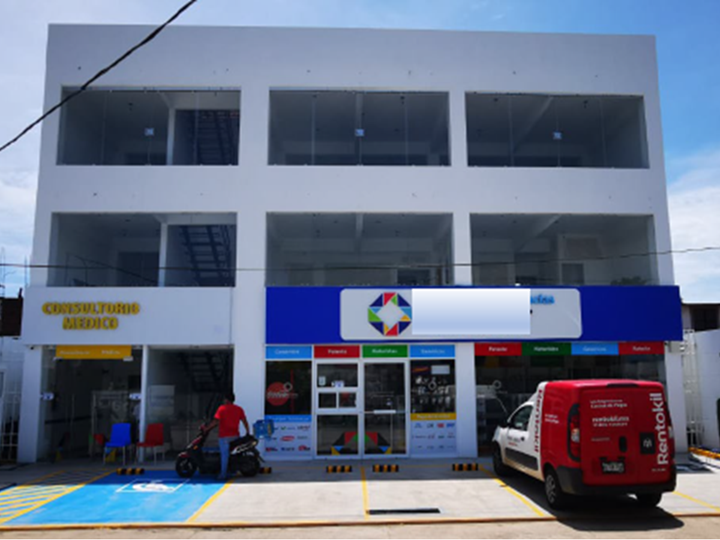

The building is located on avenue Melchor Ocampo, Tercera Sección, in El Espinal, Oaxaca, Mexico. It is a building with a pharmacy on the ground floor and medical offices on the upper floors with partitions made of lightweight material.

Structural Design Ing. Miguel Angel Ulloa Castillejos
SIE.istmo Servicio de Ingeniería Estructural
El Espinal, Oax. Mexico

Model Parameters

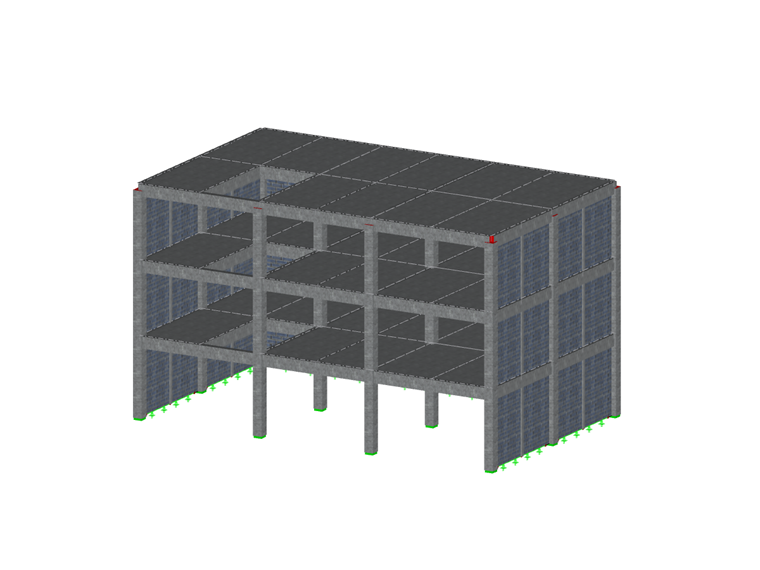

Model

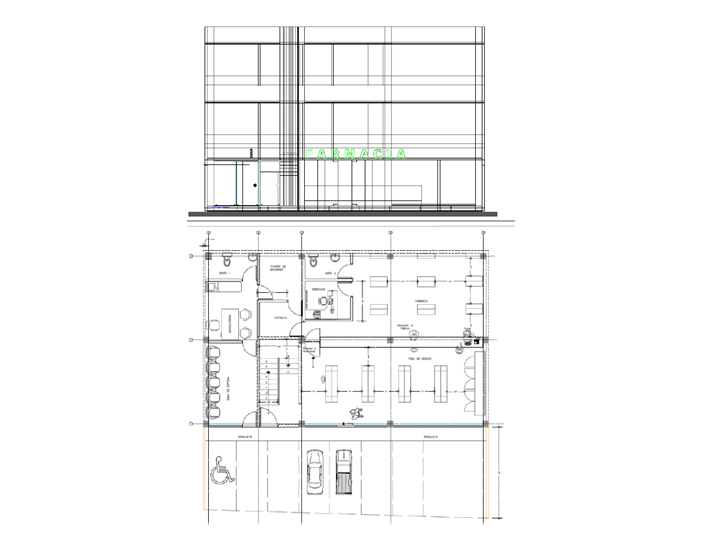

The overall geometric shape of the floor plan and height is rectangular.

All the floors are connected by a metal staircase that was added after the main system was finished.

Reinforced concrete and masonry were used as the structural material. The reinforced concrete columns are square and the beams are rectangular. The thickness of the reinforced concrete slabs and masonry diaphragm walls is uniform.

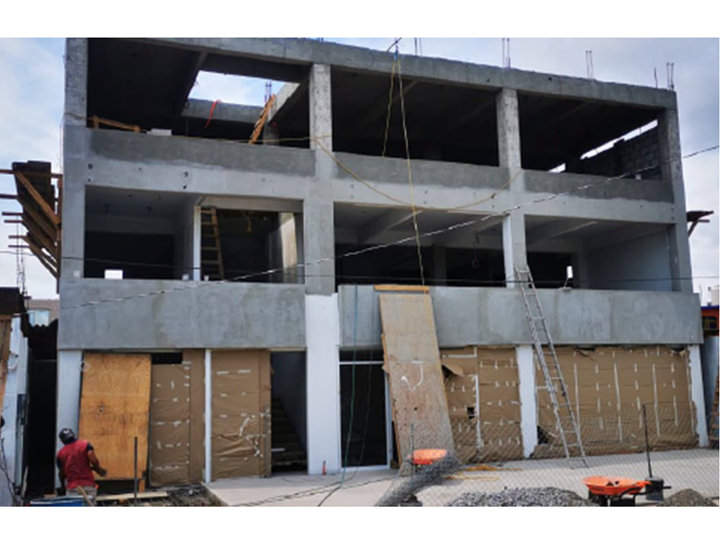

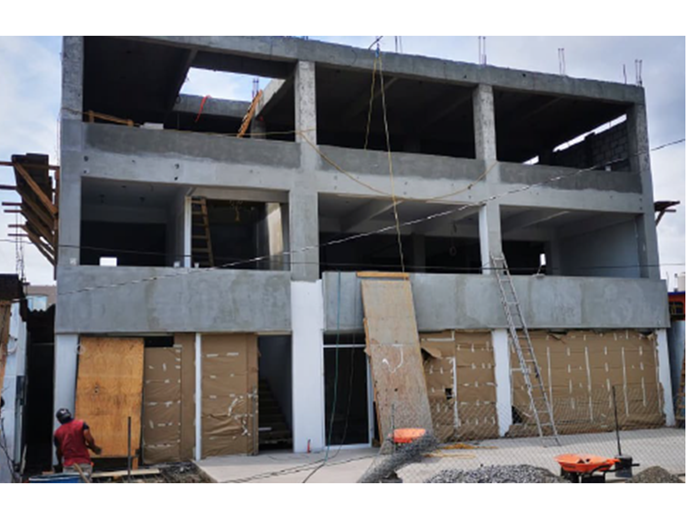

The main structural system that bears the loads is composed of rigid frames made of reinforced concrete beams and columns with and without diaphragm walls, built on strip foundations made of reinforced concrete.

The loads and their combinations were calculated considering the effects of lateral loads designed for the seismic zone where the structure is located.

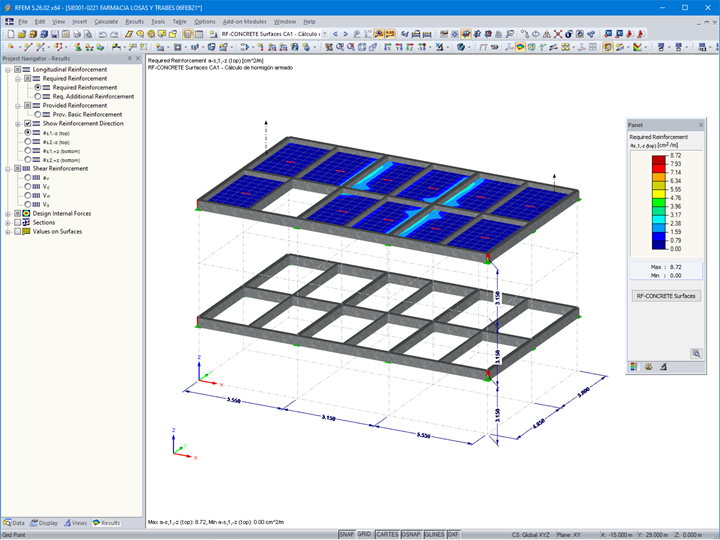

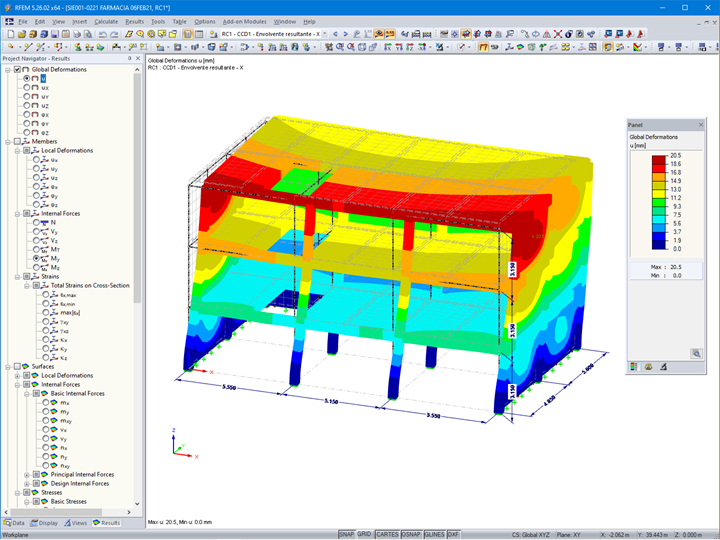

The structural analysis using the RFEM 5 main program and the add-on modules RF‑DYNAM Pro, RF‑CONCRETE Surfaces, RF-CONCRETE Members, and RF-CONCRETE Columns has shown that the structural elements did not exceed the ultimate and serviceability limit states, nor the distortion of the mezzanine floors of the structure for load combinations, including seismic effects.

The company SAGA Diseño y Construcción provided the architectural data and was in charge of the construction execution.

Project Location

Av. Melchor Ocampo, Tercera Sección,
70117, El Espinal, Oaxaca
Mexico

Keywords

Building Reinforced concrete Reinforced concrete Masonry Seismic actions
