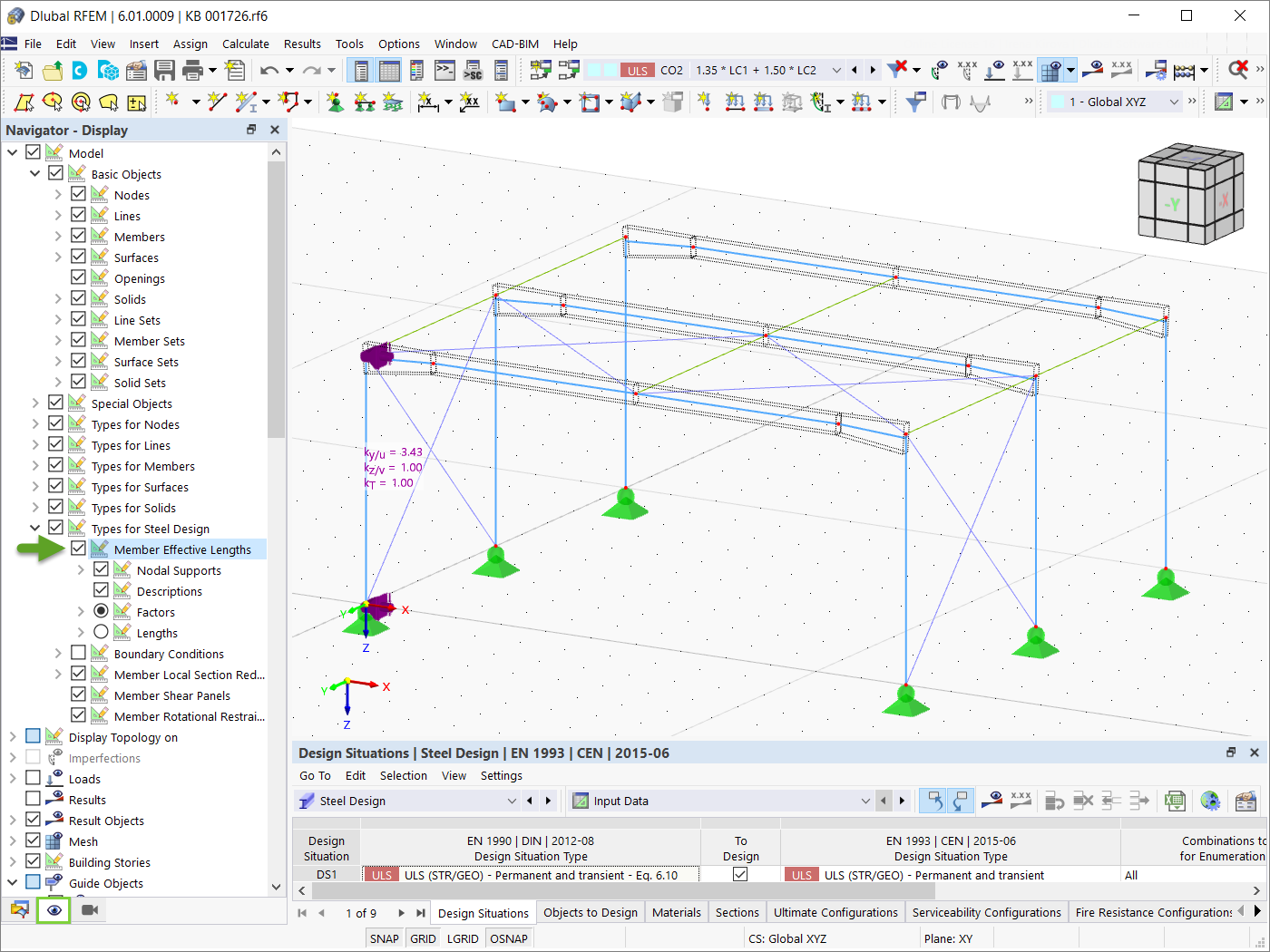

Displaying Effective Lengths
3D Model
Specifications
| Number of Nodes | 22 |
| Number of Lines | 32 |
| Number of Members | 32 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 1 |
| Total Weight | 4.394 t |
| Dimensions (Metric) | 12.894 x 10.894 x 5.447 m |
| Dimensions (Imperial) | 42.3 x 35.74 x 17.87 feet |
| Program Version | 5.23.02 |
