East View of Courtyard Frame Structure (© D-Bois)
West View of Courtyard Frame Structure Under Construction (© D-Bois)
View Under Courtyard Frame Under Construction (© D-Bois)
Frame Structure of Courtyard Modeled in RFEM (© D-Bois)
East View of Courtyard Frame Structure (© D-Bois)
West View of Courtyard Frame Structure Under Construction (© D-Bois)
View Under Courtyard Frame Under Construction (© D-Bois)
Frame Structure of Courtyard Modeled in RFEM (© D-Bois)
2024-05-30
033263

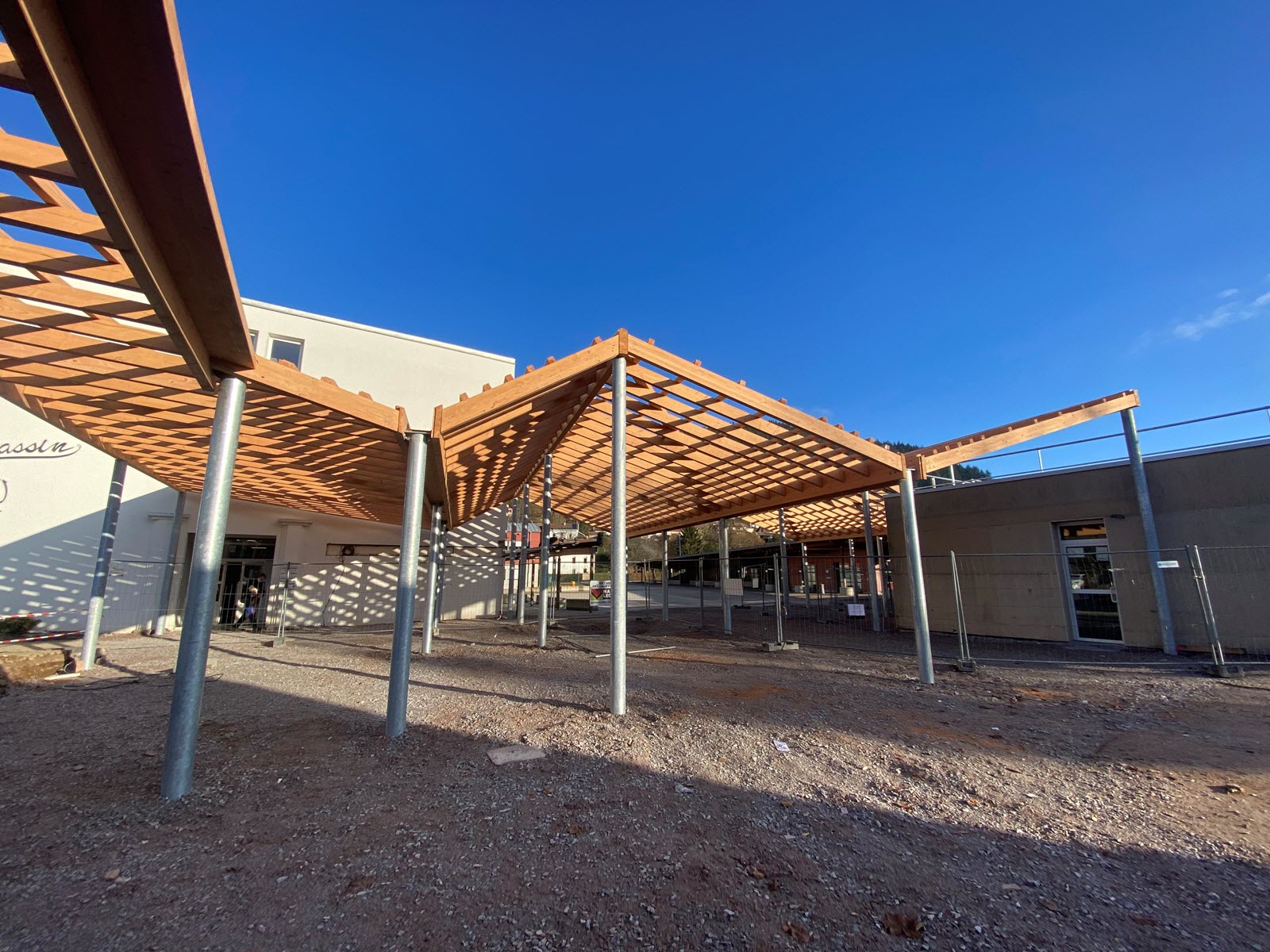

East View of Courtyard Frame Structure (© D-Bois)

Used in
2024-05-30
033264

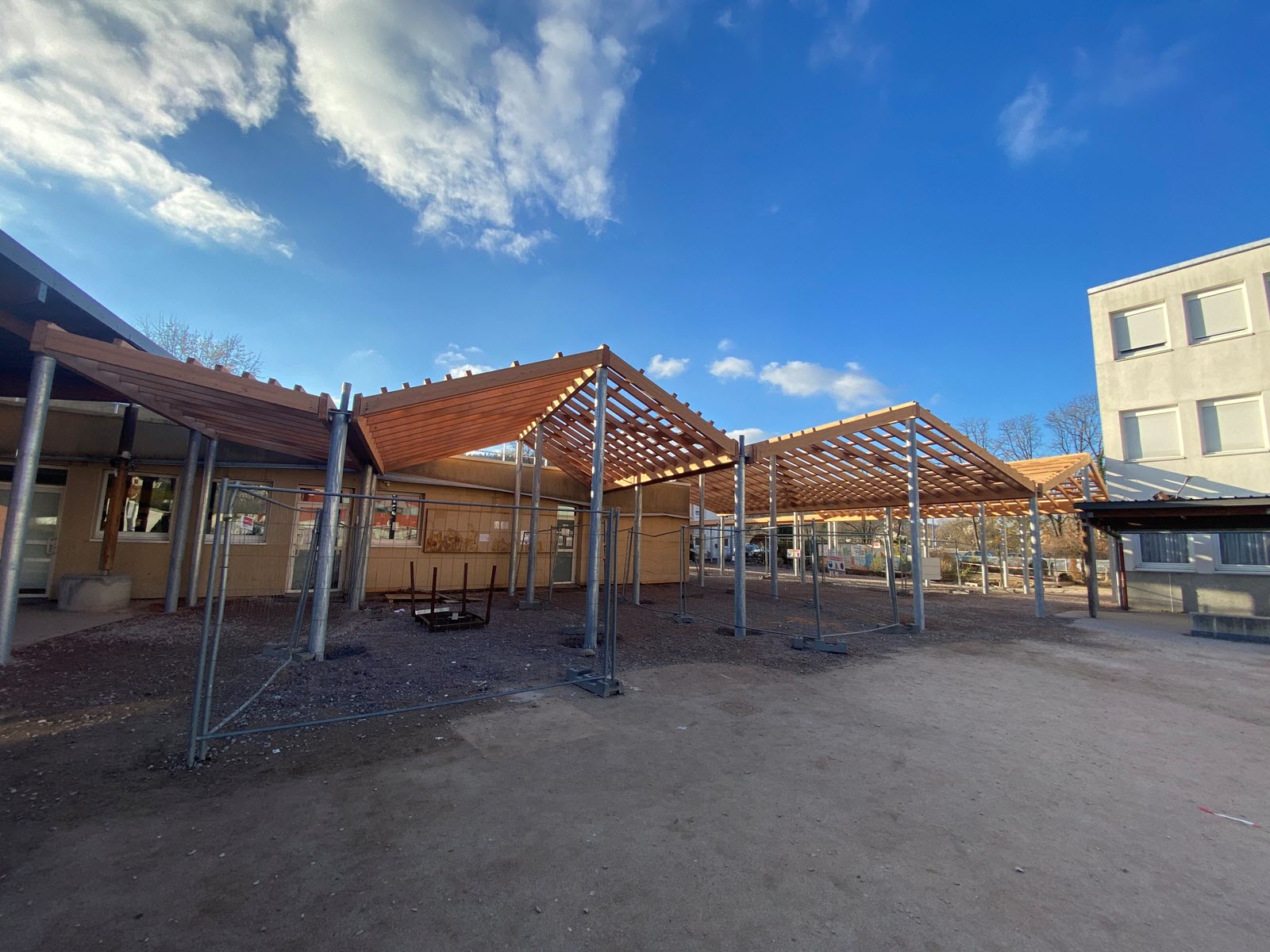

West View of Courtyard Frame Structure Under Construction (© D-Bois)
Used in
2024-05-30
033265

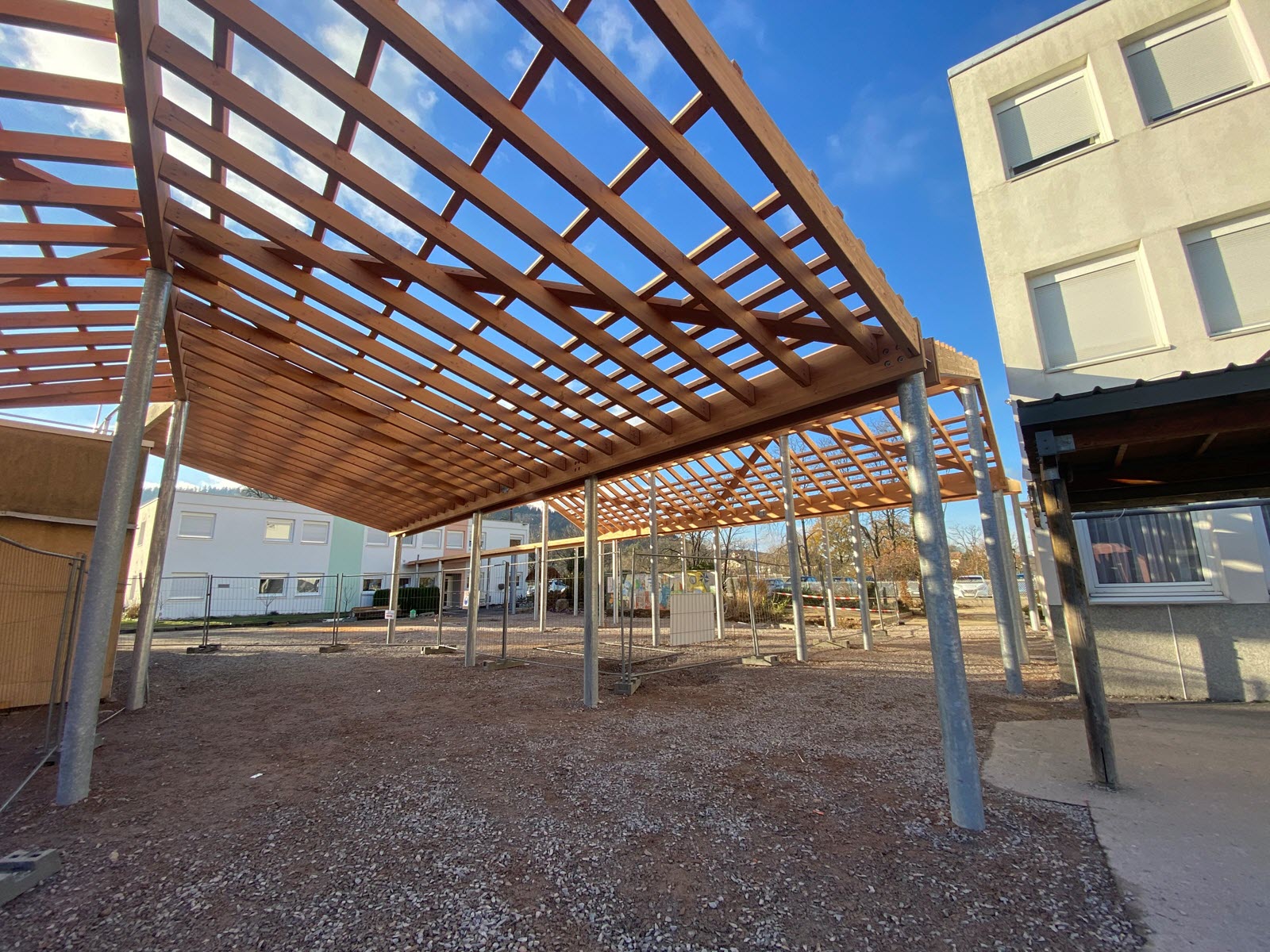

View Under Courtyard Frame Under Construction (© D-Bois)
Used in
2024-05-30
033266

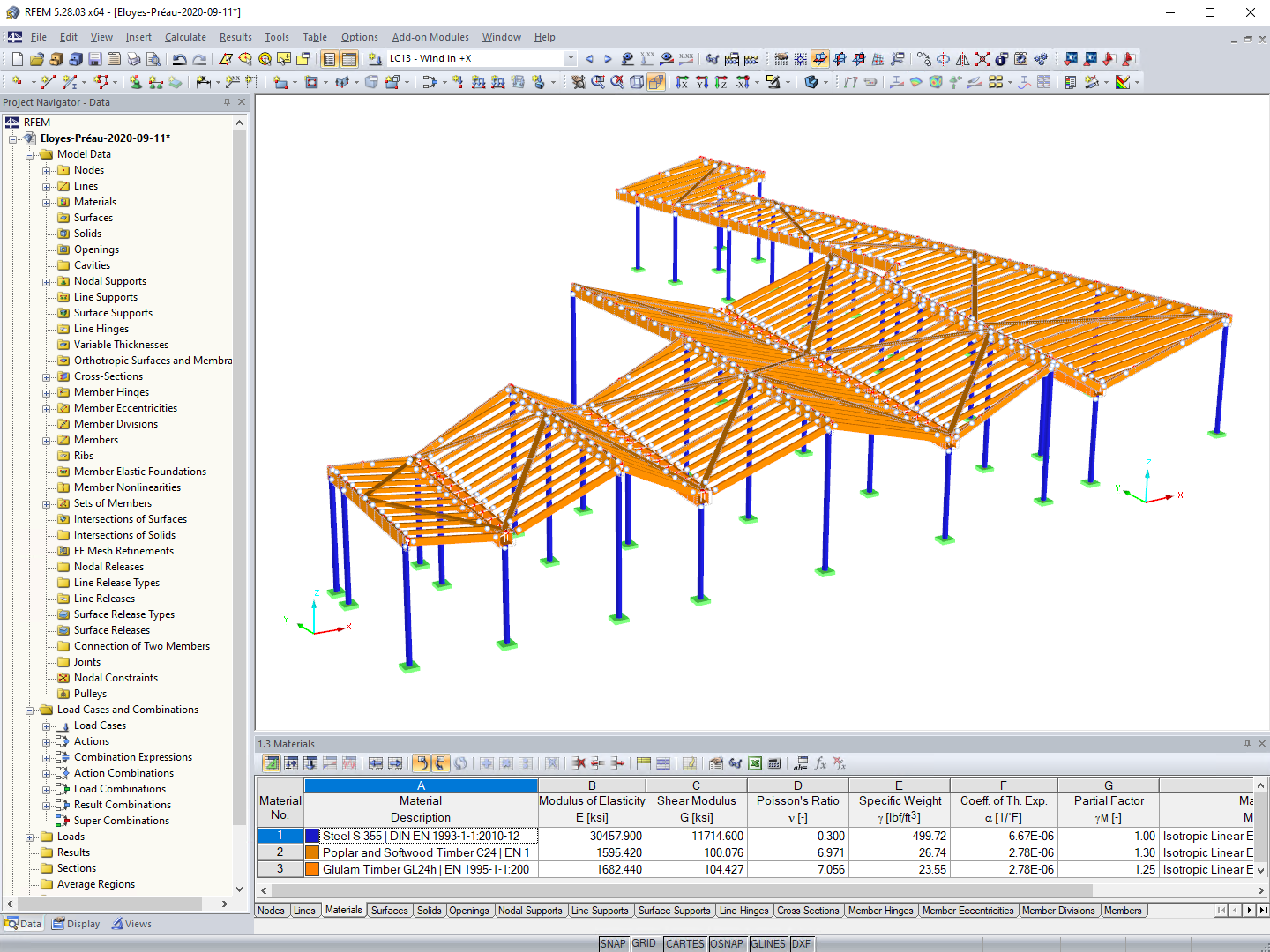

Frame Structure of Courtyard Modeled in RFEM (© D-Bois)
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 372
Number of Lines 601
Number of Members 601
Number of Load Cases 16
Number of Load Combinations 32
Number of Result Combinations 8
Total Weight 15.069 t
Dimensions (Metric) 34.581 x 34.940 x 5.878 m
Dimensions (Imperial) 113.45 x 114.63 x 19.28 feet
Program Version 5.23.02
