2022-08-05
033515

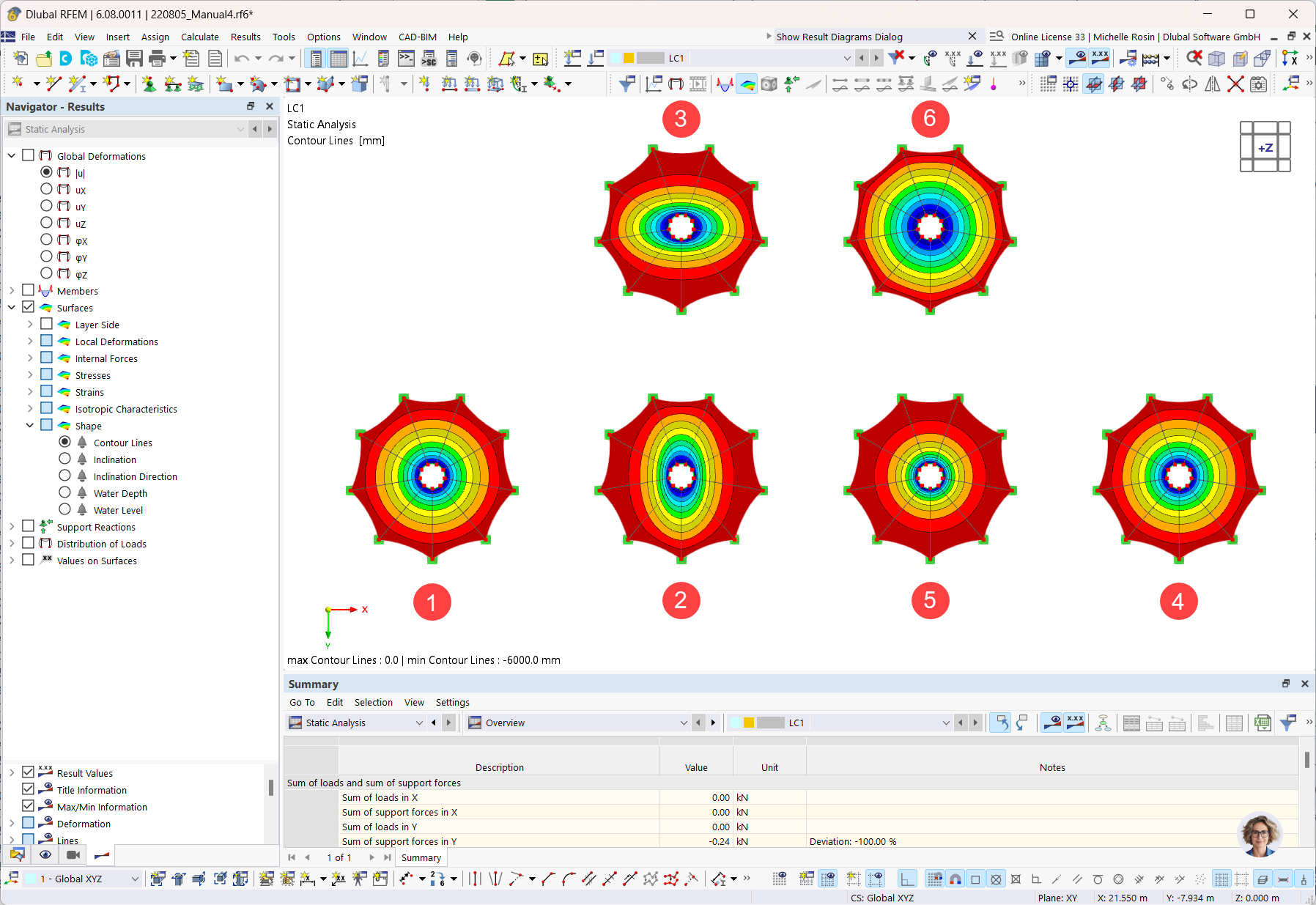

Conical Membrane – Contour Lines
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 162 |
| Number of Members | 54 |
| Number of Surfaces | 54 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.245 tons |
| Dimensions (Metric) | 109.696 x 6.000 x 49.397 m |
| Dimensions (Imperial) | 359.9 x 19.69 x 162.06 feet |
2024-03-09
033514

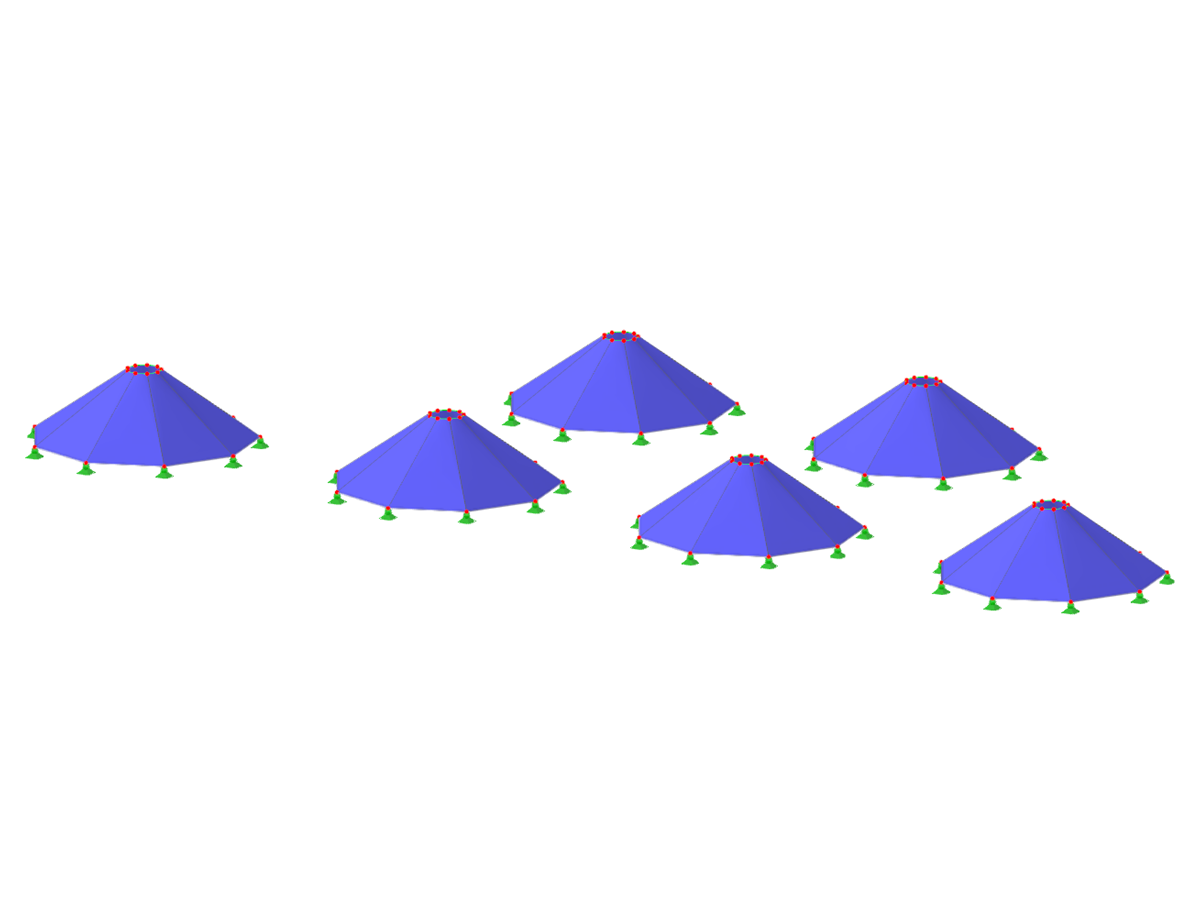

Conical Membrane - Surface Load
Used in
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 162 |
| Number of Members | 54 |
| Number of Surfaces | 54 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.245 tons |
| Dimensions (Metric) | 109.696 x 6.000 x 49.397 m |
| Dimensions (Imperial) | 359.9 x 19.69 x 162.06 feet |
2022-08-05
033519

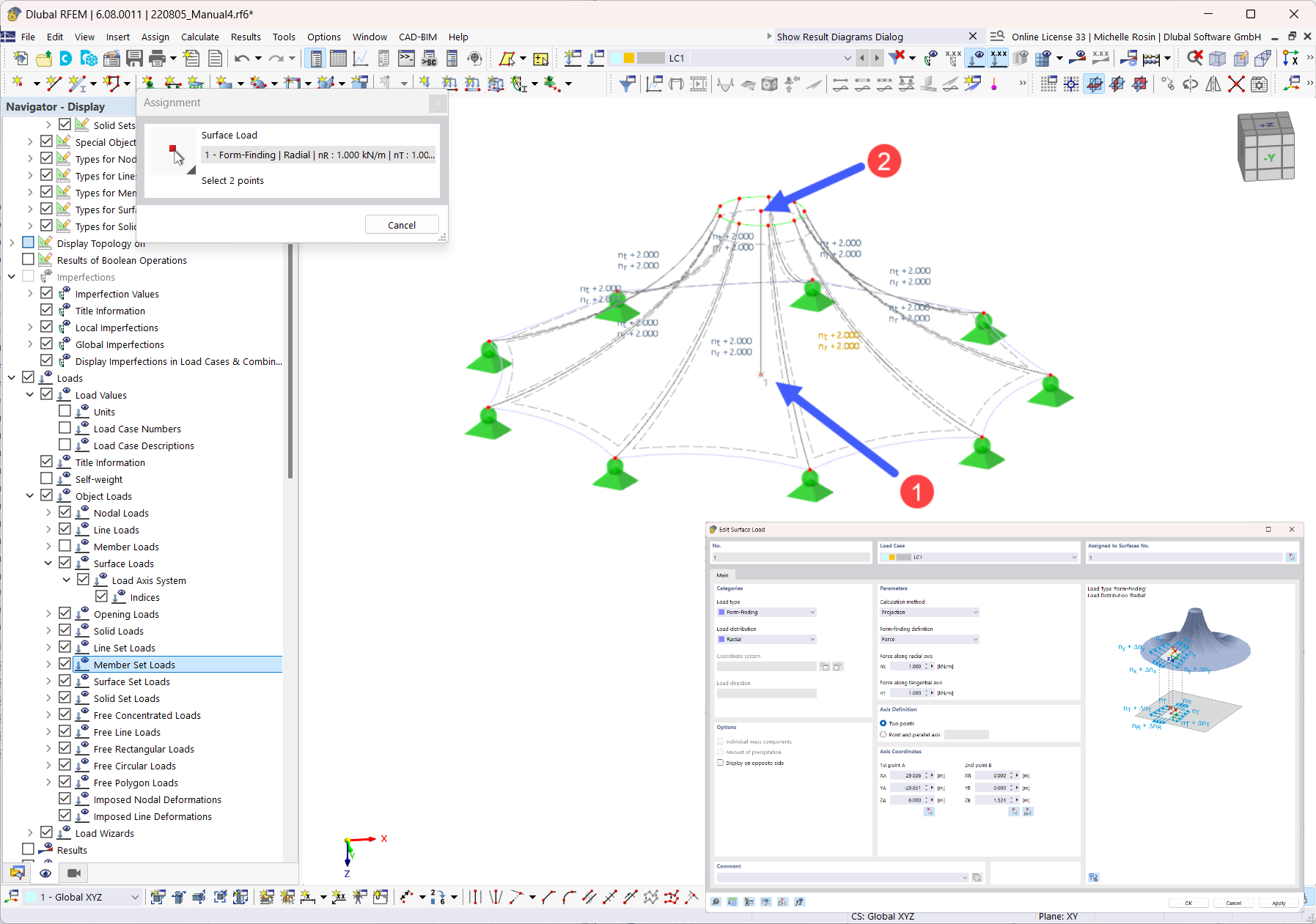

Conical Membrane – Radial Projection Method
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 162 |
| Number of Members | 54 |
| Number of Surfaces | 54 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.245 tons |
| Dimensions (Metric) | 109.696 x 6.000 x 49.397 m |
| Dimensions (Imperial) | 359.9 x 19.69 x 162.06 feet |
