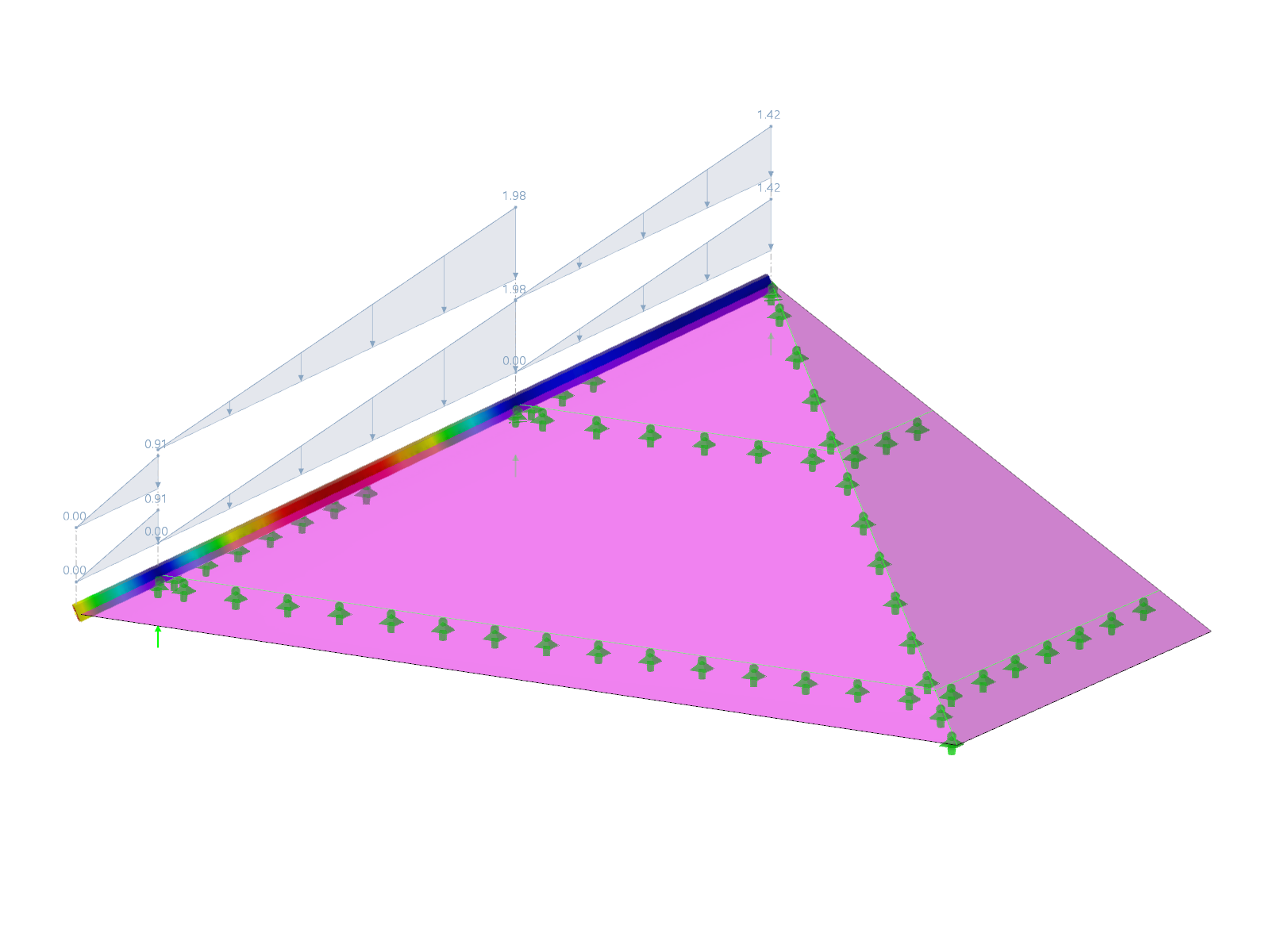

Timber Hip Rafter | Webinar Model
Timber Hip Rafter
Used in
3D Model
Specifications
| Number of Nodes | 13 |
| Number of Lines | 21 |
| Number of Members | 3 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 0.105 tons |
| Dimensions (Metric) | 13.600 x 3.926 x 6.800 m |
| Dimensions (Imperial) | 44.62 x 12.88 x 22.31 feet |
2024-03-09
033549

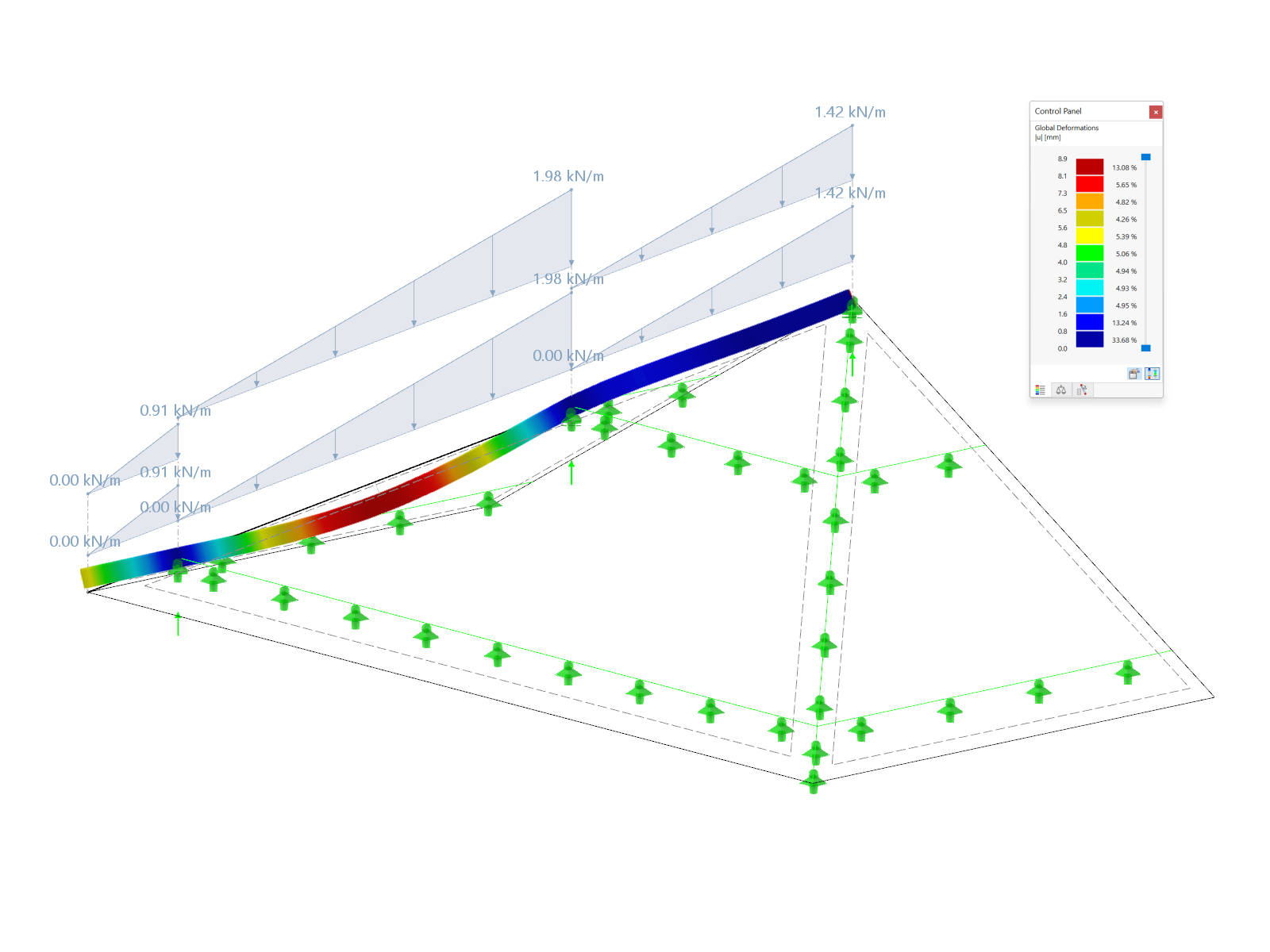

Timber Hip Rafter | Global Deformation due to Dead Load
Timber Hip Rafter
3D Model
Specifications
| Number of Nodes | 13 |
| Number of Lines | 21 |
| Number of Members | 3 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 0.105 tons |
| Dimensions (Metric) | 13.600 x 3.926 x 6.800 m |
| Dimensions (Imperial) | 44.62 x 12.88 x 22.31 feet |
