Timber Hip Rafter
Model to Download

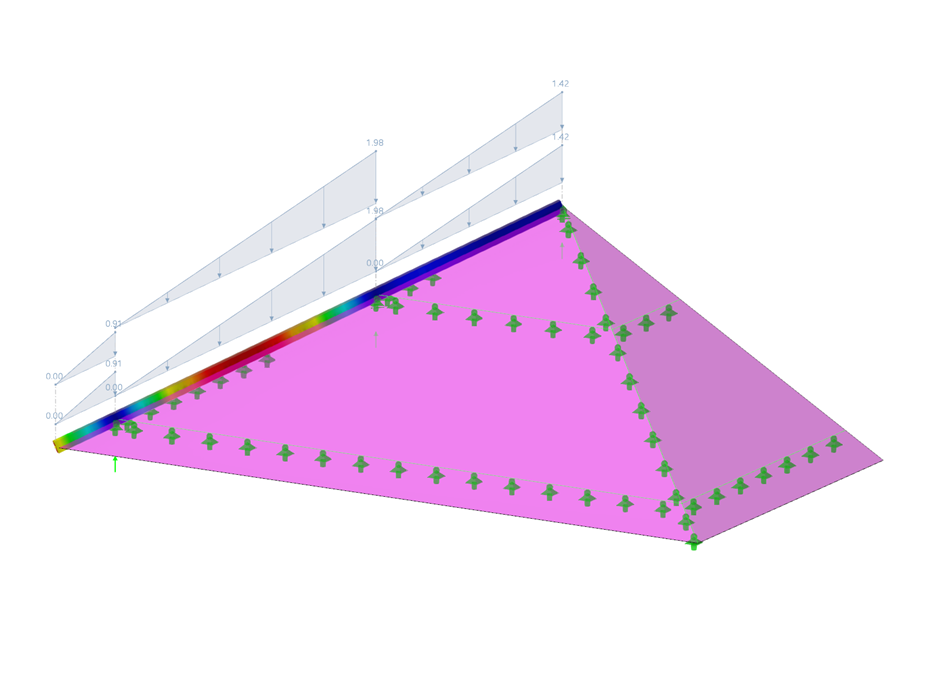

Download the model of a timber hip rafter here and open it with the structural FEA software RFEM.
This model is used in the free webinar "Modeling and Design of Timber Structures in RFEM 6 and RSTAB 9" on August 17, 2022 (English, August 9, 2022, in German).
Model Used in
- Views 327x
- Downloads 13x
- Updated 12 October 2022
- Number of Nodes 13
- Number of Lines 21
- Number of Members 3
- Number of Surfaces 3
- Number of Solids 0
- Number of Load Cases 2
- Number of Load Combinations 7
- Number of Result Combinations 0
- Total Weight 0.105 t
- Dimensions 13.600 x 3.926 x 6.800 m
A standard scenario in timber member construction is the ability to connect smaller members by means of bearing on a larger girder member. Additionally, member end conditions may include a similar situation where the beam is bearing on a support type. In either scenario, the beam must be designed to consider the bearing capacity perpendicular to the grain according to the NDS 2018 (Sect. 3.10.2) and the CSA O86:19 (Clause 6.5.6 and 7.5.9). In the new generation RFEM 6 and Timber Design add-on, the added feature 'design supports' now allows users to comply with the NDS and CSA bearing perpendicular to the grain design checks.
