Bowstring Truss with Parabolic Chord Design for Structural Analysis

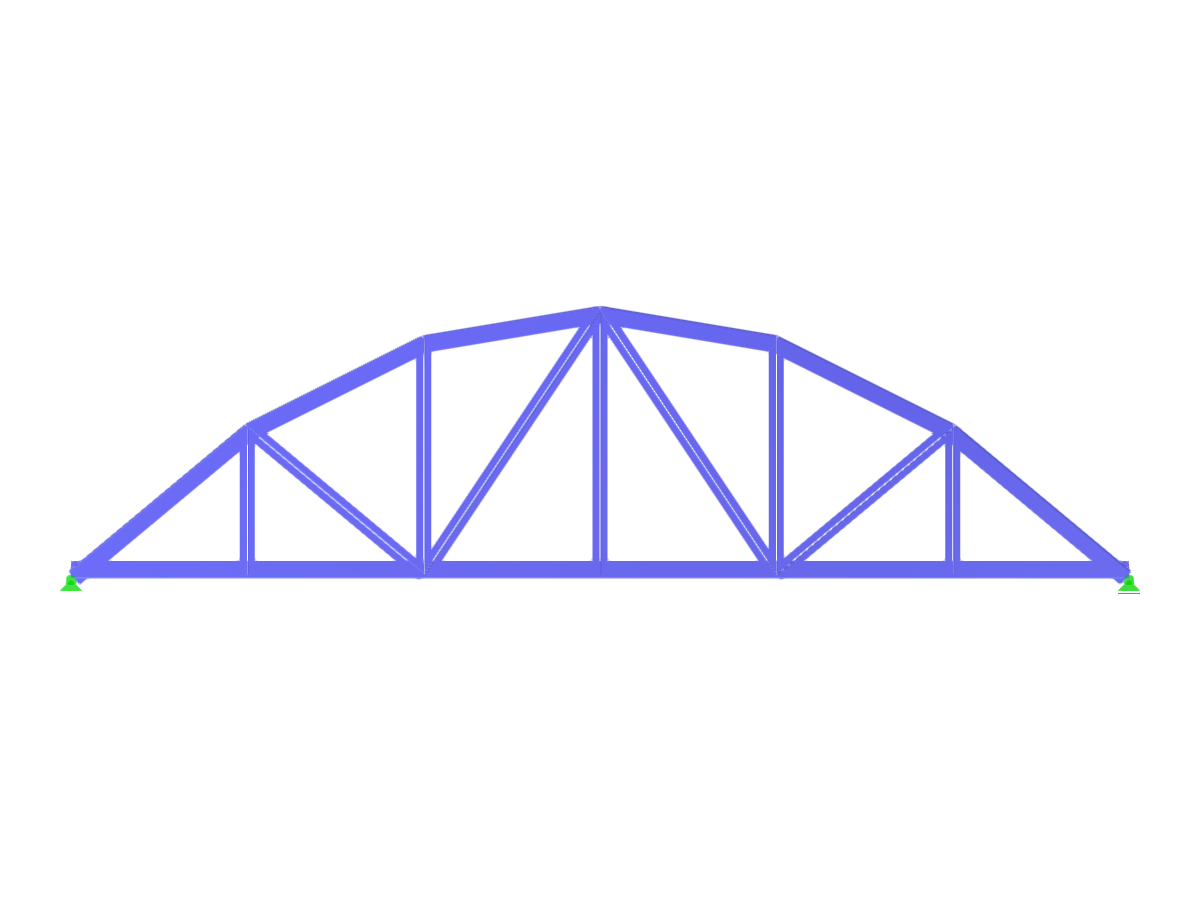

Bowstring truss with parabolic top chord design using polygon and straight members in RSTAB model view.
The image showcases a bowstring truss featuring a parabolic top chord, created using polygon and straight members. This structural design is modeled in the RSTAB software. The truss is an example of complex engineering geometry, highlighting advanced simulation capabilities.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 21 |
| Number of Members | 21 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.403 tons |
| Dimensions (Metric) | 12.000 x 3.000 x 0.000 m |
| Dimensions (Imperial) | 39.37 x 9.84 x 0 feet |
