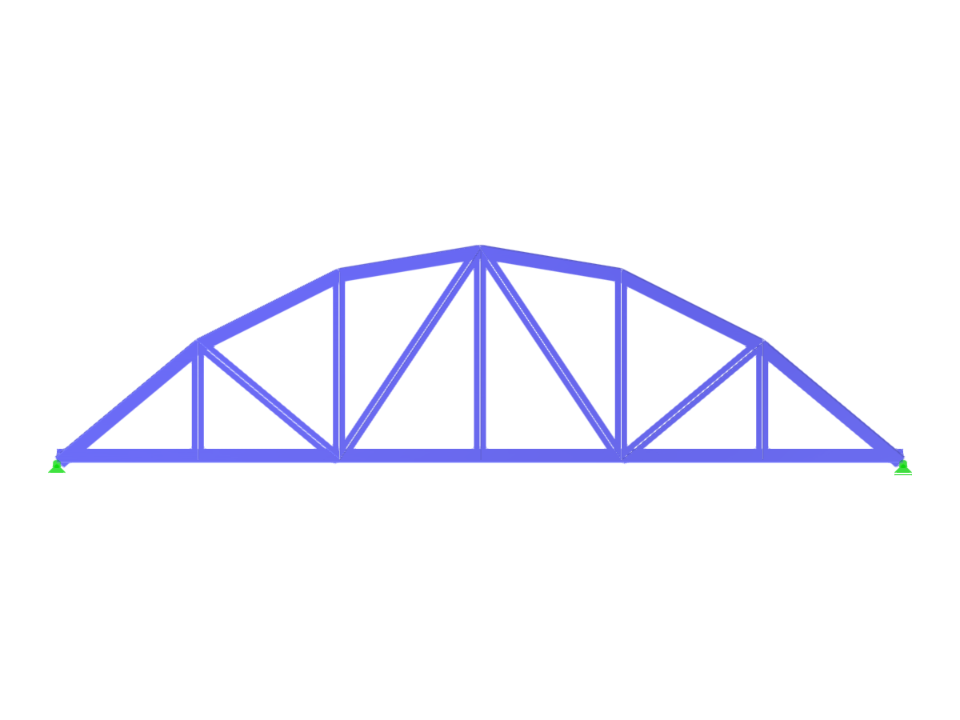

This model features a bowstring truss with a parabolic top chord crafted using polygon and straight members, optimized for analysis within the RSTAB software by Dlubal. Such structures are often used in bridge and roof designs due to their efficiency in spanning long distances while minimizing material usage. The provided setup enhances structural stability and performance assessments.
Bowstring Truss Structure
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 21 |
| Number of Members | 21 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.403 tons |
| Dimensions (Metric) | 12.000 x 3.000 x 0.000 m |
| Dimensions (Imperial) | 39.37 x 9.84 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
