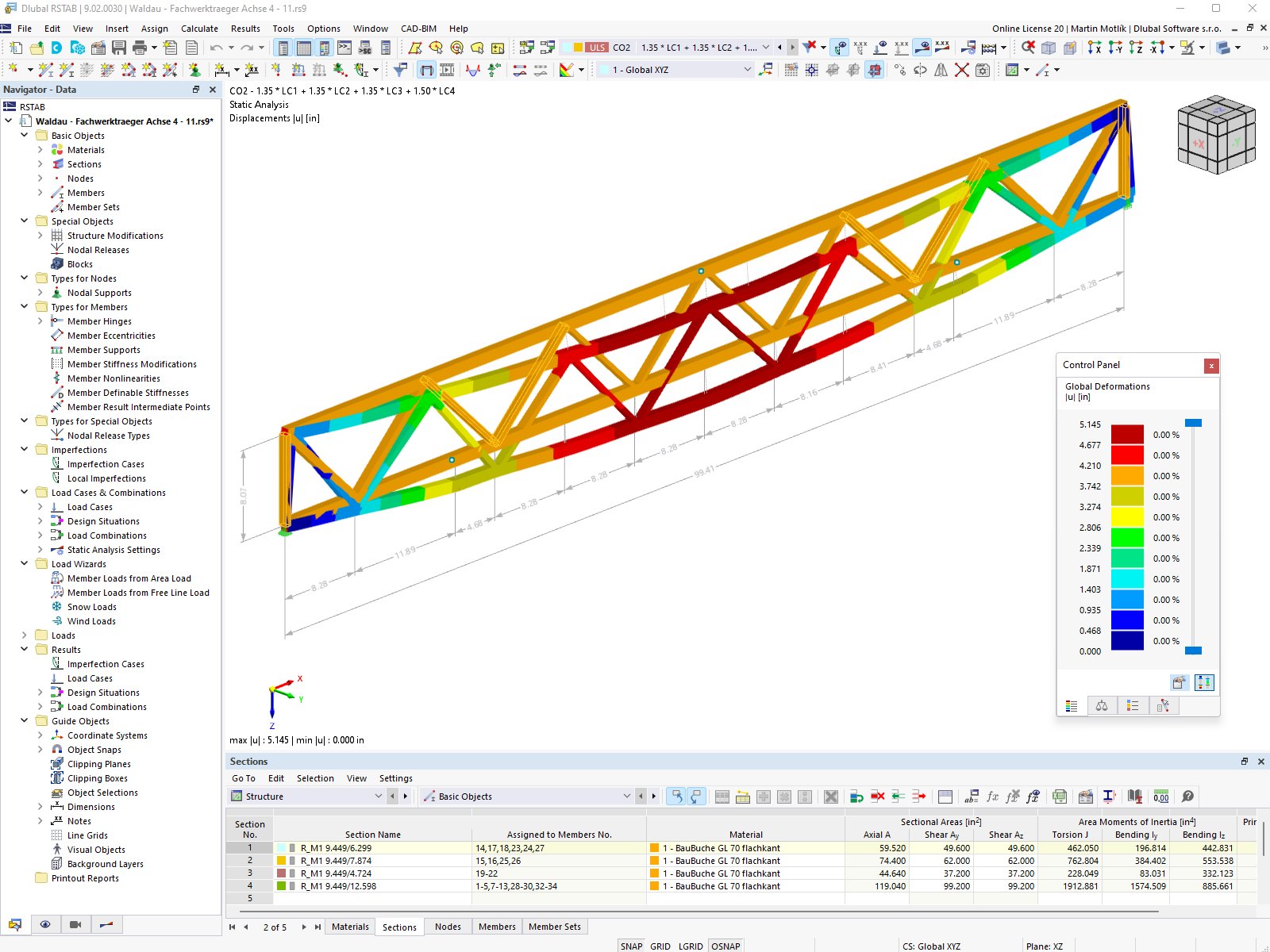

Model of Timber Truss with Deformations in RSTAB (© merz kley partner GmbH)
3D Model
Specifications
| Number of Nodes | 20 |
| Number of Lines | 32 |
| Number of Members | 32 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 5.174 tons |
| Dimensions (Metric) | 30,300 x 2,460 x 0,000 m |
| Dimensions (Imperial) | 99.41 x 8.07 x 0 feet |
