Triple Sports Hall in Stuttgart-Waldau, Germany

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

17 October 2022

001252

Germany

RSTAB

RSTAB 8

Timber Structures

The triple sports hall with a saw-tooth roof built in the German town of Stuttgart-Waldau impressively shows the sustainable perspectives of modern timber structures. The trusses arranged in the shape of boxes ensure optimal daylight.

Investor Landeshauptstadt Stuttgart
Amt für Sport und Bewegung
represented by Hochbauamt
D-70173 Stuttgart, Germany
www.stuttgart.de/vv/verwaltungseinheit/amt-fuer-sport-und-bewegung.php
Architect Glück + Partner GmbH
www.glueck-partner.com
Structural Design merz kley partner
www.mkp-ing.com

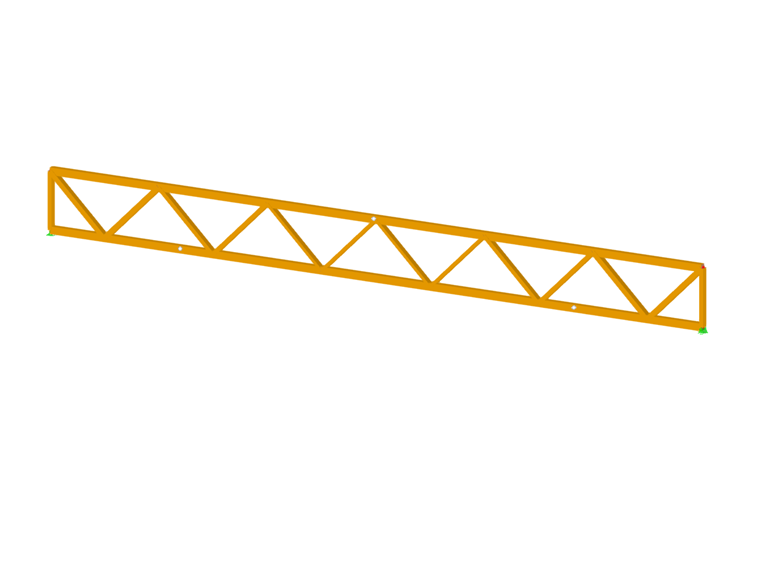

Truss model data

Model

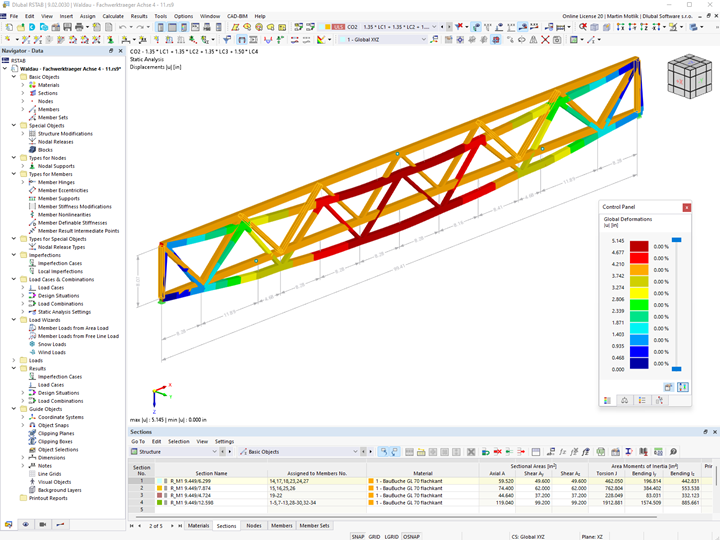

Dlubal customer merz kley partner, situated in the Austrian town of Dornbirn, was responsible for the structural analysis and used RSTAB for it.

Structure

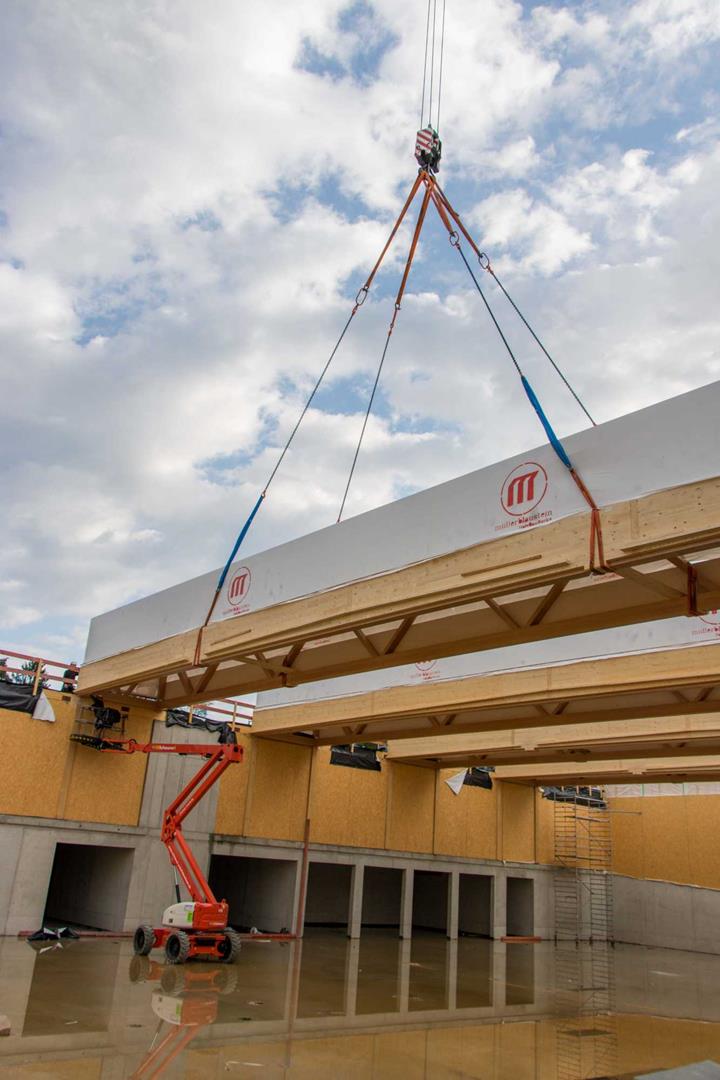

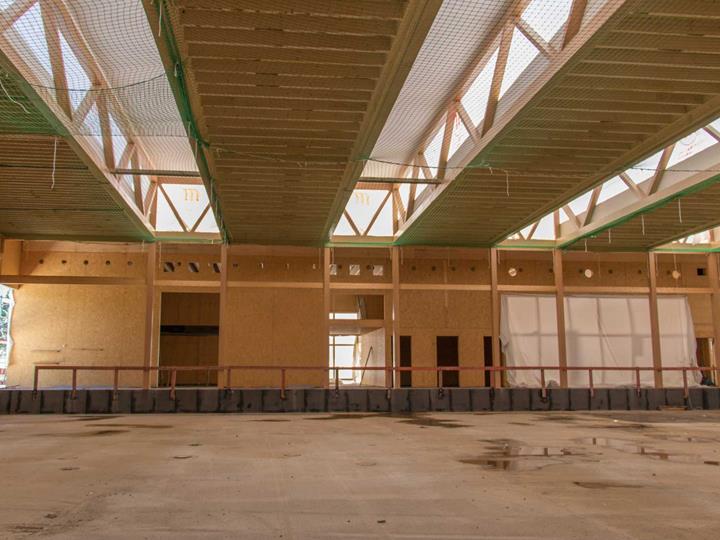

The new building, which opened in autumn 2020, comprises the hall including a gym with bleachers and several multifunction rooms, as well as an equipment room and changing rooms on one plane. An essential design element of the hall interior consists of ten trusses made of high-strength beech-laminated veneer lumber, which were connected in pairs, forming a spatial structural system. The utilization of this building material enables a low effective depth due to the cross-sections, which are as slender as possible. The sturdy boxes, having a span of about 1,181 inches, were clad with light-diffusing multi-wall polycarbonate sheets to ensure maximum daylight. With cladding on the sides and on the top using cross-laminated timber, these trusses weighing 22 tons each rest firmly on the columns, providing bracings for the structure without applying steel diagonals.

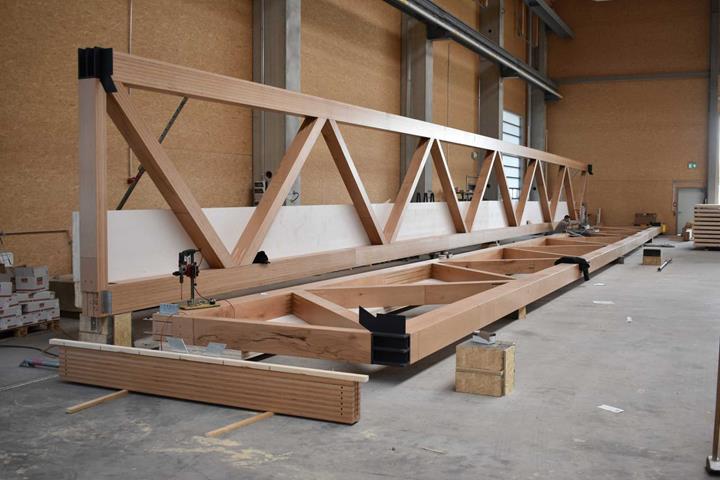

When prefabricating the trusses, self-drilling dowels were used and the assembly became easier and more precise due to a special setting tool. All other fasteners used in the rather hard timber had to be pre-drilled due to the high material density.


Source: Deutsches Ingenieurblatt, 6-2022, pp. 12-18

Project Location

Sporthalle Waldau
Georgiiweg 5
70597 Stuttgart, Germany

Keywords

Timber Hall Truss
