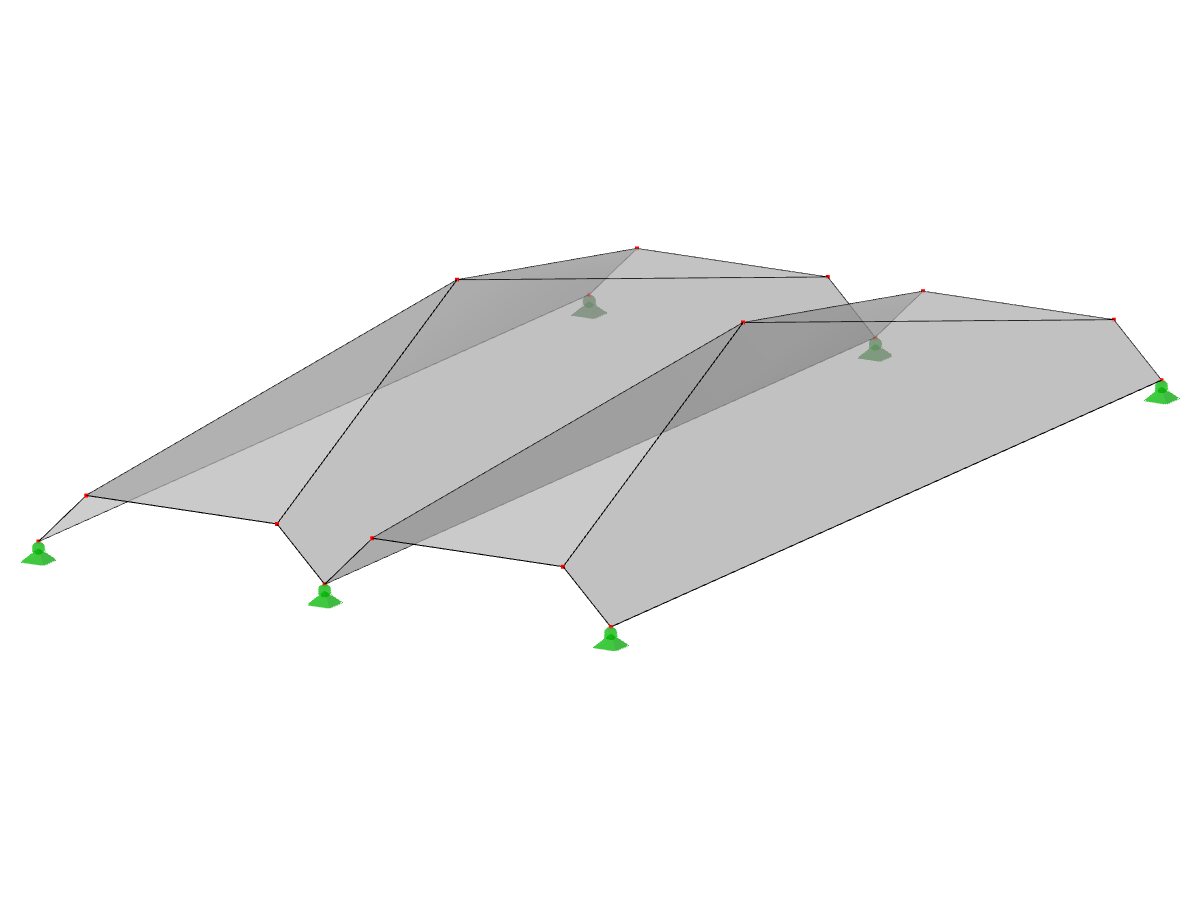

034-FPL106-a | Prismatic Folded Structure Systems. Surface with Conical Folding. Continuous Fold Section with Upper Edge Cut by Sloping Plane
Model ID 527 | 034-FPL106-a | Prismatic Folded Structure Systems. Surface with Conical Folding. Continuous Fold Section with Upper Edge Cut by Sloping Plane
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 23 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 230.894 tons |
| Dimensions (Metric) | 12,000 x 3,000 x 20,000 m |
| Dimensions (Imperial) | 39.37 x 9.84 x 65.62 feet |
