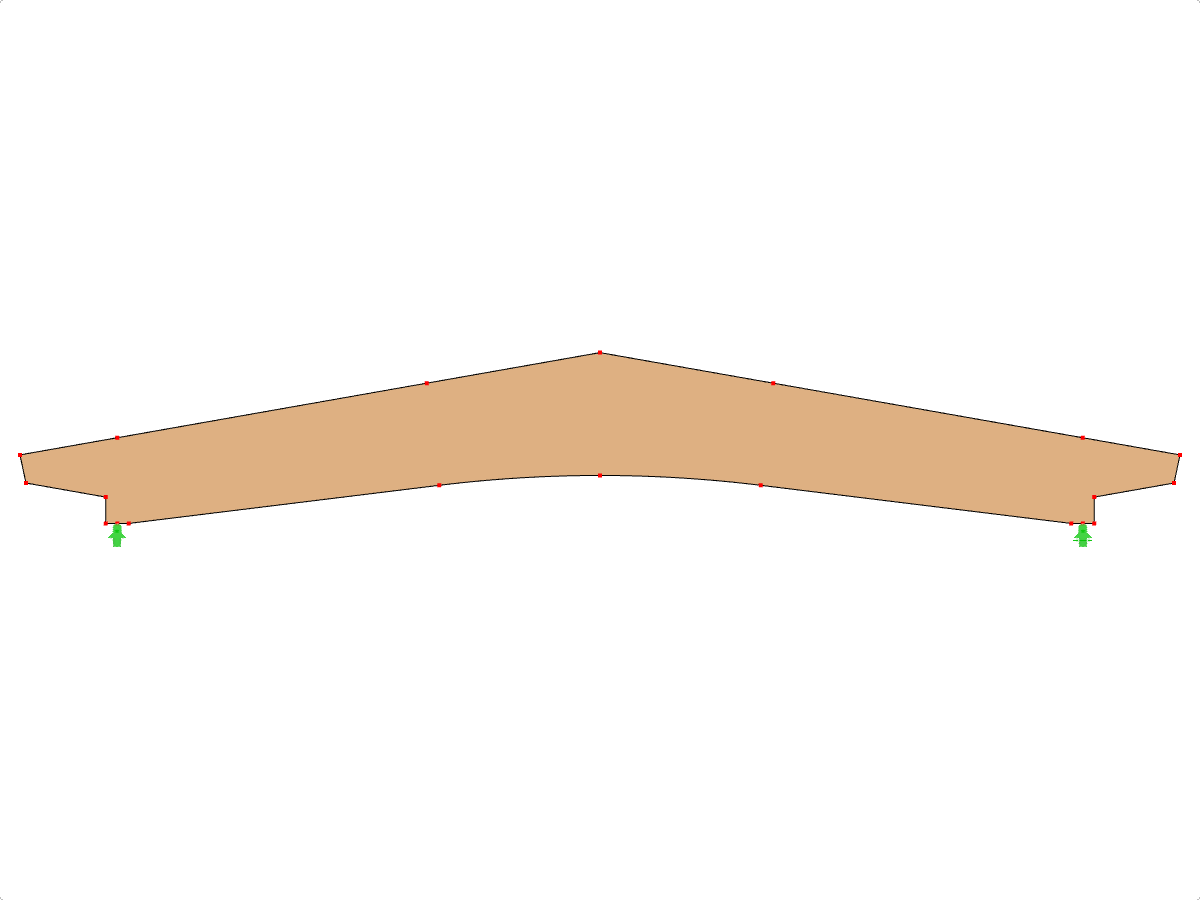

GLB0605 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Offset-Tapered Cantilevers | Without Loose Ridge Wedge
Model ID 607 | GLB0605 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Offset-Tapered Cantilevers | Without Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 19 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.964 tons |
| Dimensions (Metric) | 17,600 x 2,592 x 0,000 m |
| Dimensions (Imperial) | 57.74 x 8.5 x 0 feet |
