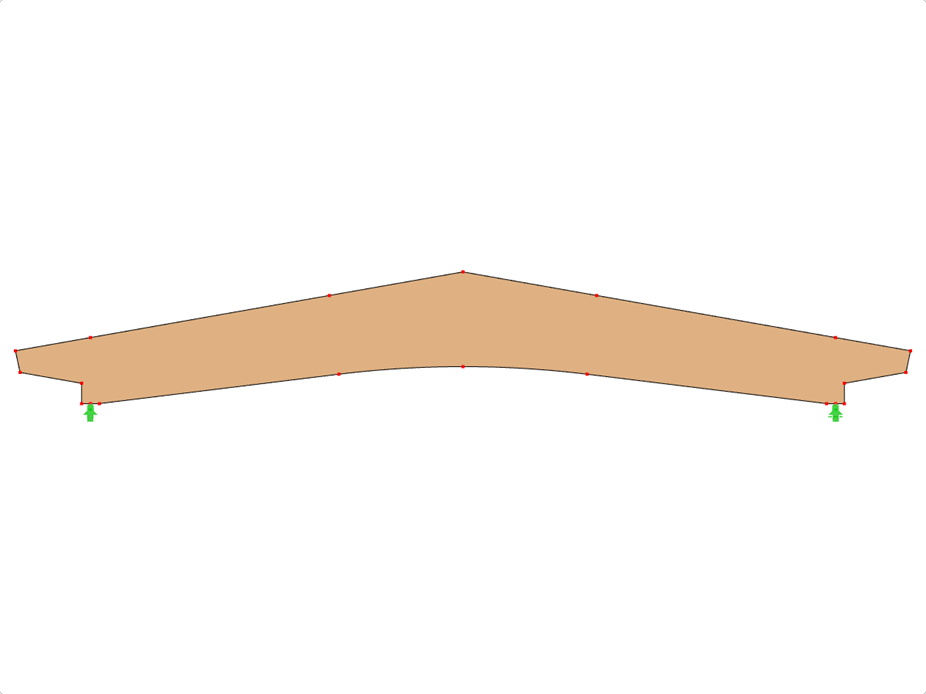

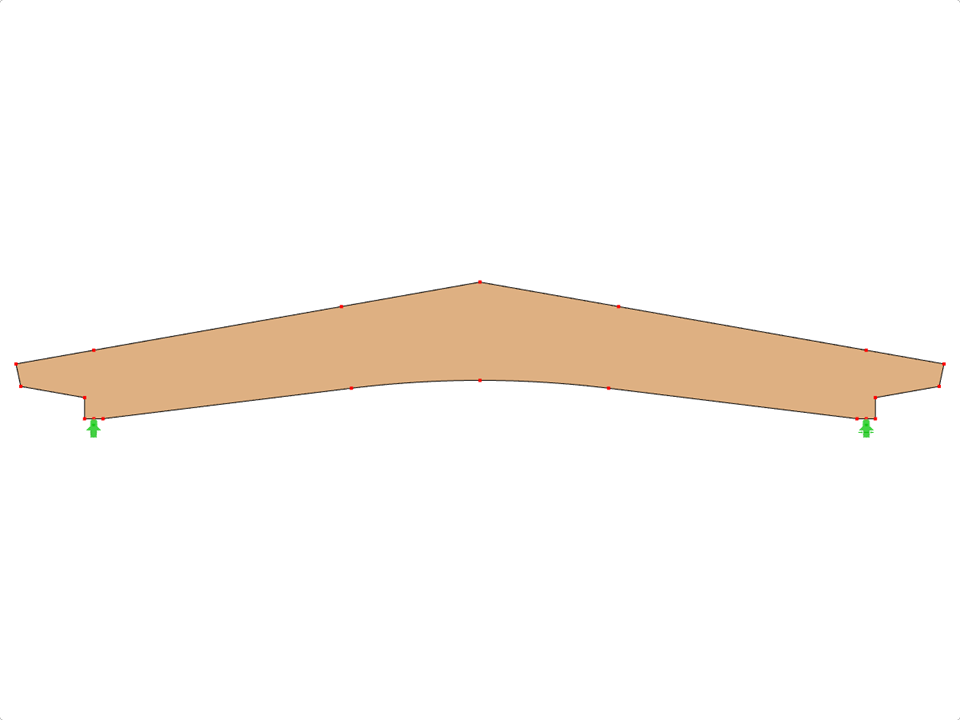

Glued-laminated beam | Pitched cambered | Variable height | Symmetric | Offset-tapered cantilevers | Without loose ridge wedge
GLB0605 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Offset-Tapered Cantilevers | Without Loose Ridge Wedge
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 19 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.964 tons |
| Dimensions (Metric) | 17,600 x 2,592 x 0,000 m |
| Dimensions (Imperial) | 57.74 x 8.5 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
