Concrete Structure With Two Doorway Openings

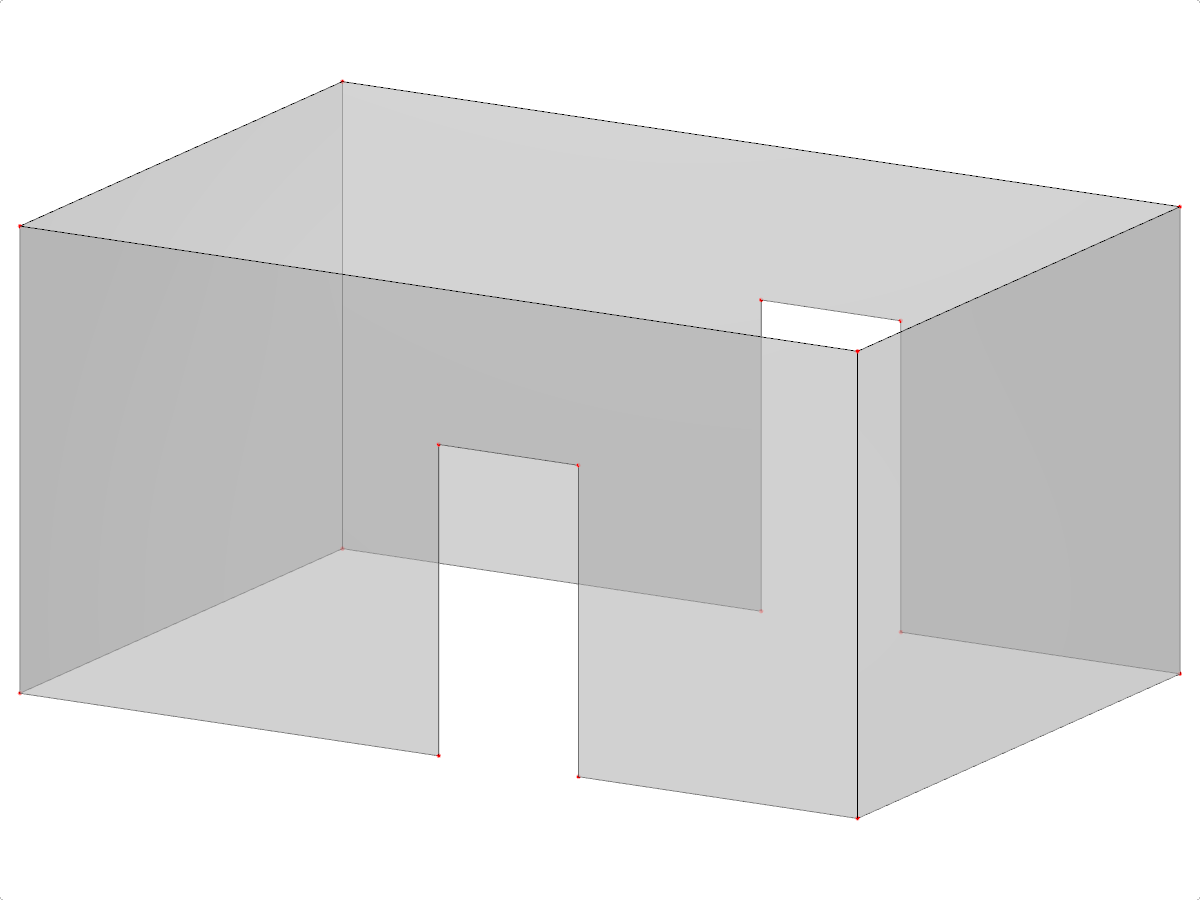

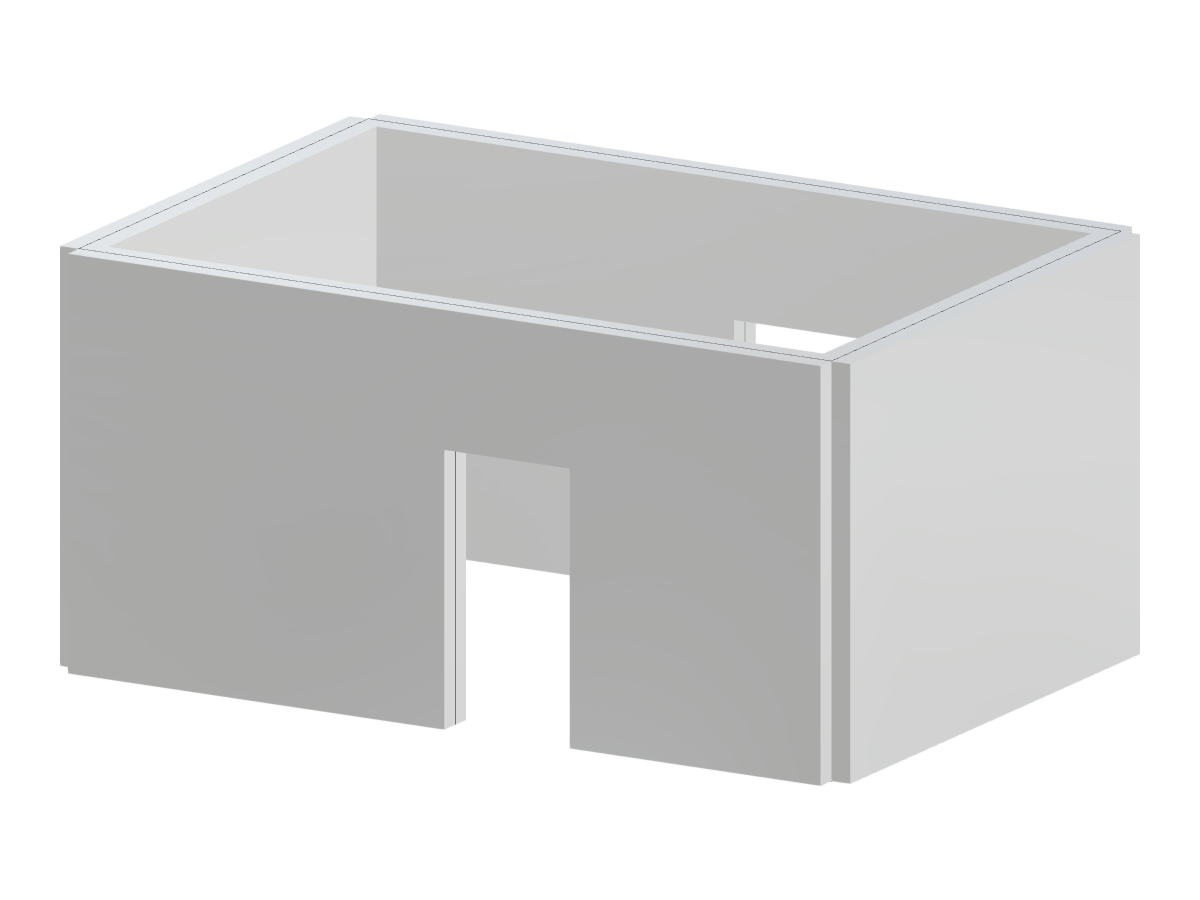

A rectangular room with four concrete walls, featuring two large door openings positioned on opposite sides.
The image depicts a rectangular room consisting of four walls made to resemble concrete. Two large openings are visible, which serve as doors, and they are positioned on opposite sides of the room. This setup provides insight into basic structural components and spatial arrangement within a typical concrete construction environment.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 42.000 tons |
| Dimensions (Metric) | 6.000 x 3.000 x 4.000 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 13.12 feet |
