Parametric Concrete Basin with Curved Surfaces

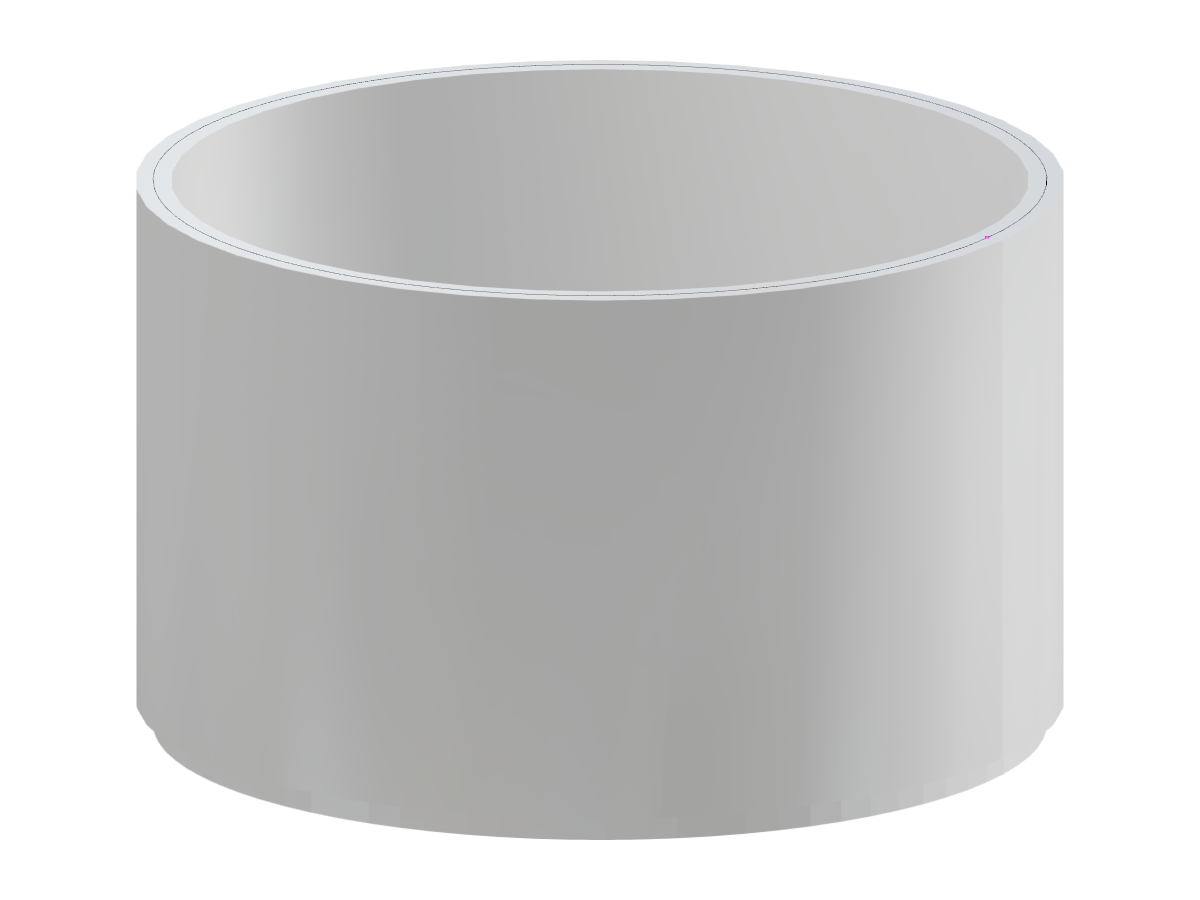

Parametric round concrete basin designed using surface elements, showcasing structural geometry and detailing.

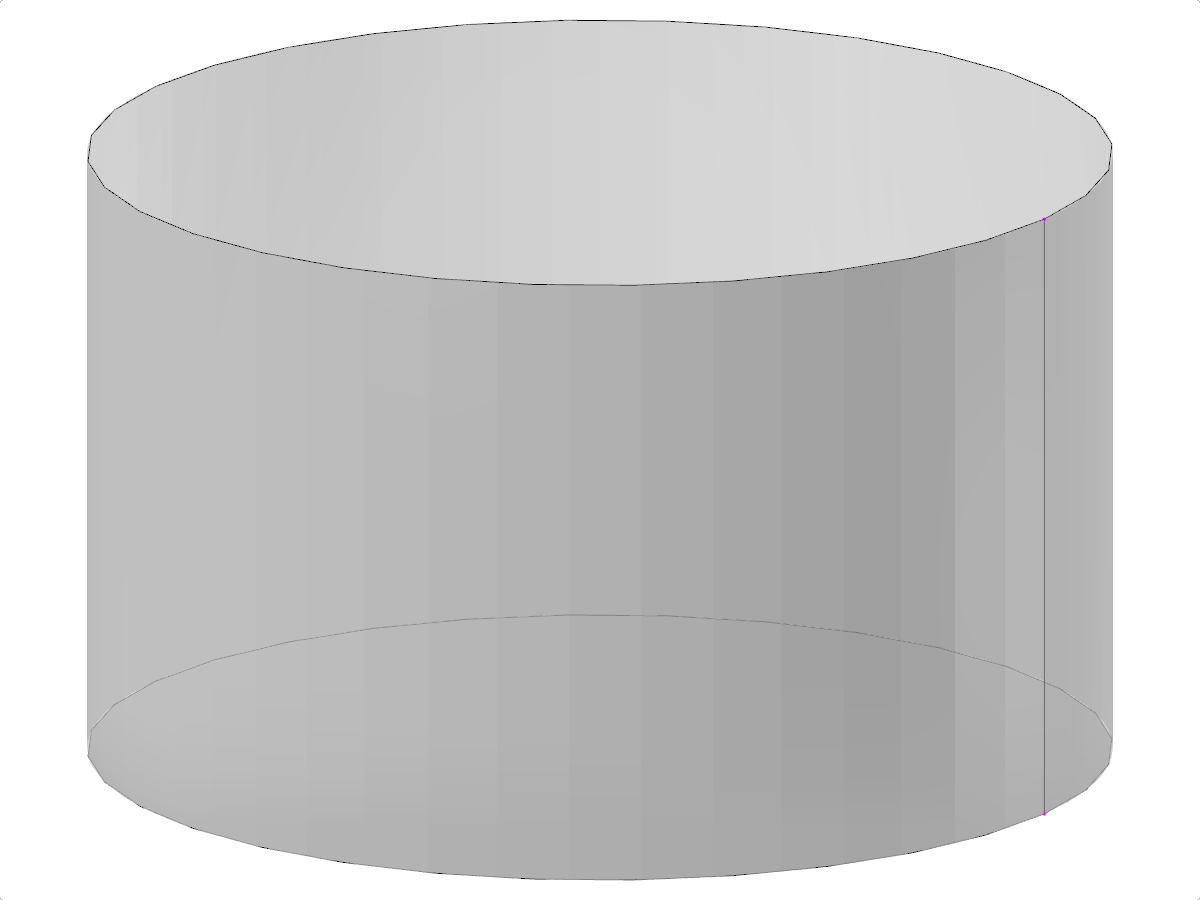

The image shows a parametric circular concrete basin constructed using surfaces. It highlights the detailed geometry and structural aspects of the basin. The configuration allows for precise modeling of the basin’s curvature and surface integration using advanced parametric tools.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 38.287 tons |
| Dimensions (Metric) | 5,000 x 3,000 x 5,000 m |
| Dimensions (Imperial) | 16.4 x 9.84 x 16.4 feet |
