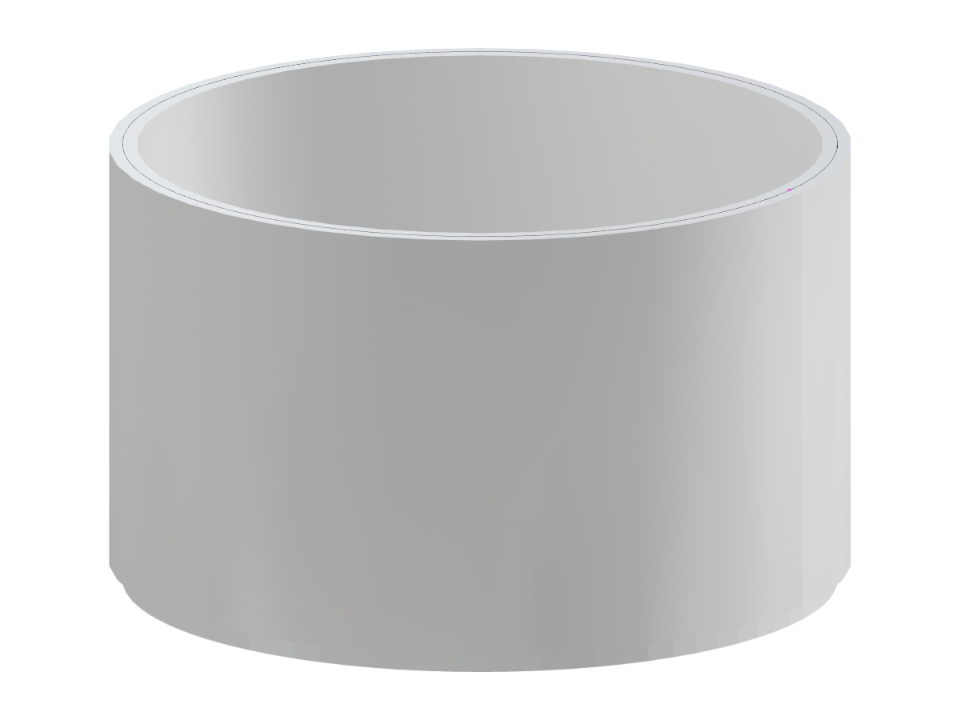

This model represents a parametric circular concrete basin designed using surface elements. The model allows for an exploration of its structural properties and behaviors using parametric design principles. The focus on surface-based design emphasizes the flexibility and dynamic nature of parametric modeling in concrete structures.

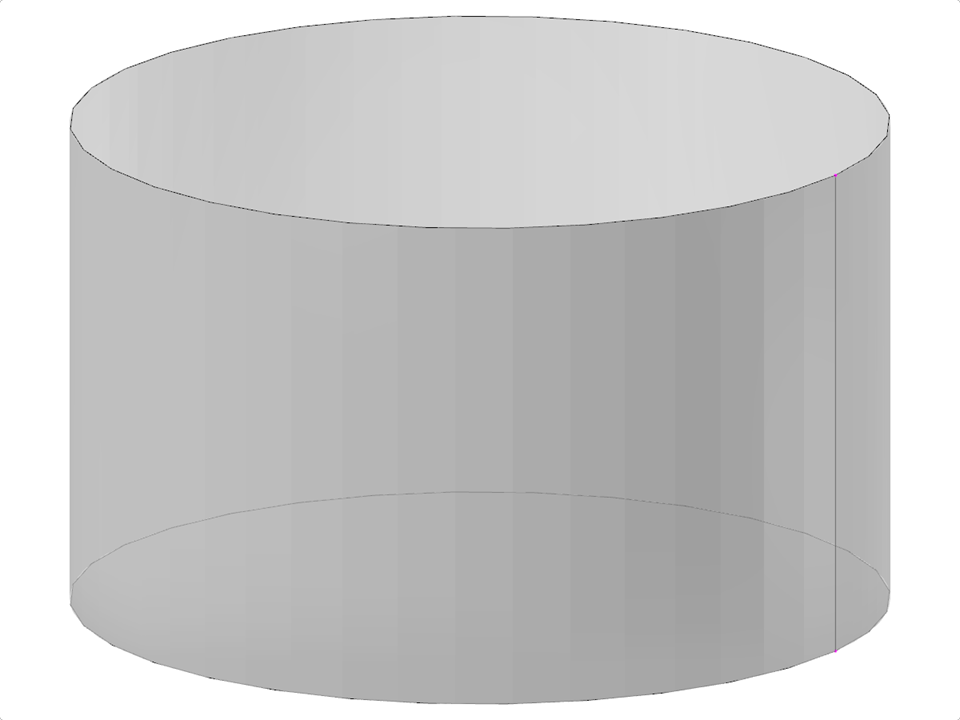

Parametric Circular Concrete Basin
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 38.287 tons |
| Dimensions (Metric) | 5,000 x 3,000 x 5,000 m |
| Dimensions (Imperial) | 16.4 x 9.84 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
