3TS001 | Due to the pattern of the structure, the number of spans in the X or Y direction should be increased or decreased by "one" step from the previous level.

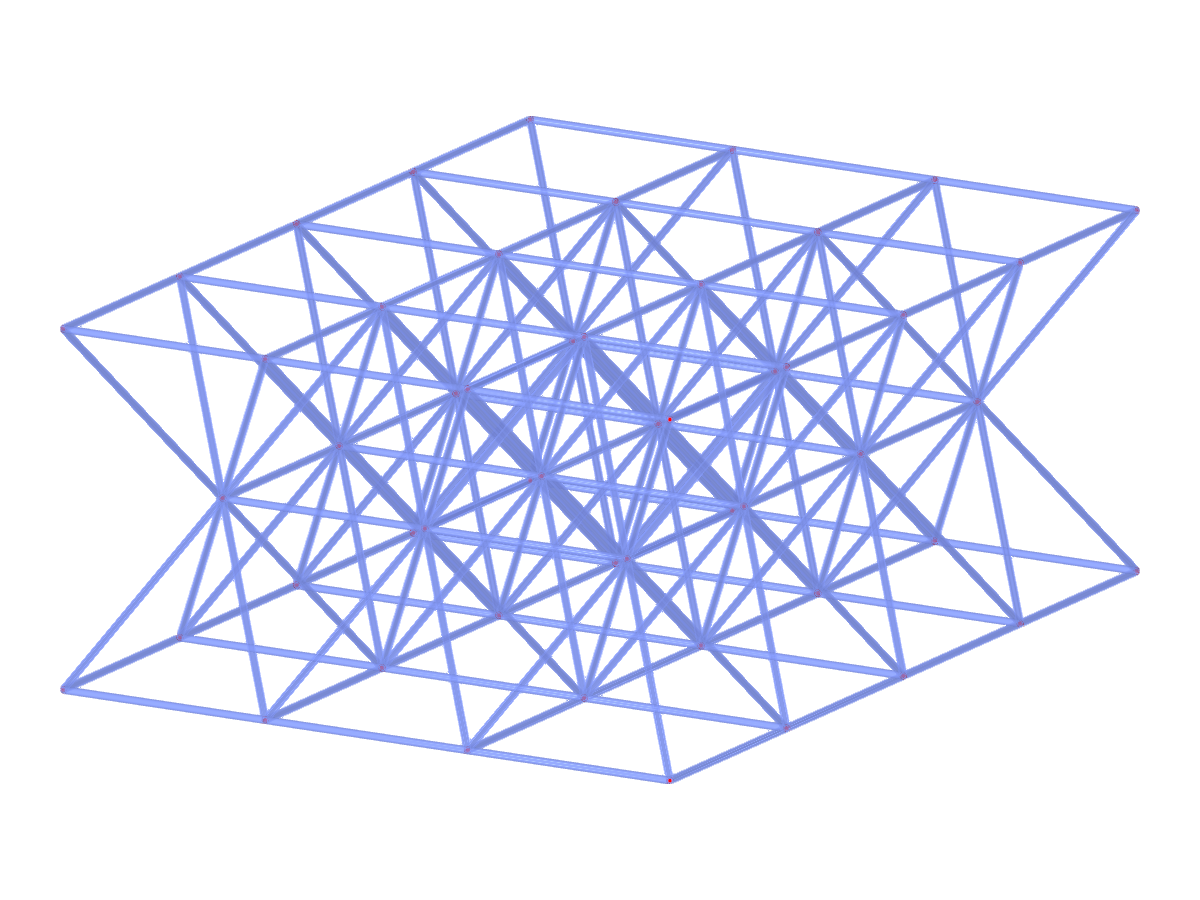

Model ID 3118 | 3TS001 | Due to the pattern of the structure, the number of spans in the X or Y direction should be increased or decreased by "one" step from the previous level.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 52 |
| Number of Lines | 175 |
| Number of Members | 175 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.011 tons |
| Dimensions (Metric) | 7,500 x 4,000 x 10,000 m |
| Dimensions (Imperial) | 24.61 x 13.12 x 32.81 feet |
