Concrete Staircase with Central Spine Beam Support
Concrete single-flight staircase with a central spine beam for stability.

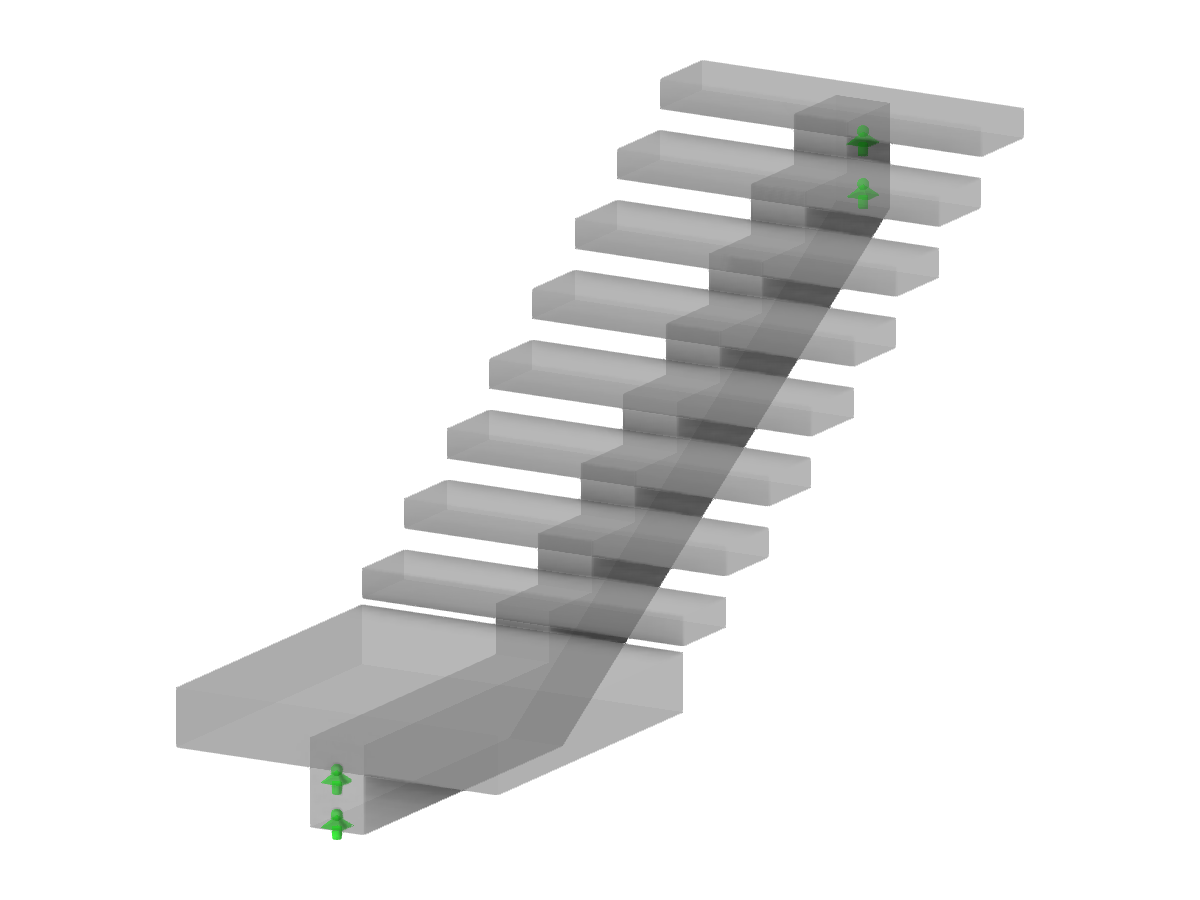

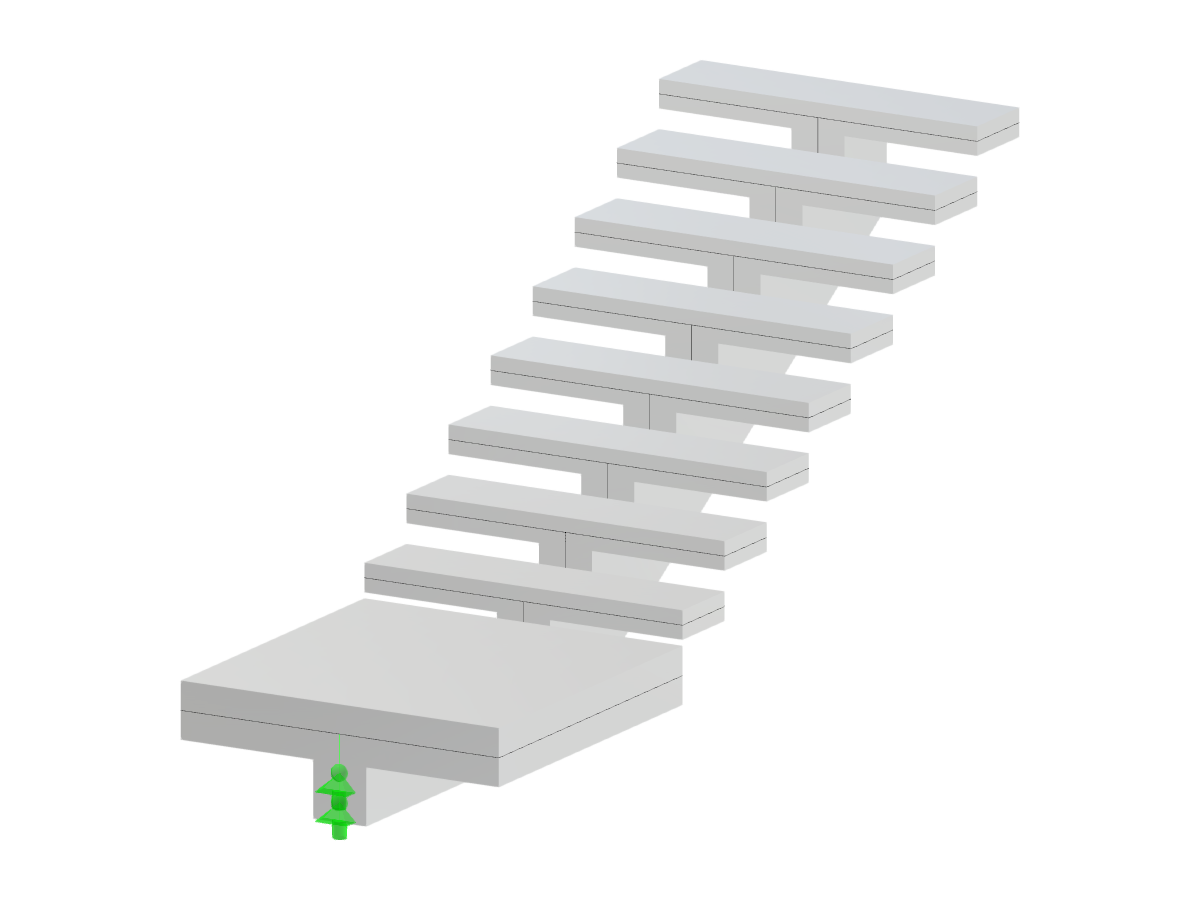

A concrete staircase designed as a single flight supported by a central spine beam is shown. The beam provides stability by running underneath the staircase treads and anchoring to the surrounding structure. This design efficiently supports the load and ensures robustness.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 57 |
| Number of Lines | 57 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.040 tons |
| Dimensions (Metric) | 1.200 x 1.660 x 3.400 m |
| Dimensions (Imperial) | 3.94 x 5.45 x 11.15 feet |
