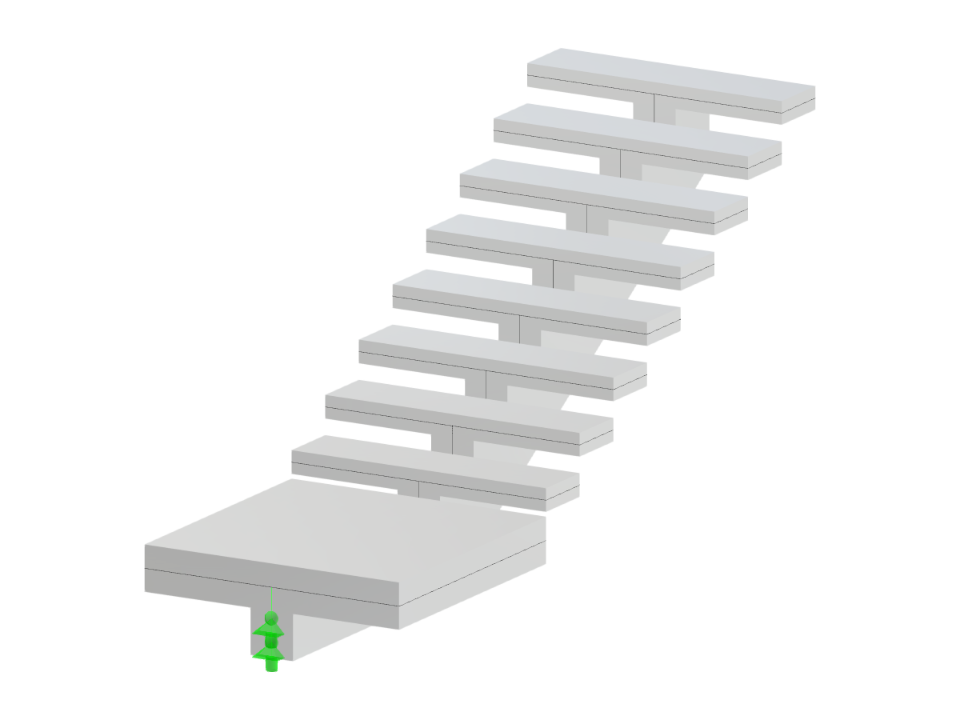

Concrete single-flight staircase supported by a central spine beam with bottom landing. The spine beam runs underneath the treads of the staircase and is anchored to the surrounding structure, providing stability and support.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

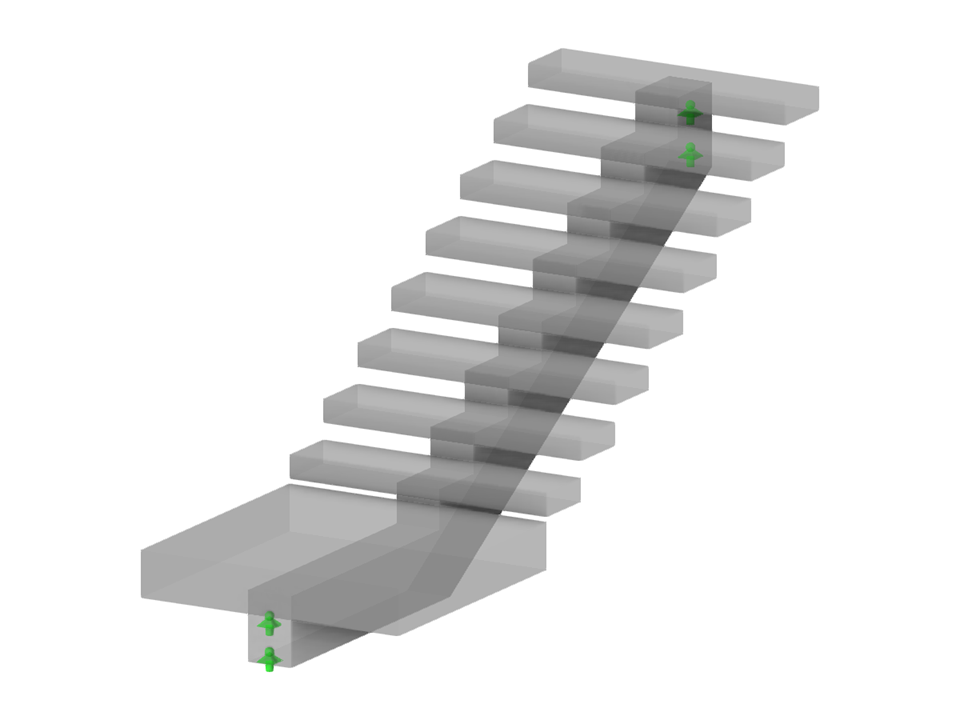

STC031 | Single-Flight Staircase with Bottom Landing

Block parameters editable dynamically
Number of Nodes 57
Number of Lines 57
Number of Members 0
Number of Surfaces 10
Number of Solids 0
Number of Load Cases 1
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 2.040 tons
Dimensions 3.94 x 5.45 x 11.15 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
