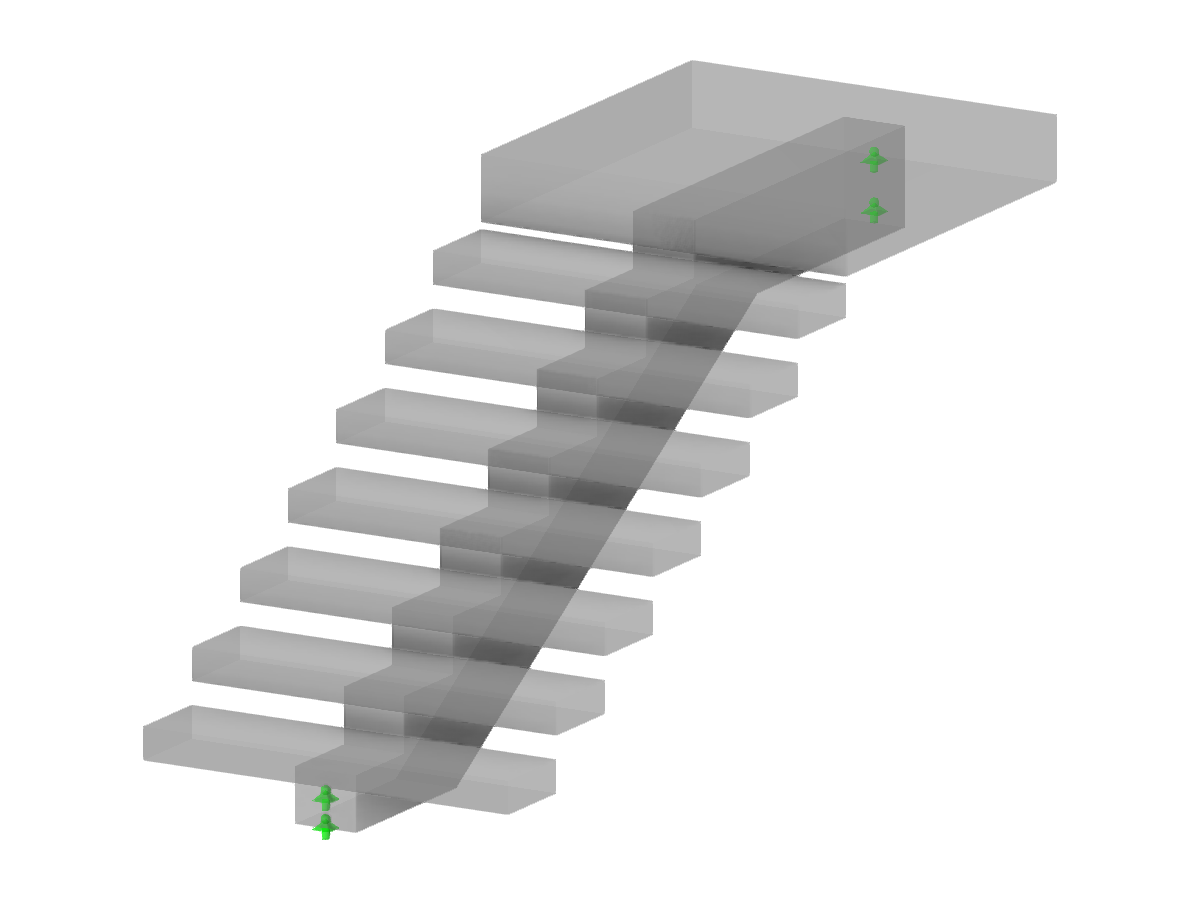

Concrete Single-Flight Staircase with Central Spine Beam

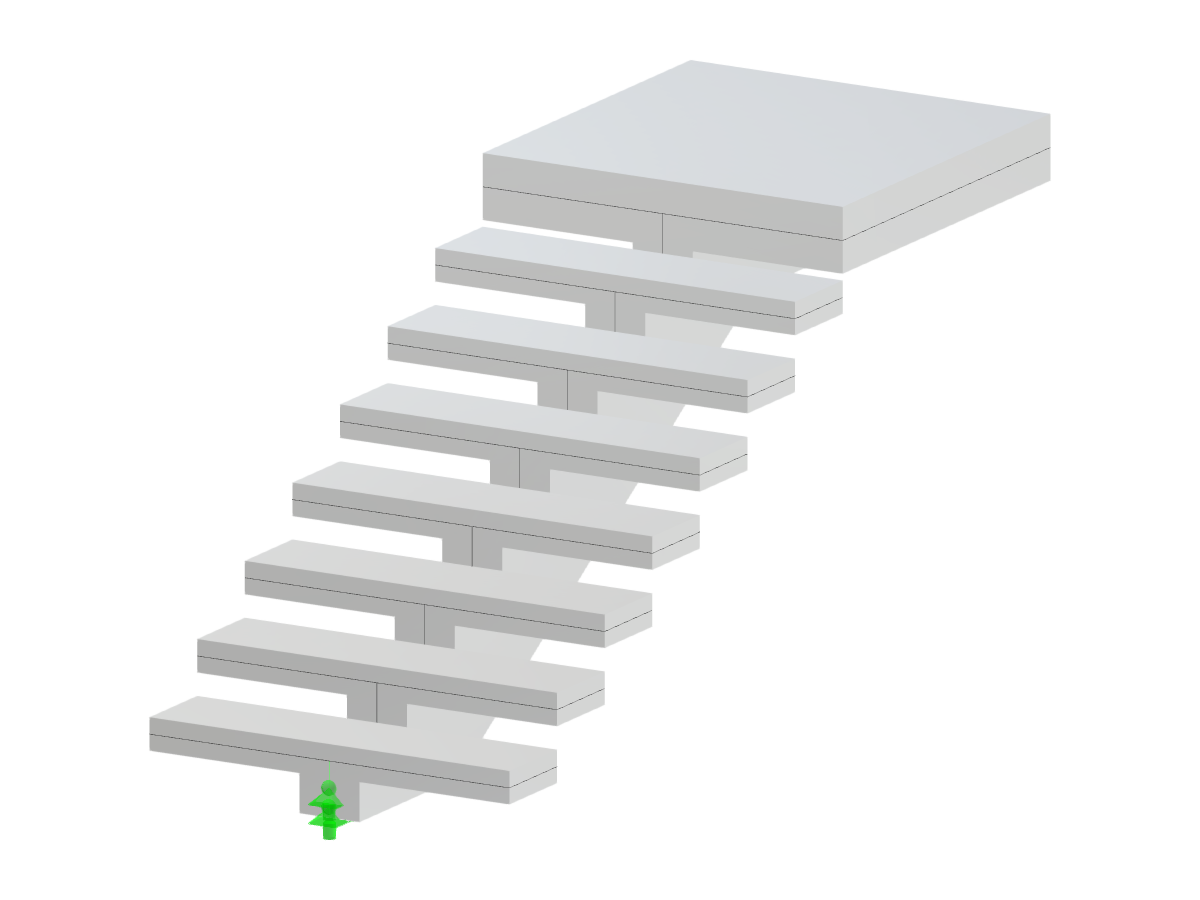

Concrete staircase with a central spine beam, providing stability and support in a single-flight design.
The concrete single-flight staircase features a central spine beam for support. The beam runs underneath the treads and anchors to the surrounding structure, enhancing stability. The top landing facilitates transition to higher floors. This design exemplifies efficient use of reinforced concrete in load-bearing structures.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 52 |
| Number of Lines | 52 |
| Number of Members | 0 |
| Number of Surfaces | 9 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.869 tons |
| Dimensions (Metric) | 1.200 x 1.360 x 3.125 m |
| Dimensions (Imperial) | 3.94 x 4.46 x 10.25 feet |
