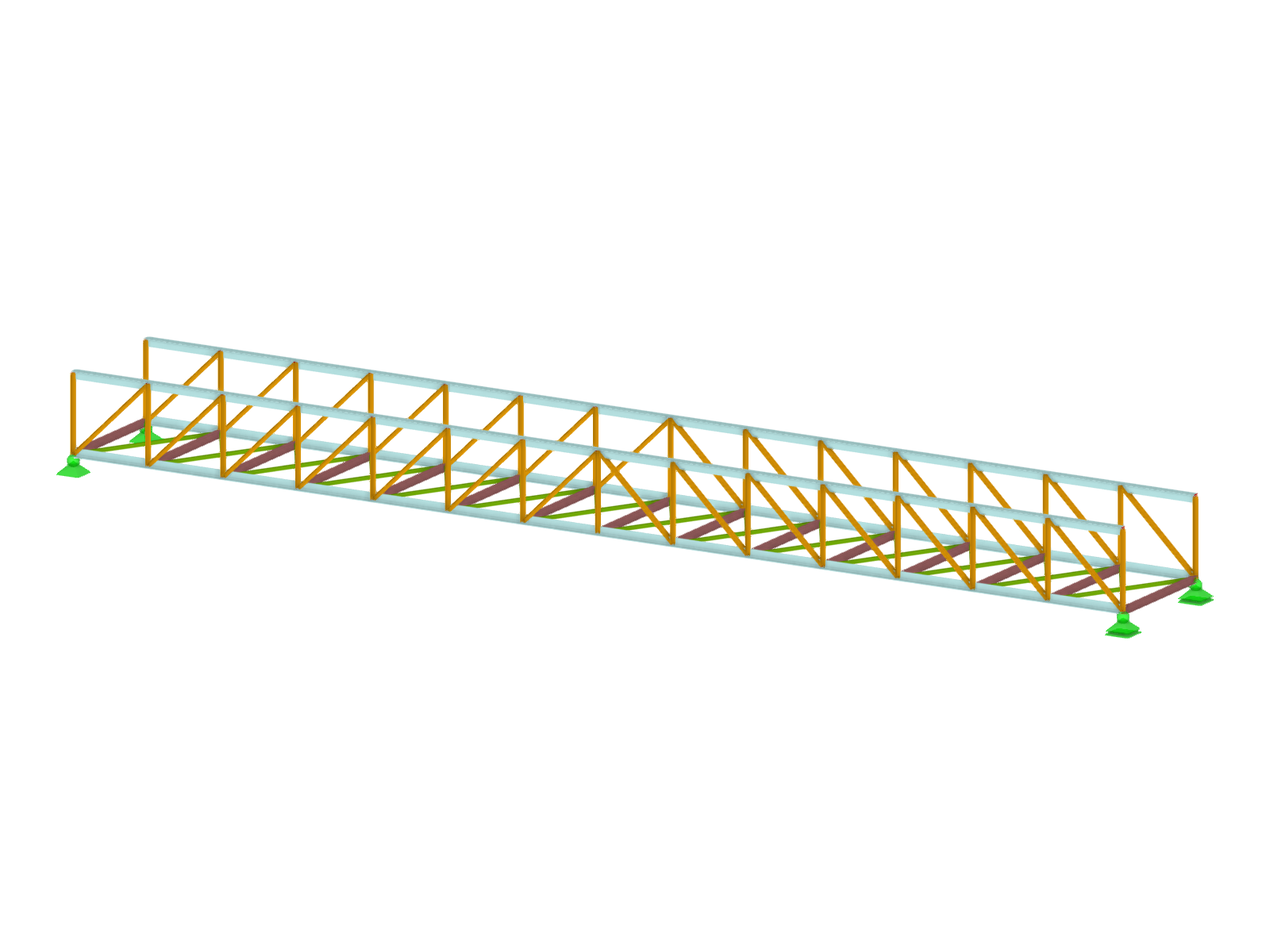

Pedestrian Bridge | Steel Lattice Structure
Pedestrian Bridge
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 60 |
| Number of Lines | 157 |
| Number of Members | 157 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 4.341 tons |
| Dimensions (Metric) | 20.000 x 1.400 x 2.400 m |
| Dimensions (Imperial) | 65.62 x 4.59 x 7.87 feet |
