Pedestrian Bridge made from a steel lattice structure.
The steel lattice structure is a popular choice for pedestrian bridges due to its many advantages.
One of the key benefits is it high strength-to-weight ratio, which allows for a lightweight and efficient design that can support large numbers of people. Additionally, the lattice structure provides excellent resistance to wind and seismic loads, making it a safe and reliable choice for bridge construction.
A model created by the technical team of Dlubal Latam. The model is also available as a parameterized block at the Dlubal Latam site.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |

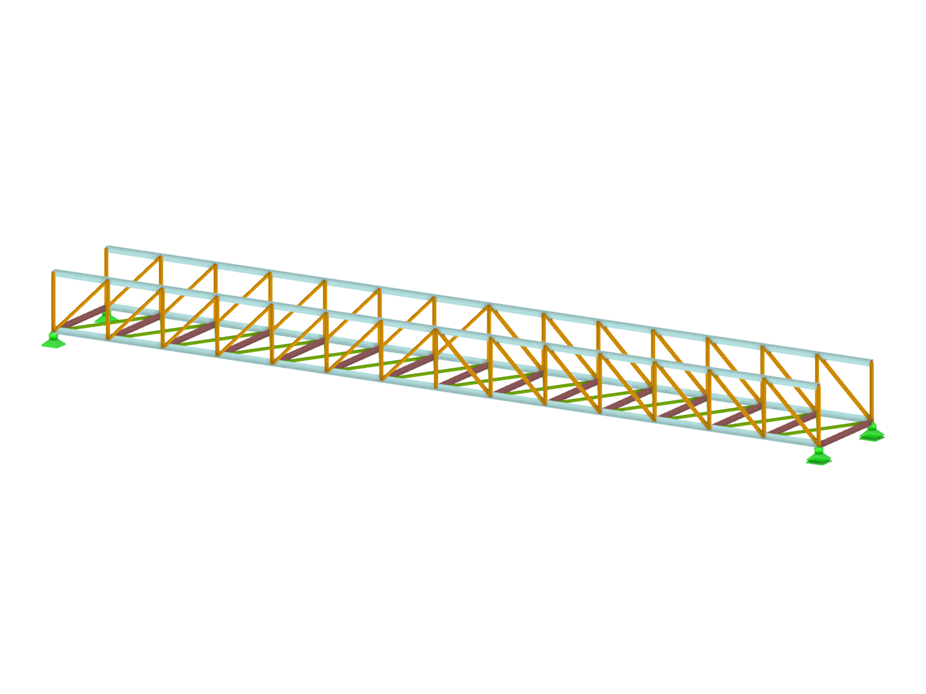

Pedestrian Bridge
Block parameters editable dynamically | |
Number of Nodes | 60 |
Number of Lines | 157 |
Number of Members | 157 |
Number of Surfaces | 1 |
Number of Solids | 0 |
Number of Load Cases | 4 |
Number of Load Combinations | 2 |
Number of Result Combinations | 0 |
Total Weight | 4.341 tons |
Dimensions (Metric) | 20.000 x 1.400 x 2.400 m |
Dimensions (Imperial) | 65.62 x 4.59 x 7.87 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
