2024-05-30
038671

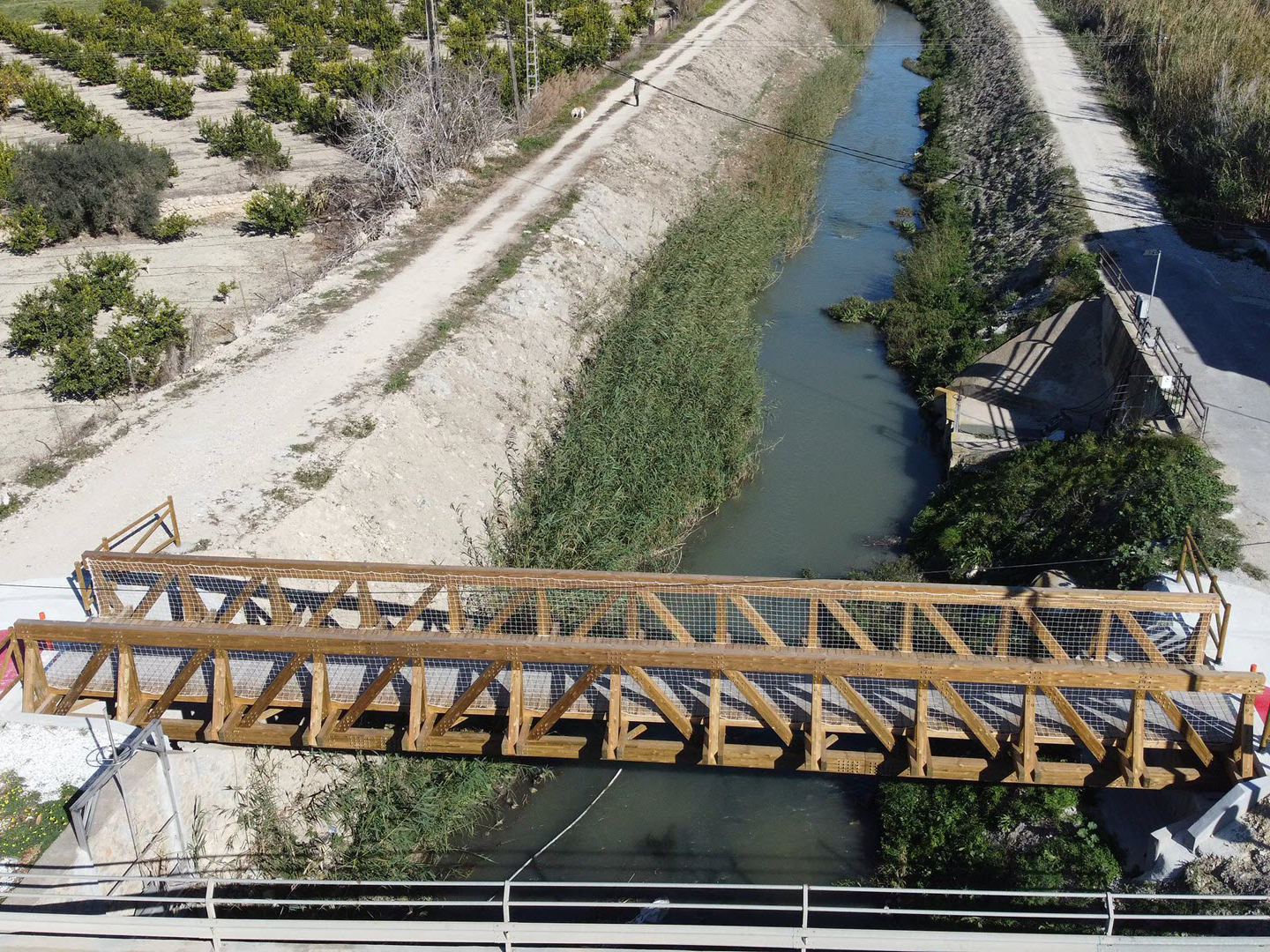

Timber Bridge over the Reguerón Irrigation Channel in Orihuela, Spain (© SIDO Madera)
2024-05-30
038672
Timber Walkway Seen from Aside (© SIDO Madera)
2024-05-30
038673
Joint Details of Timber Walkway (© SIDO Madera)
2024-05-30
038674
Model of Timber Footbridge in RFEM | © SIDO Madera
3D Model
Specifications
| Number of Nodes | 138 |
| Number of Lines | 183 |
| Number of Members | 183 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 59 |
| Total Weight | 4.153 tons |
| Dimensions (Metric) | 4.000 x 21.640 x 2.320 m |
| Dimensions (Imperial) | 13.12 x 71 x 7.61 feet |
| Program Version | 5.30.00 |
2024-05-30
038682
Representation of Vertical Deformations of Imposed Load | © SIDO Madera
3D Model
Specifications
| Number of Nodes | 138 |
| Number of Lines | 183 |
| Number of Members | 183 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 59 |
| Total Weight | 4.153 tons |
| Dimensions (Metric) | 4.000 x 21.640 x 2.320 m |
| Dimensions (Imperial) | 13.12 x 71 x 7.61 feet |
| Program Version | 5.30.00 |
2024-05-30
038773
Simulation of Wind Flow on a Bridge Timber Structure | Customer Project © SIDO Madera
Simulation of Wind Flow on a Bridge Structure
3D Model
Specifications
| Number of Nodes | 138 |
| Number of Lines | 183 |
| Number of Members | 183 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 59 |
| Total Weight | 4.153 tons |
| Dimensions (Metric) | 4.000 x 21.640 x 2.320 m |
| Dimensions (Imperial) | 13.12 x 71 x 7.61 feet |
| Program Version | 5.30.00 |
