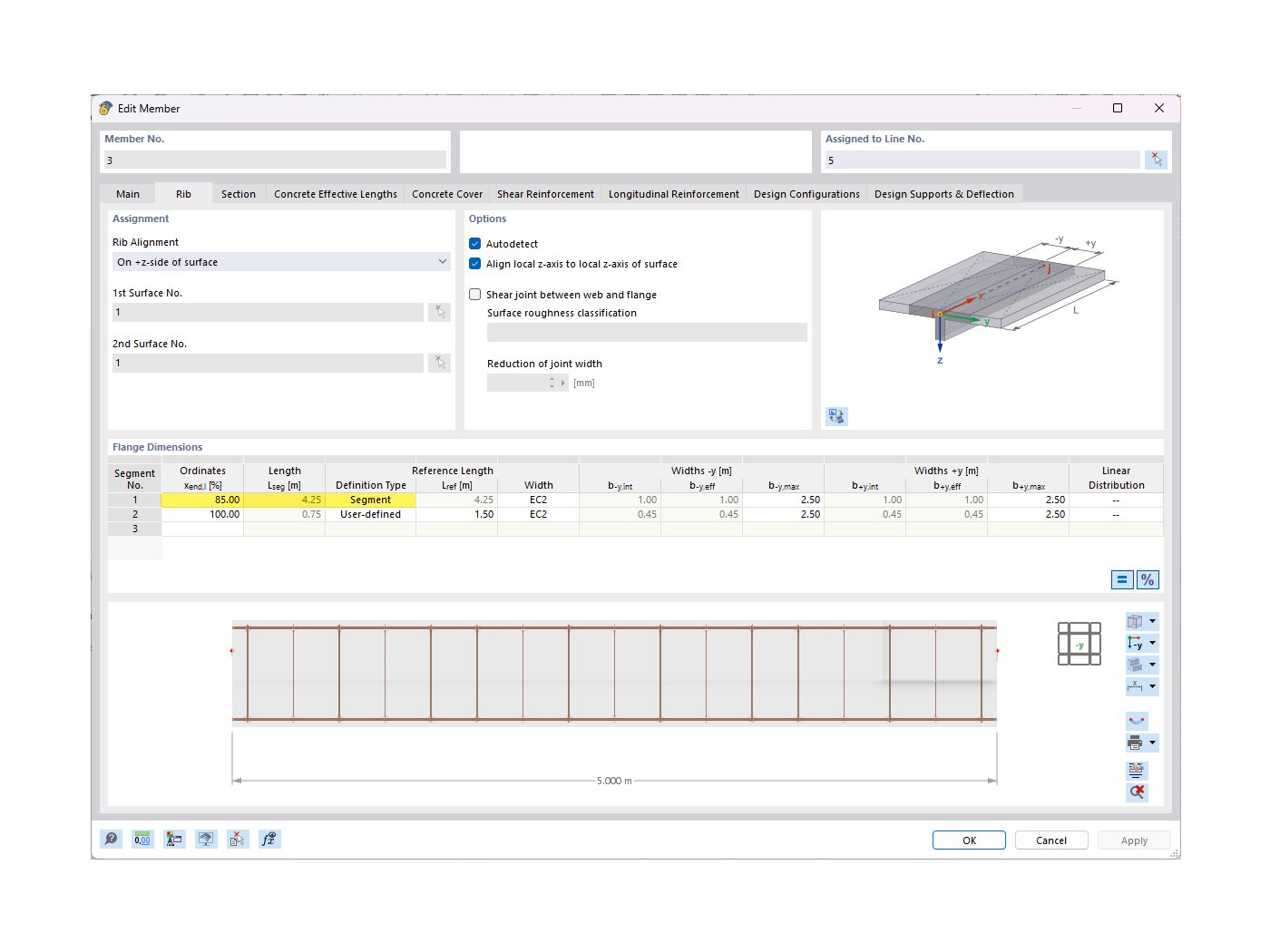

"Rib" Tab in "Edit Member" Dialog Box | First Segment of Edge Span
KB 001821 | Defining Rib Widths of Downstand Beams Using Example of Two-Span Beam
3D Model
Specifications
| Number of Nodes | 16 |
| Number of Lines | 13 |
| Number of Members | 5 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 205.750 tons |
| Dimensions (Metric) | 24,000 x 4,000 x 10,000 m |
| Dimensions (Imperial) | 78.74 x 13.12 x 32.81 feet |
