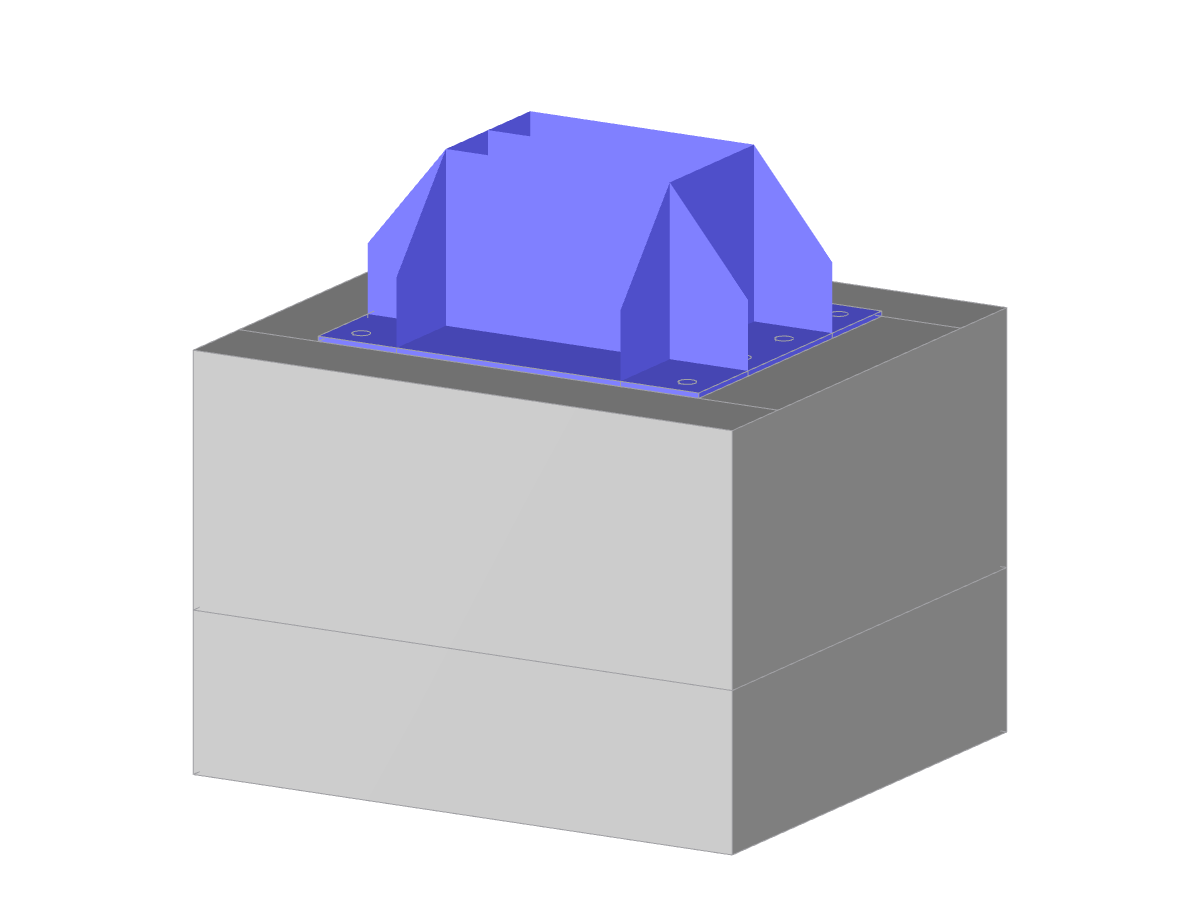

Model 004247 | Column - Base Plate - Foundation Connection
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 134 |
| Number of Lines | 133 |
| Number of Members | 8 |
| Number of Surfaces | 65 |
| Number of Solids | 3 |
| Total Weight | 7.636 tons |
| Dimensions (Metric) | 1.700 x 1.500 x 1.715 m |
| Dimensions (Imperial) | 5.58 x 4.92 x 5.63 feet |
| Program Version | 5.28.03 |
