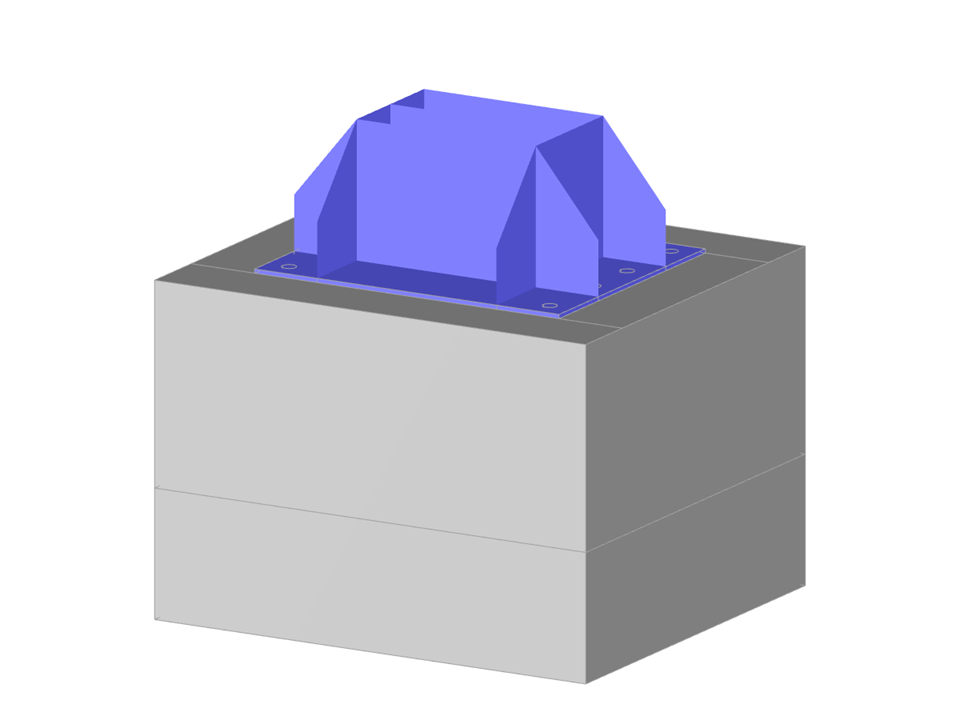

Parameterization of a I-column connection with its base plate, linked to the foundation block through eight anchor bolts. Refinement of mesh in line and surface.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Column – Base Plate – Foundation Connection
| Block parameters editable dynamically | |
| Number of Nodes | 134 |
| Number of Lines | 133 |
| Number of Members | 8 |
| Number of Surfaces | 65 |
| Number of Solids | 3 |
| Total Weight | 7.636 tons |
| Dimensions | 5.58 x 4.92 x 5.63 feet |
| Program Version | 5.28.03 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
