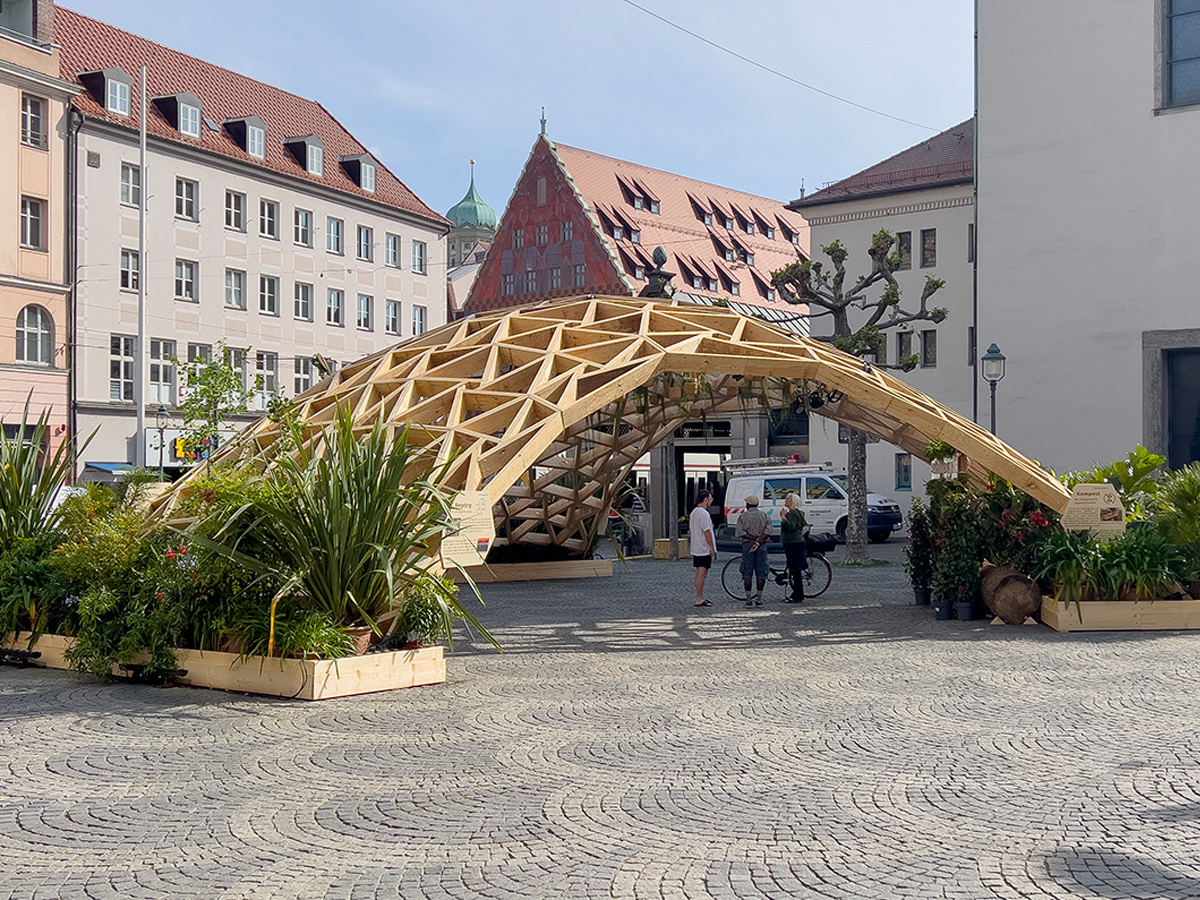

Timber Gridshell "Moritzplatz Demonstrator" in Augsburg, Germany | © Digital Timber Construction DTC, TH Augsburg
2024-05-30
042093
Preassembly of Wooden Element | © Digital Timber Construction DTC, TH Augsburg
2024-05-30
042094
Assembly of Timber Gridshell | © Digital Timber Construction DTC, TH Augsburg
2024-05-30
042095
Assembly of Timber Gridshell | © Digital Timber Construction DTC, TH Augsburg
2024-05-30
042096
Illuminated Structure | © Digital Timber Construction DTC, TH Augsburg
2024-05-30
042152
RFEM Model of Timber Gridshell | © Digital Timber Construction DTC, TH Augsburg
3D Model
Specifications
| Number of Nodes | 1509 |
| Number of Lines | 981 |
| Number of Members | 981 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.178 tons |
| Dimensions (Metric) | 13.295 x 4.345 x 14.681 m |
| Dimensions (Imperial) | 43.62 x 14.26 x 48.17 feet |
