Shear Force Reduction at Support

Feature 002642 | Shear Force Reduction

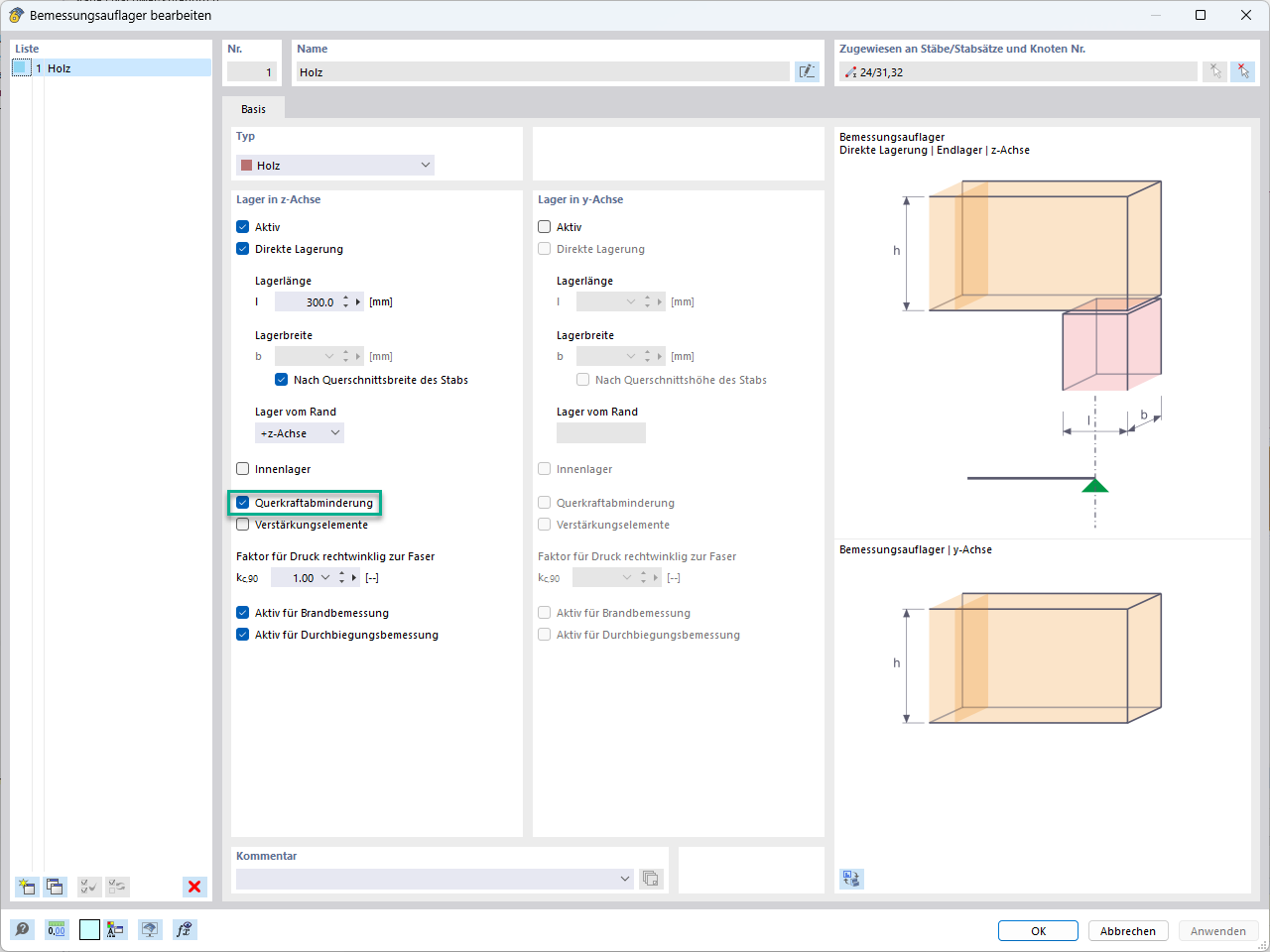

The image shows a technical display of the shear force reduction at a support in the structure. This method allows for simulating the governing shear force at the relevant distance of the beam cross-section. This supports the precise design of the shear strength of the structure.
